Description

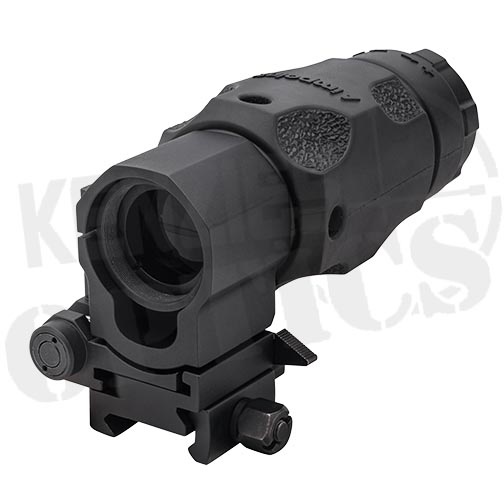

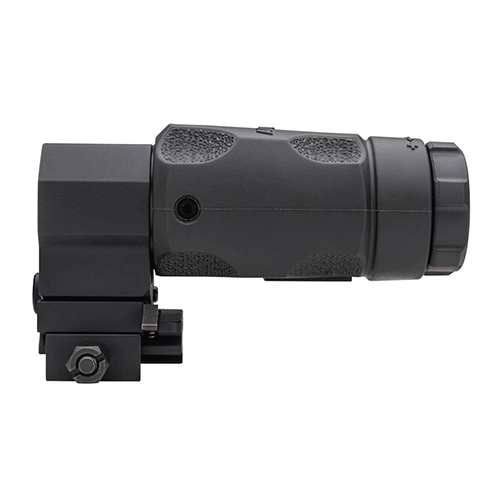

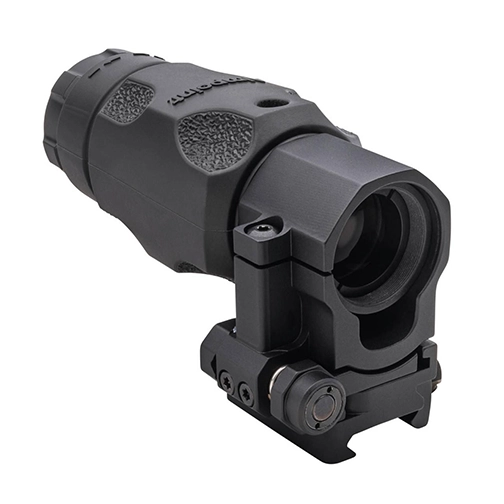

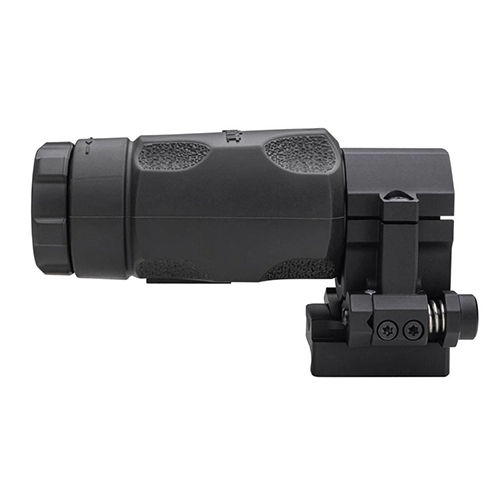

Aimpoint 3XMag-1 Magnifier

The Aimpoint 3XMag-1 Magnifier is a 3x power magnifier that was optimized for use with Aimpoint Micro T-2/H-2, Patrol Rifle Optic, CompM4 and CompM5. It provides a clear and crisp 2 MOA Dot under 3x magnification. Internal optical adjustments make aligning the magnifier and sight quick and easy.

The magnifier utilizes the red dot in Aimpoint sights as the aiming reticle, eliminating the need for re-zoning when shifting between non-magnified and magnified aiming. The 7 degree field of view (FOV) allows for a generous sight picture. A variable (-3 to +3) dioptric setting allows the magnifier to be adapted to the individuals eye.

The 3XMag-1 can also be used as a handheld monocular and the protective rubber cover provides the ideal ergonomic grip. It gives professional end users enhanced capability for long range aiming or observation with a crisp sight picture and a generous field of view.

Aimpoint 3XMag-1 Magnifier Features

3X optical magnification

Available with no mount or 39 mm FlipMount and TwistMount Base

Can also be used as a handheld 3X monocular

No re-zeroing needed when shifting between non-magnified and magnified aiming – utilizes the red dot in Aimpoint sights as the aiming reticle

Field of view (FOV): 7°

Eye relief: 70 mm

Uses: Home defense, law enforcement and sport shooting

Legendary Aimpoint ruggedness

3XMag-1 User Manual

FlipMount User Manual

Product Sheet


Specifications

Size L X W X H 113-120 x 56 x 69 mm

(4.4-4.7 x 2.2 x 2.7 in)

Maginfication 3x
Dioptric Adjustment -3.0 +3.0 D
Night Vision Device (NVD) Compatible Yes
Transmission Average 75% (photopic, integral transmission)
Eye Relief 70mm

(2.8 in)

Field of View (FOV)
Mounting Solution No Mount

FlipMount 39mm and TwistMount

Mounting Platform Picatinny
Weight (Sight Only) 8.1 oz
Housing Material Aluminum
Surface Finish Housing Protective Rubber Cover
Color Black
Tube Diameter 30mm

(1.2 in)

Height of Optical Axis 39 mm / 1.5 in measured from top surface of mounting platform
Submersible Up to 25 m/ 80 ft
Laser None
Radioactive Material None
Temperature Range Operation – 45°C to + 71°C / – 49°F to + 160°F
Temperature Range Storage – Operable after a temperature shock between – 45°C to + 71°C / – 49°F to + 160°F
Temperature Shock – Operable after temperature shock between – 40°C and + 55°C / – 40°F and + 131°F
Humidity – Operable during and after Humidity. Limits Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
Shock – Operable before and after shock. Limits Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction.
Vibration – Withstands vibration. Limits Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
