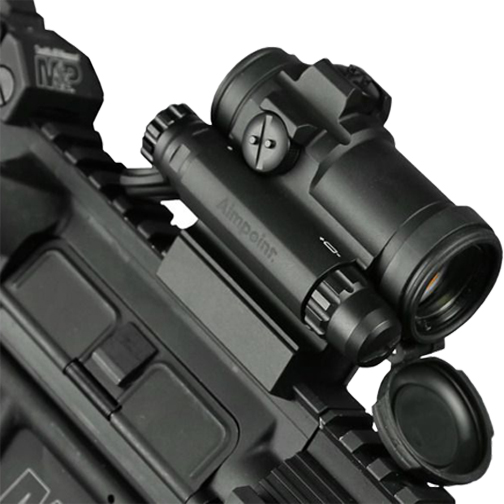

Aimpoint Comp M5S Micro Red Dot 2 MOA
The Aimpoint Comp M5s is a high performance red dot sight developed to withstand extremely tough handling and environmental situations without adding much weight to the user’s equipment. Aimpoint red dot sights are designed for the “both eyes open” method which greatly enhances situational awareness and target acquisition. Thanks to the optical design the red dot follows the movement of the user’s eye while remaining fixed on target, eliminating any need for centering. The CompM5s allows for unlimited eye relief and is compatible with Aimpoint 3XMag-1 and 6XMag-1 magnifiers as well as all generations of Night Vision Devices (NVD). The battery life for the CompM5s is over 5 years of continuous use while at the pos. 7, more than 1 year of use at pos. 8, and more than 10 years at NVD settings (pos. 1 to 4).
Aimpoint Comp M5S Features
Mountable on MIL-STD 1913 Rail system/Picatinny rail
Advanced optical lenses with a protective front window
Low, AAA battery compartment
Compatible with all generations of NVD
2 MOA dot for close combat and long distance engagement
Matches perfectly with Aimpoint 3XMag-1 and 6XMag-1 magnifiers
Excellent light transmission
Extremely robust housing design, same ruggedness as the CompM4 sights with less weight
Operable to a depth of 45 m (150 ft)
Mount base is keyed into to the body of the sight to absorb recoil
ACET technology allows 50,000 hours (over 5 years) of constant operation with one battery
4 NVD settings and 6 daylight settings
Mechanical switch for speed and reliability
Tested and complied for a range of MIL-STD 810G requirements
Aimpoint COMP M5s Manual »
Specifications |
|
| Operating principle | Reflex Collimator sight with LED |
| Optical magnification | 1x |
| Aiming dot size | 2 MOA |
| Dot intensity | Visible against a background luminance of 0,1 to 55 000 lx |
| Optical signature | No optical signature is visible at 10 meter distance, front side, on appropriate settings with NVD |
| NVD compatible | Yes |
| Optical coating | Anti-reflex |
| Clear aperture | 18 mm |
| Eye relief | Unlimited |
| Battery type | One AAA size 1.5 V Alkaline LR03 or Lithium FR03 |
| Battery life | Up to 50,000 hr |
| Power intensity | 4 NVD and 6 Daylight |
| Housing material | High Strength Aluminum |
| Housing anodized | Yes |
| Material mount and spacer | High Strength Aluminum |
| Surface treatment | Hard anodized, matte |
| Temperature range operation | -49 °F to +160 °F |
| Temperature range storage | -60°F to +160°F |
| Submersible | 150 ft |
| Length sight only | 3.3 in |
| Length conf | 3.3 in |
| Width sight only | 1.6 in |
| Height sight only | 1.9 in |
| Height conf | 2.6 in |
| Weight sight only | 5.8 oz |
| Weight | 8.3 oz |
