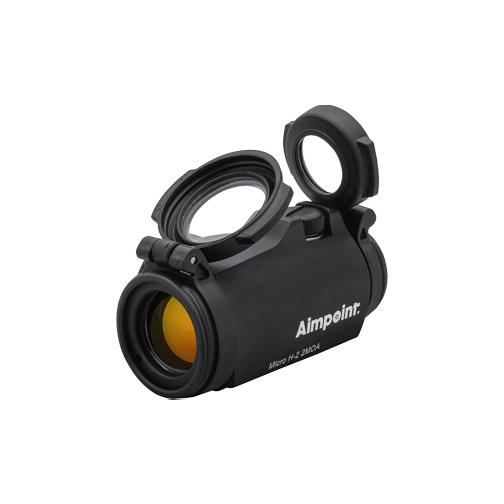

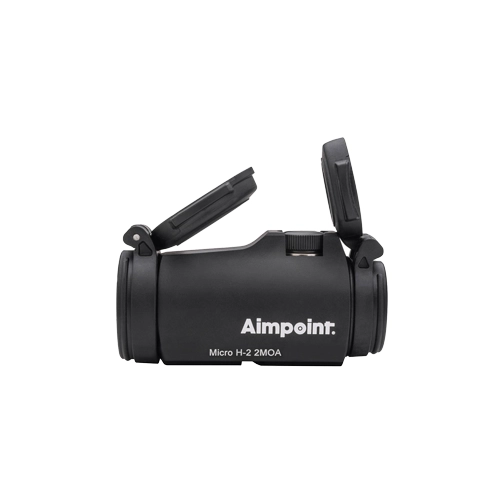

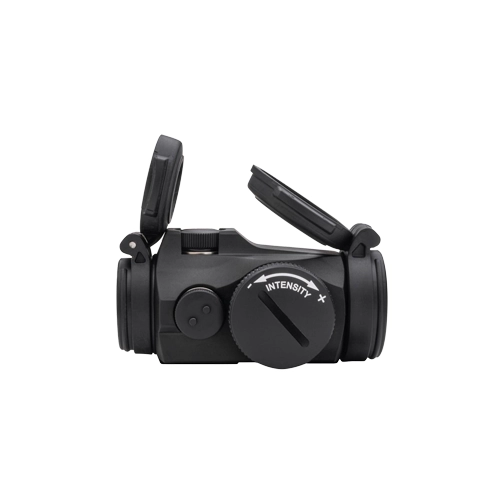

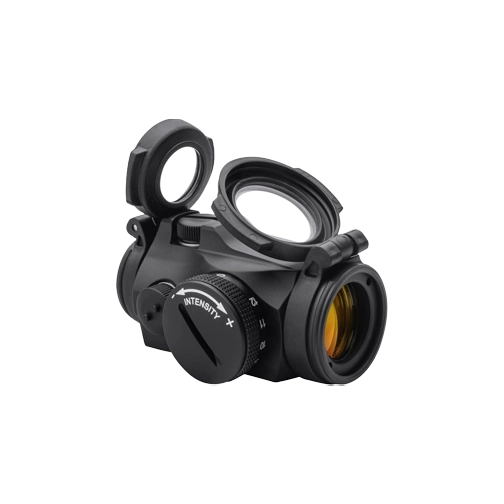

Aimpoint H2 Micro Red Dot Sight – No Mount
The Aimpoint H2 Micro is a top choice for speed and accuracy in a compact reflex optic, and it is trusted by millions of hunters and sport shooters worldwide. With mounting solutions for virtually any platform, the versatile Micro H-2 is truly a sight for all seasons. This premium optic features a precise 2 MOA dot for extremely quick and accurate target acquisition and 12 intensity settings for optimal brightness under any light conditions. Built to handle heavy recoil and to perform under the harshest environmental elements, this ruggedized red dot sight features an anodized aluminum alloy housing, recessed lenses, and flip covers for ultimate protection. The superior optical performance of the Micro H-2 makes this sight ideal for use with magnifiers such as the Aimpoint® 3X-C, 3XMag-1 and 6XMag-1. With a battery life of over five years of constant-on use, you can count on the Micro H-2 to be ready when you are.This configuration comes with no mount.
Aimpoint H2 Features
2 MOA red dot for precision and fast target acquisition
Battery life 50,000 hours (over 5 years) of constant operation on a single battery
Battery type: CR2032 (included)
No mount included
Advanced optical lenses for enhanced light transmission and ultimate dot clarity
Front and rear transparent lens caps included
Compatible with all Aimpoint Magnifiers
Reinforced turret protection for even greater ruggedness
Anodized high strength aluminum housing, semi-matte black
12 position intensity settings: 1 extra intense for use in bright sunlight environments
1X (non-magnifying) operationally parallax free optic
Submersible to 15 Feet (5 meters)
Temperature range -20°F to +140°F (-30°C to +60°C)
Weight 3.3 oz / 94g (sight only), 4.6 oz / 130g (including lens covers and mount)
Specifications |
||||||
| Operating Principle Reflex collimator sight | Red Dot Sight | |||||
| Dot Size | 2 MOA | |||||
| Magnification | 1X – No Magnification | |||||
| Night Vision Device (NVD) Compatible | No | |||||
| Transmission | Average 60% in the range 420 – 700 nm | |||||
| Eye Relief | Unlimited | |||||
| Diode | LED (Light Emitting Diode) totally eye safe | |||||
| Dot Color | Red | |||||
| Dot Intensity | Visible against a background luminance of 0.1 to 55 000 lx | |||||
| Light Source Wavelength | 650 nm red light | |||||
| Optical Coating | Anti-reflex coating all surfaces and multilayer coating objective lens | |||||
| Clear Aperature | 18 mm / 0.7 in | |||||
| Parallax | Parallax free – No centering required | |||||
| Battery Life | 50,000 h at daylight setting 8 (room temperature) | |||||
| Battery Type | CR2032, 3V, Lithium | |||||
| Power Switch | Rotary Switch | |||||
| Daylight (DL) Settings | 12 | |||||
| Size L x W x H (mm) | 88 x 0 x 47 mm (3.5 x 0 x 1.9 in) | |||||
| Weight (g) | 243 g (8.6 oz) | |||||
| Material Housing and Tube | High Strength Aluminum | |||||
| Surface Finish Housing | Anodized, Semi-Matte | |||||
| Color Housing | Black | |||||
| Lens Covers | Flip-up Lens Covers, Transparent | |||||
| Material Lens Covers | Thermoplastic Elastomer (TPE) | |||||
| Material Mounting Solution | Steel | |||||
| Adjustment | 1 Click= 13 mm at 100 m / 0.5 in at 100 yds | |||||
| Submersible | 5 m/ 15 ft | |||||
| Laser | No Laser Emission | |||||
| Radioactive Material | None | |||||
| Temperature Range Operation | – 30°C to + 60°C / – 20°F to + 140°F | |||||
| Temperature Range Storage – Operable after a temperature shock between | – 51°C to + 71°C / – 60°F to + 160°F | |||||
| Temperature Shock Operable after a temperature shock between | – 30°C and + 60°C / – 22°F and + 140°F | |||||
| Mounting Solution | No Mount | |||||
| Mounting Platform | Weaver /Picatinny Rail | |||||
| Torque – Mount to Sight | 1.35 Nm / 1.0 ft·lb (Torx T10) | |||||
Export is strictly prohibited without a valid export license issued by the U.S. Department of State, Office of Defense Trade Controls, prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulations, Parts 120-130.
