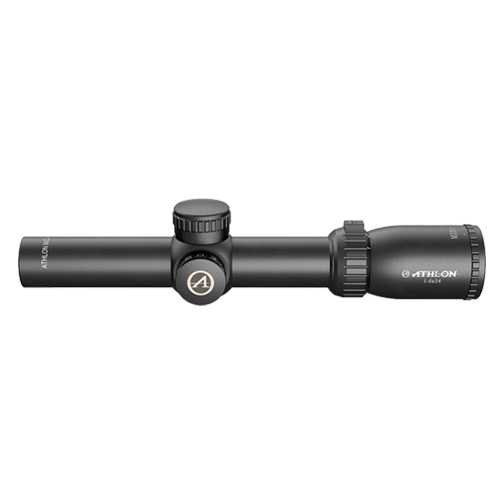

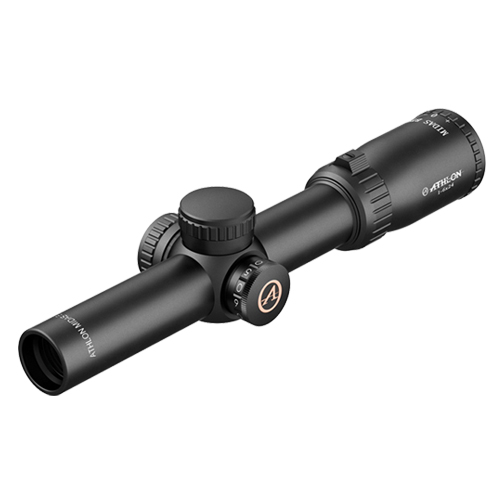

Athlon Midas BTR GEN2 1-6×24 Riflescope

This Athlon Midas BTR GEN2 1-6×24 Riflescope is equipped with ATSR4 reticle that is specifically designed for 3 gun competition. With hold over points for both bullet drop and wind compensation, using a Nato 5.56/.223 caliber rifle (68 grain hornady and 69 grain sierra cartridges). The low profile capped turrets will ensure you stay zeroed.  The 1.4 moa center red dot is perfect for zeroing your rifle at 200 yards. You can use the dots below the center red dot for targets at 300, 400, 500, and 600 yards. The unique design of the small size dots eliminate target obstruction on 12~18 inch targets beyond 200 yards and allow the shooter to take a quick shot. The dots on the left and right off the center line are the hold over points for 5 mph and 10 mph wind.

Athlon Midas BTR GEN2 1-6×24 Riflescope Features

HD Glass

HD Glass gives you better light transmission, brighter, and sharper image.

Illuminated Reticle

The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment.

Etched Glass Reticle

Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil

Advanced Fully Multicoated

Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses

XPL Coating

XPL Coating gives you an extra protection on the exterior lenses from dirt, oil and scratches or anything else mother nature can throw at you.

High Precision Erector System

The high precision erector system processed by high precision CNC machine with +/- 0.0001mm tolerance level to provide you the most  accurate power settings and smoothest magnification change

6061 T6 Aluminum

The 6061T6 aircraft grade aluminum tube that has exceptional strength and superior mechanical integrity will protect these world class optics no matter what punishment you throw at it.

Heat Treated One Piece Tube Construction

Heat treated one piece tube gives the scope extra strength over multi-piece tubes.  A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product

Waterproof

Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater

Fog proof

Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature  from warm inside

Shockproof

Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.

Argon Purged

Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of  the tube giving you better waterproofing and thermal stability.


Specifications

Magnification 1-6
Objective Lens Diameter 24 mm
Reticle ATSR4 or ATSR16
Surface Finish Matte
Lens Coating Advanced Fully Multi coated
Extra Coating Xtra Protective Coating
Tube Material 6061 Aluminium
Tube Diameter 30 mm
Exit Pupil 12.5- 4 mm
Eye Relief 3.8″
Field of View @100 yards 108-17.6 ft
Click Value 0.5 MOA
Adjustment range per rotation 50 MOA or 30 MOA
Total Elevation Adjustment 120 MOA or 150 MOA
Total Windage Adjustment 120 MOA or 150 MOA
Turret Style Capped
Parallax Adjustment Fixed
Purging Material Argon
Length 10.6″
Weight 18.1 oz
