Description

EOTech EXPS2-2

The EOTech EXPS2-2 offers true 2 eyes open shooting and provides an unparalleled targeting experience.  The all-purpose EXPS2 features easy-to-adjust side buttons and a quick detach lever. It has a transversely-mounted lithium 123 battery. The increased height of the EXPS gives iron sight co-witness access in the lower third of the viewing window. Whether you’re using the sight for law enforcement or hunting, the EXPS series sights are the premier optics in the line.

EOTech EXPS2 Features

65 MOA Ring with 2 1MOA Dots

Heads Up Display

No Revealing Light Signature

For Product Registration click here.

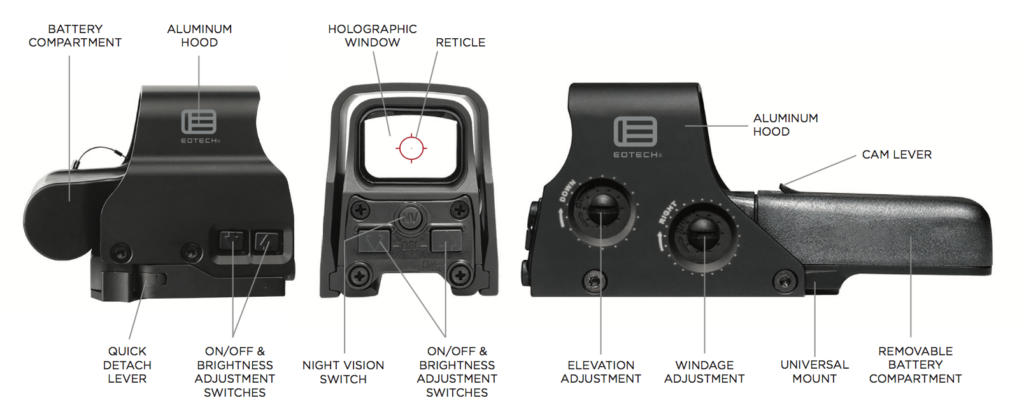

HWS Performance Characteristics

For Most Models



Reticle Options

EOTech’s unique reticle patterns are critical to delivering fast target acquisition and MOA accuracy at any range. EOTECH reticles feature a 68 MOA ring surrounding a 1 MOA center dot allowing the shooter to quickly pick up and lock on a target.

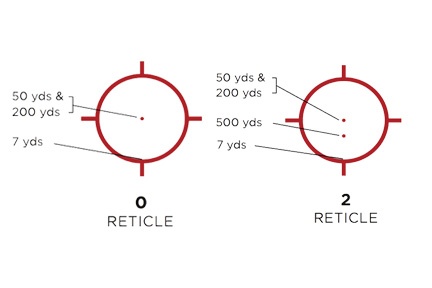

EOTech’s most popular reticle offered, the 68 MOA ring with 1 MOA dot provides three usable aiming points. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel.

 When using other loads and calibers, the operator will have to establish the ranges associated with the aiming points. When using a shotgun, the 68 MOA ring can be used to represent shot patterns but will vary based on choke and shell selection. For ordering this reticle, the model codes will end in -0.

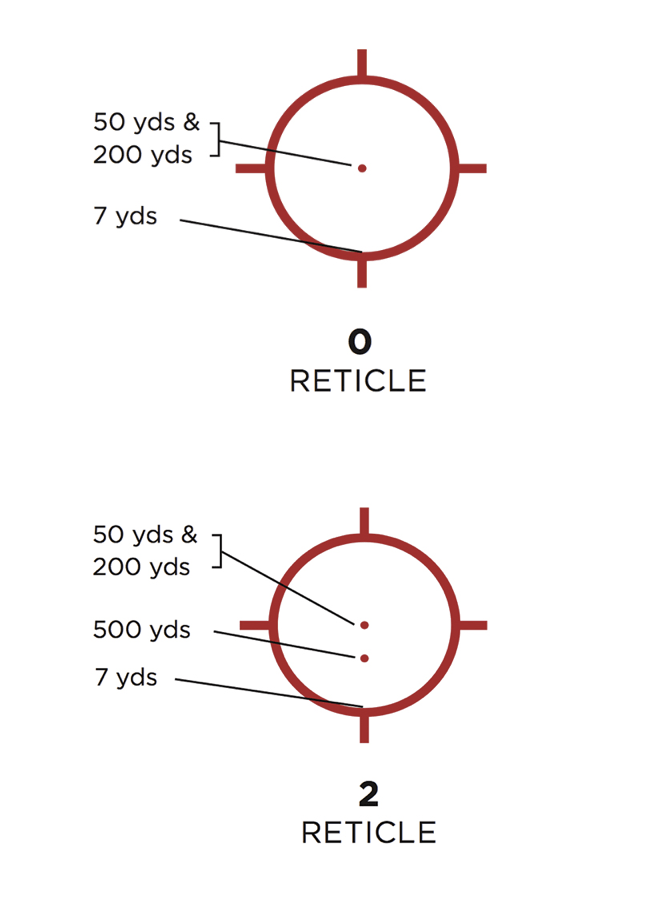

EOTech’s  two dot reticle pattern can be easily distinguished with or without magnification and offers the benefit of an additional long range, aiming dot. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 FPS. For ordering this reticle, the model codes end in -2.

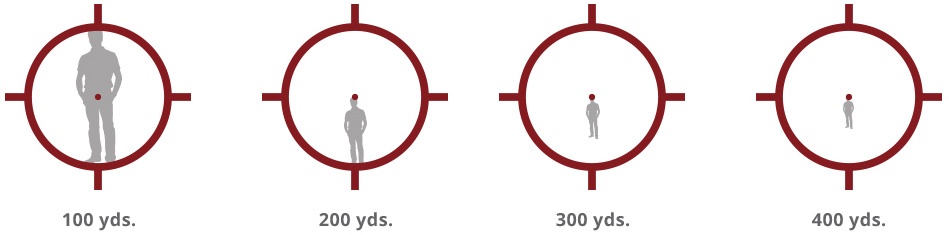

Range Estimation with Unmagnified HWS

The standard ring found in most reticles equates to approximately 68″ (5’8″) at 100 yards.

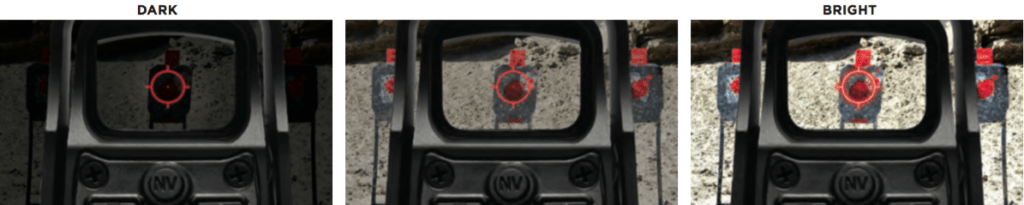

Brightness Options

For quick adjustability in any shooting situation, the EXPS2 HWS offers multiple brightness settings in standard operating mode.





Versatility with Other Weapon Platforms

With its advanced holographic technology, the HWS-2-dot reticle solves a number of fire control issues for a host of applications and weapon platforms.


Specifications

Night Vision No
Optics Holographic
Magnification 1 x
Eye Relief Unlimited
Dimensions 3.8” x 2.3” x 2.9”
Weight 11.2 oz
Water Resistant Up to 33 ft
Sealing Fog resistant
Color or Finish Non reflective black
Adjustment (per click) .5 MOA at 100 yds
Travel Range +/- 40 MOA
Mount 1”  weaver/1913 rail
Power Source 1 CR123 Lithium
Battery Life 600 hrs

Controlled under Export Administration Regulations (EAR); will not be exported without proper authorization by the U.S. Department of Commerce.
L-3 EOTech reserves the right to change the product specifications at any time without notice.
