EOTech HHS VI Complete System Red Dot Sight

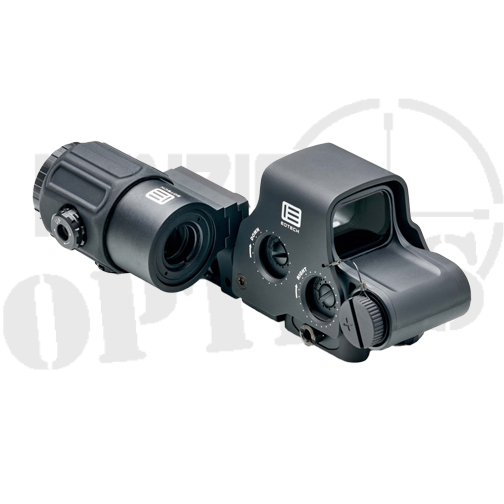

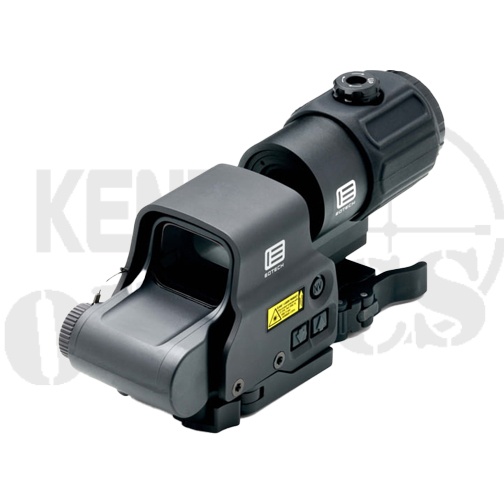

The EOTech HHS VI is a complete red dot system that features an EXPS3-2 Holographic Sight, G43 magnifier and a QD switch to side mount. The complete system delivers maximum versatility on targets at close to medium range. Regardless of the scenario, HHS VI can provide accurate use at any distance. The night vision compatible EXPS and compact G43 3x magnifier require very little rail space but provide significant advantages.
EXPS3-2 Holographic Sight
The EXPS3-2 offers true both eyes open shooting for faster target acquisition and a 7mm raised quick detach base for lower 1/3 iron sight co-witness. It features 20 daytime illumination levels, and 10 night vision settings. It is calibrated for 62 grain .223 rounds, the circle 2 dot reticle features a 68 MOA ring with a pair of 1 MOA dot in the center.

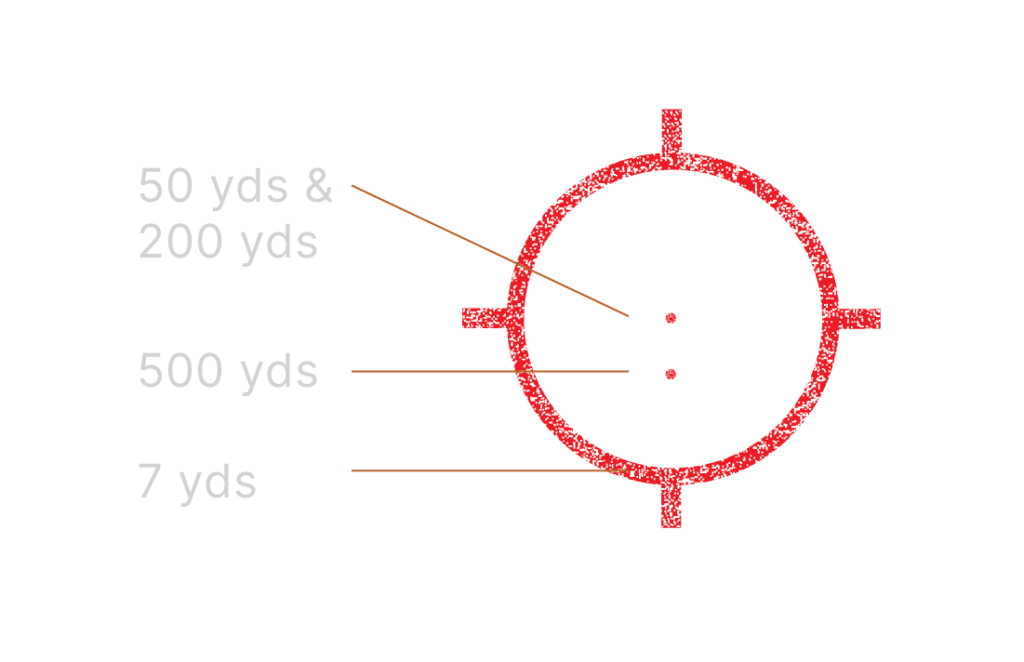

Two Dot Reticle
EOTECH’s unique reticle pattern is critical to delivering fast target acquisition and MOA accuracy at any range. The reticle features a 68 MOA ring surrounding a 1 MOA center dot allowing the shooter to quickly pick up and lock on a target. The two dot reticle pattern can be easily distinguished with or without magnification and offers the benefit of an additional long range, aiming dot. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel.
G43 Magnifier
When the users have targets at longer ranges, they can switch to the G43 magnifier. The G43 takes much of its design from the battle tested G33, offering the same high performance in a smaller, lighter, package. When not in use, the G43 folds off to the side to allow the operator to use the EXPS3-2 for close range targets. The G43 can be instantly deployed to provide an additional 3x of magnification The mount provides fast transitioning from 3X to 1X and comes with a 7mm spacer to properly adapt to any HWS model.
EOTech HHS VI Features
Includes EXPS3-2 and G43 magnifier
Two Dot reticle optimized for 62 grain .223 rounds
G43 magnifier instantly deploys for additional 3x of magnifcation
Included
HHS VI (EXPS3-2 & G43.STS)
Quick Start Guide
Warranty & Registration Card
CR123 Battery
Protective Case
Specifications |
||||||
| L x W x H | 6.9″ x 2.3″ x 3.3″
(175.2 x 58.4 x 83.8 mm) |
|||||
| Weight | 23.1oz
(654.8g) |
|||||
| Water Resistant | 33ft.
(10 m) |
|||||
| Mount | 1″ Weaver or MIL-STD-1913 rail | |||||
| Windage & Elevation Adjustment | 0.5 MOA per click | |||||
| Brightness | 20 daylight settings
10 additional settings for Gen I through III+ night vision devices |
|||||
| Power Source | 1 x CR123 battery | |||||
| Battery Life | 1,000 continuous hours at nominal setting 12 at room temperature | |||||
| Fixed Magnification | 3X | |||||
| Eye Relief | 2.5″
(63.5mm) |
|||||
| Field of View w/ Magnifier | 7.5° | |||||
| Sealing | Fog resistant internal optics | |||||
| Country of Origin | HWS: Made in USA
G43: Assembled in USA |
|||||
