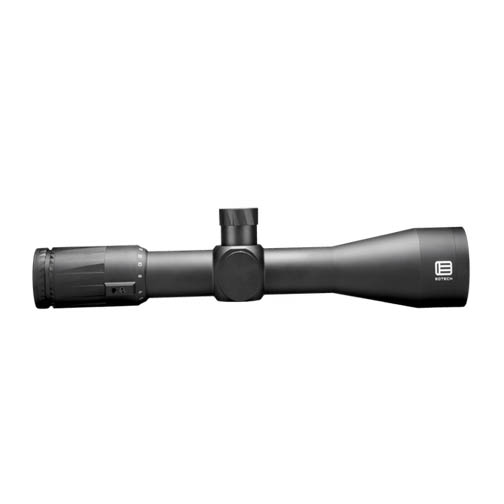

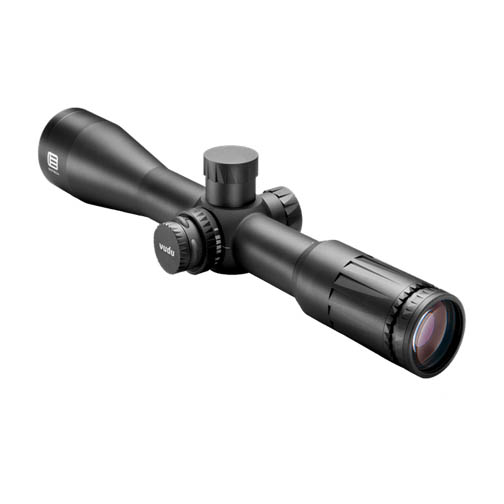

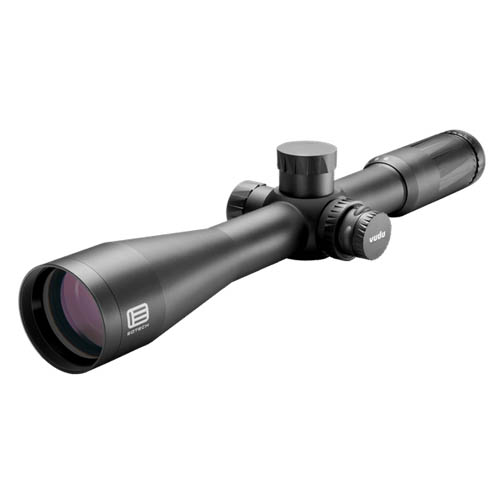

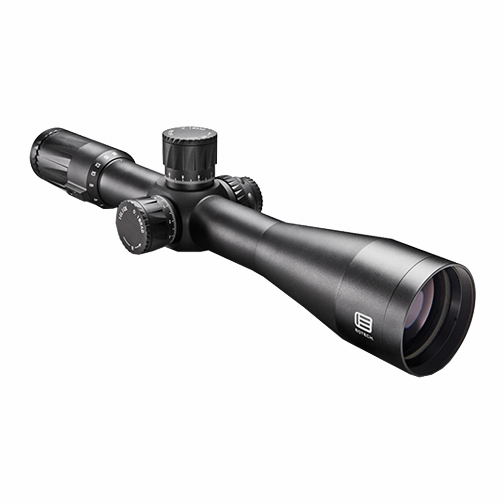

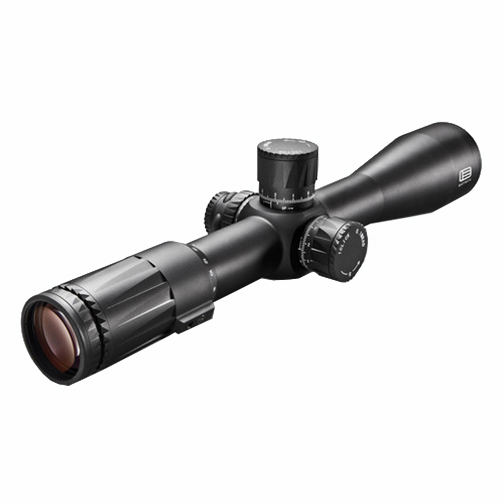

EOTech Vudu 3.5-18x50mm FFP Precision Scope
The EOTech Vudu 3.5-18x50mm FFP Precision Scope provides a robust 34 mm tube, XC High Density glass, and is loaded with other performance features required to take that precise long range shot. The oversized and precision machined turrets, with EZ Chek zero stop feature, let you quickly dial adjustments and return to zero, even in low light conditions. The side mounted parallax adjustment allows you to dial the reticle focus in for the most difficult long range shots.

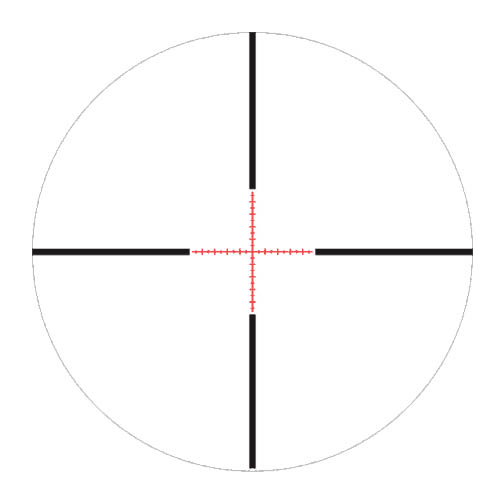

MD2 Reticle
The MD2 is a first focal plane MOA based hashmark reticle that provides ranging, holdover and wind compensation in a very clean sight picture. The entire crosshair is illuminated for excellent low light visibility. MD2 is an excellent all purpose reticle for the shooter who prefers MOA based sub-tensions.
Adjustment Graduation Per Click: 0.25 MOA
Adjustment Graduation Per Rotation: 25 MOA
Total Elevation Travel: 100 MOA
Total Windage Travel: 80 MOA
Horus H59 Reticle
The MRAD-based H59 reticle features the popular horizontal and vertical grid pattern that allows for built-in range-finding, holdovers and wind compensation to maximize extreme-range precision. The windage tree is also perfect for quick follow-up corrections.
Adjustment Graduation Per Click: 0.1 MRAD
Adjustment Graduation Per Rotation: 10 MRAD
Total Elevation Travel: 29 MRAD
Total Windage Travel: 23 MRAD
Specifications
| Magnification | 3.5-18x |
| Objective Lens | 50mm |
| Focal Plane | First Focal Plane |
| Eye Relief | 3.5x: 91-101mm18x: 90-101mm |
| Exit Pupil | 3.5x: 11.2mm18x: 2.8mm |
| Field Of View (Degrees) | 3.5x: 5.6 degrees18x: 1.1 degrees |
| Field Of View (@100 Yards) | 3.5x: 29.5 ft18x: 5.7 ft |
| Exterior Finish | Flat Black; Type III anodized |
| Illumination Controls | Push Buttons |
| Lens Coating | Anti-reflection coating |
| Windage and Elevation Increment Per Click | MD1, H59 Models: Approx. 0.1 MRADMD2 Model: Approx. 0.25 MOA |
| Total Elevation Adjustment | ± 14.5 min MRAD or ± 50 MOA |
| Total Windage Adjustment | ± 11.5 min MRAD or ± 40 MOA |
| Battery Type | CR2032 |
| Auto Power Shut-Off, Time | Approx. 2 hrs |
| Battery Life | Approx. 500 hrs |
| Overall Length | 377 mm(14.84 in) |
| Weight | 33.6 oz(952 gr) |
| Tube Diameter | 34mm |
Features

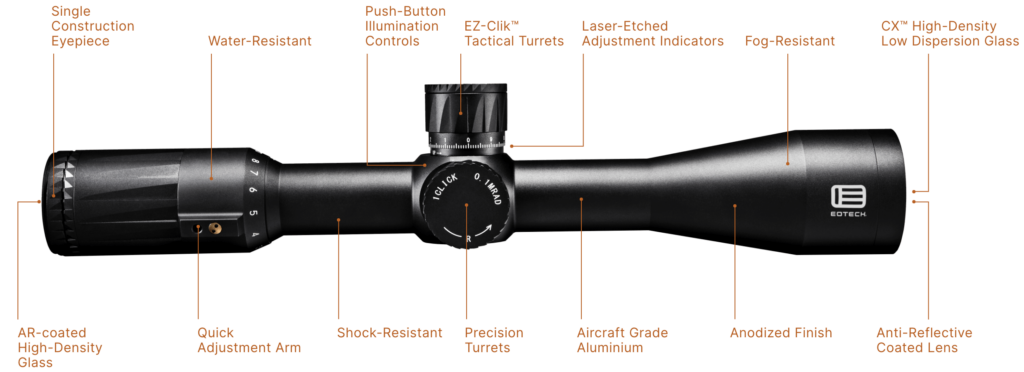

EoTech Vudu 3.5-18x50mm Features
- Aircraft Grade
- Aircraft grade aluminum, single piece construction with anodized finish for extreme durability. Laser etched adjustment indicators and push button illumination controls for tracking east. Water resistant, fog resistant, shock resistant with single construction eyepiece.
- Fog Resistant
- Nitrogen gas purging prevents internal fogging over the operating temperature range.
- Shock Resistant
- The rugged design prevents damage from heavy recoil and rough handling.
- Water Resistant
- The single piece tube and o-ring seals prevents moisture and dust from entering the scope even in the harshest environment.
- Anti-Reflective Lenses
- XC high density, low dispersion glass with anti reflective coated lenses provides efficient light transmission and unmatched edge to edge clarity. Water resistant, fog resistant, shock resistant with single construction eyepiece.
