Fusion Thermal Boarmaster 40E (Enhanced) Thermal Imaging Riflescope


Only 1 left in stock

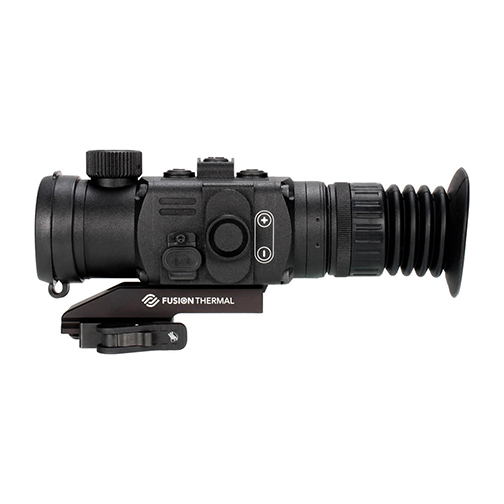

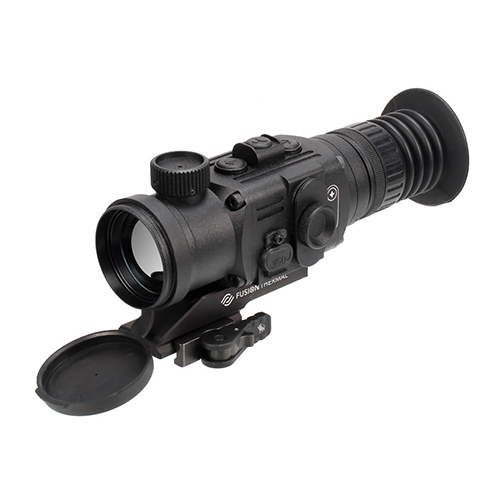

Fusion Thermal Boarmaster 40E (Enhanced) Thermal Imaging Riflescope

The Fusion Thermal Boarmaster 40E (Enhanced) features Fusion Thermal WAVE12 (12-Micron) thermal sensor for a higher level of performance that’s sure to please even the most demanding operators. Immediately you’ll notice a serious uptick in target resolution so expect to see things in an entirely different way. It also features a higher 3x optical magnification which many believe to be the perfect balance between target resolution and field of view. You’re going to notice that your detection range just got a lot longer too up by a 27%, now 1900 yards.

However, everything else is the same as Fusion Thermal held true to the Boarmaster build philosophy of keeping things simple and your wallet happy. Expect top shelf performance and rock solid durability as all Fusion Thermal benchmark technology is there, including their Arclight Ultra HD Germanium Lens, WAVE12 Thermal Sensor, Micro Click Focus, XGEN Armored Housing, T3 – three button control system, and Fusion Thermal’s exclusive KISS (keep it simple stupid) operator’s menu, the menu that’s so easy to operate you might never read the instructions.

Fusion Thermal Technology

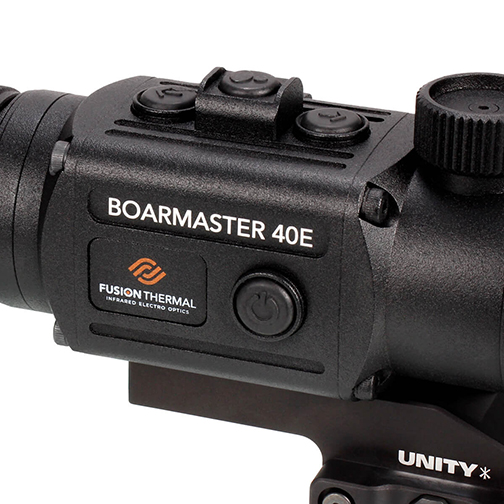

T3 Control System – Your Fingers Won’t Get Lost in the Dark

The only thing cooler then the way Fusion Thermal T3 – Three Button Control System looks is how easy it is to use. Highly intuitive three button design with its center tower makes using your thermal scope simple and easy. Every command you need is right at your fingertips, and the Center Tower evenly splits the button control panel, so you always know where your fingers are. Fusion Thermal thought this a particularly good thing since you’ll be using it in the dark most of the time. Besides simpler is better, and the T3, well it’s as easy as 1-2-3.

KISS (Keep It Simple Stupid) Menu – You Might Never Read the Manual

You know the phrase, Keep It Simple Stupid, and at Fusion Thermal it’s the reason they can make the industries boldest statement: Fusion Thermal’s operating menu is so easy to use you’ll likely never read the instructions. With instructions that are written for Americans by Americans.

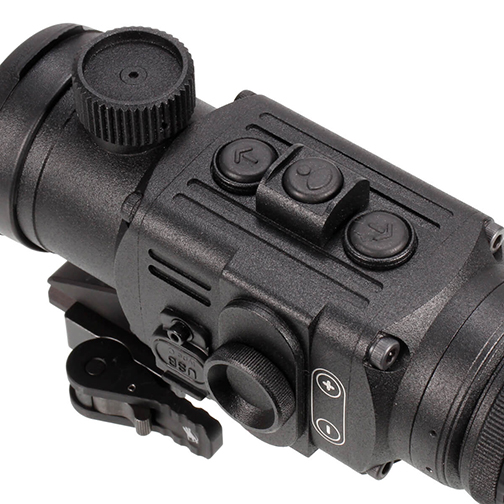

Micro Click Focus – Forget the Dog Collar

Getting your target into focus quickly and easily is a must, and you won’t find a better system than Fusion Thermal’s Micro Click Focus. The tall tactile focus knob is conveniently located on top of the front lens assembly so it’s easy to reach and easy to find, even in complete darkness. This is critical if you want to keep your eye in the scope and on target, and unlike the dog collar design used by most, you won’t need to perform a circus act or trash your shoulder just to focus your scope. Plus, you’ll always get your best shot as the micro click adjustments put you exactly on top of the perfect focus point every time.

XGEN Alloy Housing – Plastic is for toys. Metal is for tools.

It’s a fact, operational heat is the enemy of all thermal devices, and if your thermal can’t get rid of the heat it generates your image quality will suffer. Worse yet is the long-term damage this heat will cause to everything in the device. Your thermal was expensive, and you’ve got to get the heat out to keep it operating properly. This is why Fusion Thermal never use plastic or other polymer housings. Plastics and polymers are insulators and aluminum alloys are conductors, one traps heat, and one gets rid of it. It’s that simple. XGEN (Next Generation Alloy Body) shields your expensive investment in a clad of armor, and Fusion Thermal high-end 6082 Structural Aluminum Alloy displaces heat 71,900% better than plastic*.

*Source Thermal Conductivity Coefficients: Plastic & Epoxy Glass Fiber W/(m-K) = 0.25 max as compared to AL 6082 Aluminum W/(m-K) = 180

WAVE Sensor Technology – Spend Less, Get More

Fusion Thermal’s WAVE sensor technology sets the standard for the industry, and delivers performance that consistently exceeds expectations. The WAVE, Wavelength Area Variation Expansion, is a technology born from Fusion Thermal obsession about thermal technology, and why they live by the slogan Perfecting the Vision of Heat. Every single pixel on a WAVE sensor is carefully optimized to increase its temperature variation uniformity and sensitivity. This results in an increasingly more precise electrical signal being sent to the display, and why you’ll discover a visual experience that you simply were not expecting.

 Arclight Ultra HD Germanium Lens – Seeing is Believing

The single most expensive and important component of a thermal optic is its germanium objective lens. If you go cheap here it doesn’t matter how good the rest of your components are, the unit will never perform to potential. Arclight Ultra HD Germanium Lenses are not cheap, but they are key to making everything else perform exceptionally well. The purity of the Arclight Lens pushes the limits of technology and perfects the task of funneling infrared rays into the thermal sensor unhindered by distortion. This infrared energy dump unleashes the full potential of Fusion Thermal supercharged WAVE sensor. The resulting image quality is exactly as expected, perfection!

Fusion Thermal Premium QD Mount – FAST & Secure

To anchor the Boarmaster to your rig Fusion Thermal teamed up with defense contractor UNITY Tactical to offer what Fusion Thermal think is the most stable and versatile thermal scope mount on the market. The unique riser features the interface for the UNITY FAST Offset Mount Base. This platform gives the operator the option to easily connect a reflex red dot directly to the mount riser. To complete the package Fusion Thermal wanted an attachment system that had a proven track record of durability and precise return to zero, so Fusion Thermal decided on none other than ADM.


T3 – Three Button Control System

KISS (Keep It Simple Stupid) Operating Menu

WAVE12 – 384×288 Premium 12-Micron Thermal Sensor

Arclight – 40mm Ultra HD Objective Lens

XGEN – Next Generation Alloy Housing

Huge Field-of-View – Perfect for Scattering Hogs

Micro Click Focus – Fast Click-by-Click Precision Focus

Blazing Fast 5 Second Start-Up Time

Premium QD Tactical Scope Mount

Five Year Transferable Warranty

Made in the European Union

Quick Start Guide

Spec Sheet

FAST Offset Mount Instructions

QD Mount Adjustment Instructions



Thermal Sensor 384 x 288, VOx Uncooled (WAVE12)
Sensor Pixel Size 12 micron
Objective Lens Diameter 40 mm (Arclight)
Frame Refresh Rate 50 Hz
Field-of-View 360′ at 1000 yards (3.0x optical magnification)
Base Level Magnification 3.0x (before any digital zoom)
Digital Magnification 6x & 12x (2-step digital zoom)
Display Type/Resolution Super HD OLED RGBW / 3.2 Million Dots
Color Palette Modes 4 (white hot, black hot, red hot, rainbow)
Reticle Design Options 7 (plus a “no reticle” 8th option)
Reticle Color Options 5 (white, black, red, green, blue)
Multiple Gun Profiles yes (save up to 5 different zeros)
Detection Range Up to 1900 Yards
Recognition & Identification Range none published (see below)*
Start-Up Time/Cold Start 5 Seconds (logo appearance to functional use)
Start-Up Time/Power Saver Mode Instant (button press to functional use)
Auto Shutdown Battery Saver yes (30 min. turn off with no use)
On Board Video Record no
Video Output no
WIFI Equipped no
Battery Type CR123A 3V Batteries or 3.7V  Rechargeable (2x)
Expected Battery Life 4 hours (typical operation)
External Power Supply Capable yes (via USB-C port)
Recoil Rating 300 Win Mag
Operating Temp Range -22F to +122F (-30C to +50C)
Nitrogen Purged Yes
Front Lens Housing Outside Diameter 49.7mm
Length 6.5″ (housing front to housing back)
Weight 18.3 oz. (without mount or batteries)


ITAR Control Statement

This product is subject to the International Traffic in Arms Regulations (ITAR). You many not export, re-export, resell, transfer or otherwise dispose of this product to any other country without first obtaining approval from the U.S. Department of State, Directorate of Defense Trade in accordance with the ITAR, Title 22, and Code of Federal Regulations Part 120-130. Diversion contrary to U.S. law is prohibited. View our Export Policy
