InfiRay Outdoor Mini MH25 V2 Thermal Monocular
The InfiRay Outdoor Mini MH25 V2 is a thermal monocular that was designed to be compact and lightweight, and is designed for handheld and helmet mounted use. Its unique design allows for seamless operation as a handheld monocular, and it can easily transition to a helmet mount for hands free use. The MH25 V2 is powered by a 50Hz 12μm sensor and features next generation MATRIX III AMOLED display, an upgraded eyepiece, and onboard video and audio recording.

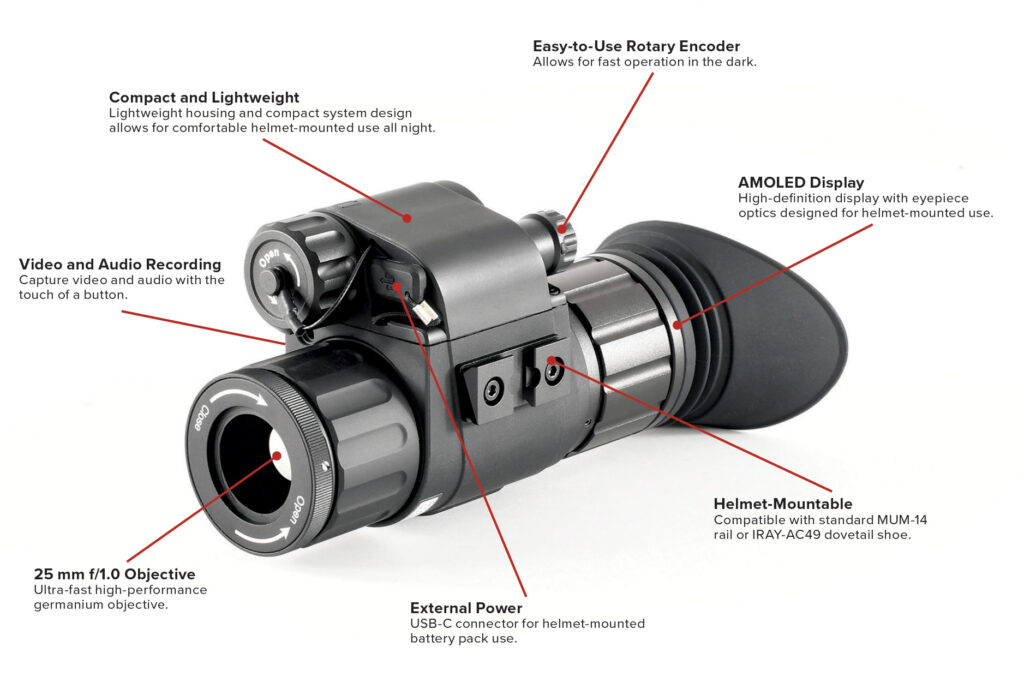

InfiRay Outdoor Mini MH25 V2 Features
Flexible Mounting Options and Friendly Operation
For hands-free operation there are 2 mounting points designed to allow for a wide variety of dovetail helmet mounts. The Mini’s display icons flip automatically when orientation is flipped.
The MH25 is operated by an intuitive clearly labeled menu and user friendly rotary button. This one button operation has positive clicks with each selection and allows for quick and easy operation without having to search for any buttons in the dark.
Power Supply Options
The Mini is compatible with CR123A, CR123, 16340, and 16650 batteries. Using 1 x 16650 the Mini will run for 3 hours, and using the included power cable with a 10,000 mah USB battery the Mini will run for 18 hours. DO NOT USE 2 x CR123A batteries with the 16650 adapter, it will permanently disable your device.
About InfiRay Sensors
IRAY technology has been developing and producing infrared FPA detectors, thermal cores, and other thermal products outside of the US for more than a decade. IRay has completely independent intellectual property rights and is committed to providing professional thermal imaging solutions across the globe. More than 50% of IRay’s employees are R&D engineers and IRay has been awarded 219 technical patents.
|Digital Magnification||8X, stepped|
|Objective Focal Length||25mm|
|Objective Focusing Range||2 meters to infinity|
|Horizontal Angular Field of View||17.5|
|Vertical Angular Field of View||13.1|
|Detection Range||1375 Yards|
|Eyepiece Focal Length||27mm|
|Diopter Range||-4 – +3|
|Objective Lens Material||Germanium|
|Focusing Mechanism||Manual Focus|
|Operating Temperature Range||-4°F~122°F|
|Device Technology||Thermal Imaging|
|Sensor Pixel Size||12μm|
|Sensor Frame Rate||50hz|
|Spectral Response||8-12 Microns|
|Sensor Type||InfiRay MICRO II|
|Non-Uniformity Correction (NUC)||Manual, Automatic, Semi-Automatic|
|Power Source||16340 Battery|
|Video Output||Analog RS-170/NTSC|
|Country of Manufacture||China|
|Startup Time||Under 10 Seconds|
|Color Palettes||White Hot, Black Hot, Red Hot, Rainbow|
|External Power Source||USB-C|
|Mounting Interface||MUM Rail|
