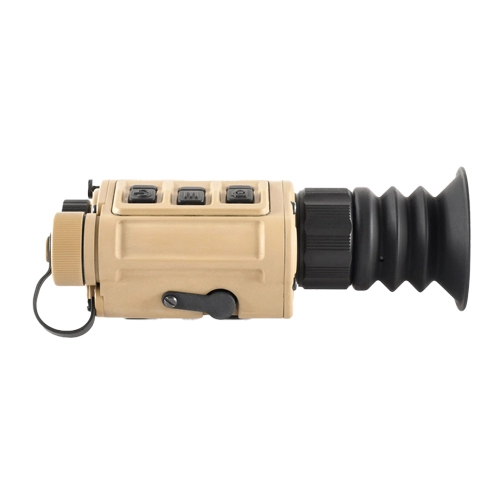

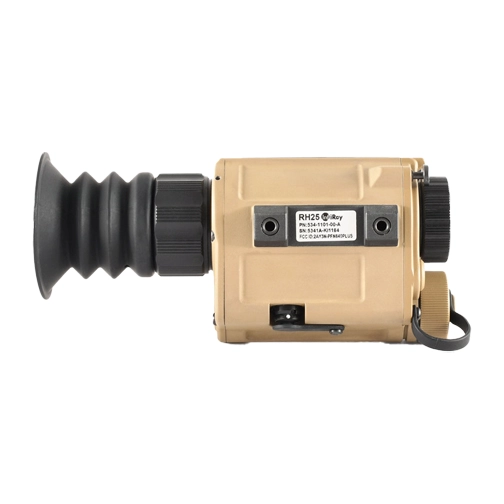

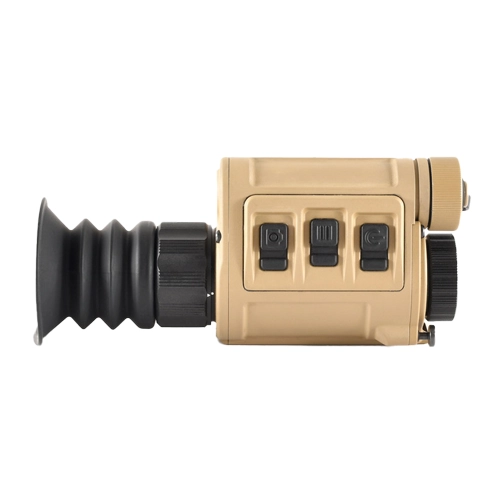

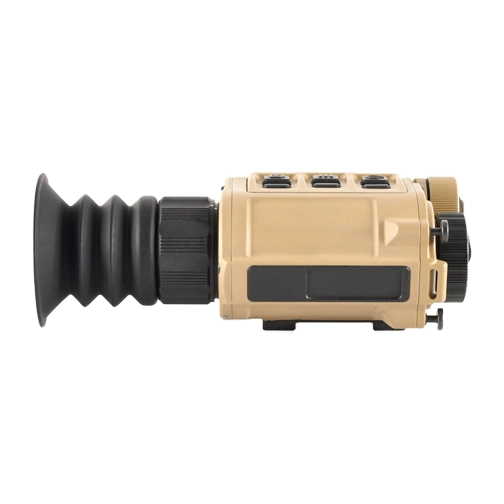

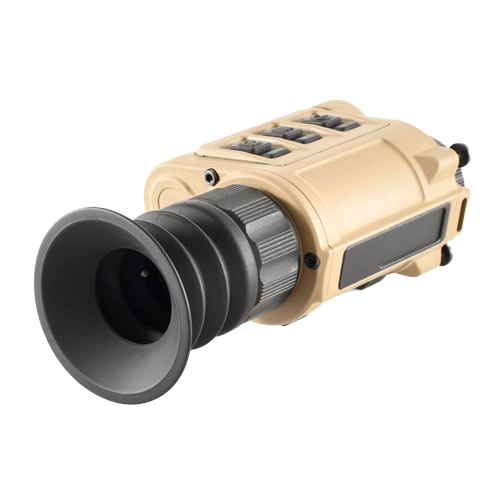

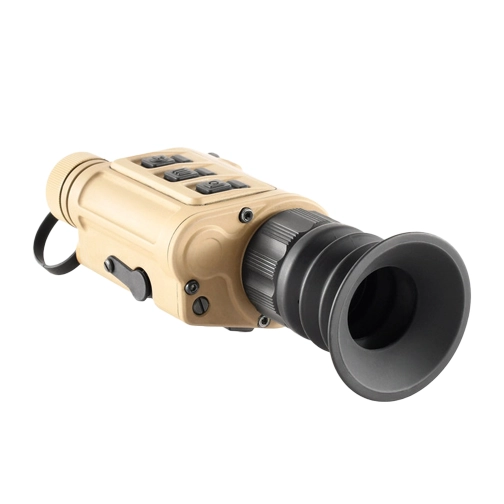

InfiRay Outdoor RH25 Rico Micro 640 Multi Purpose Monocular

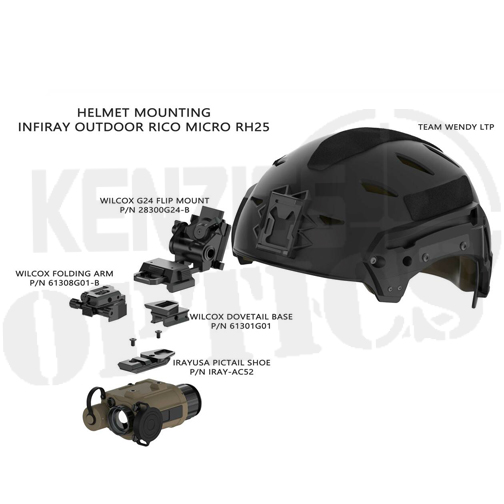

The InfiRay Outdoor RH25 Rico Micro is a multi purpose monocular that features a 25mm objective diameter, and is remarkably versatile, it can be used as a handheld, helmet mount, weapon mounted, or a clip on. It weighs less than a pound, and the Micro will fit in the palm of your hand and can be used with standard dovetail helmet mounts or rifle mounted as a stand alone weapon sight. InfiRay Outdoor is blazing a new trail with features never before seen in a helmet mounted thermal, such as on board recording, onboard video play back, and a high definition AMOLED display. The RH25 also features InfiRay’s latest high performance 640×512, 12 μm sensor technology, MATRIX III processing, and a manual focus f/1.0 objective lens to create an image that is unlike anything in its class.

InfiRay Outdoor’s cutting edge manufacturing techniques and the highest quality components on the market combine to produce an optic that is a strap ahead of the competition in size, weight, and performance. The Rico Micro has the features night hunters want and is more capable than optics twice the price and twice the size.

Product Manual


Specifications

Operating Temperature Range -4°F to 122°F
Recoil Rating 1000 g/s² (300 Win./7mm Mag)
Ingress Protection IP67
Reticle 7 Types
Connector Type “Data Cable with USB, BNC, and 7-Pin Connectors”
Color Palettes White Hot

Black Hot

Red Hot

Color

User Updatable Firmware Yes
Mobile App Yes
Storage Capacity 64gb
Connector Output Analog
Picture in Picture No
One Shot Zero No
Stand By Mode Yes
Rangefinder No
Run Time 4 Hours
Power Source 18650 Rechargeable
Wifi Yes
Onboard Recording Photo and Video, No Audio
Image Capture Yes
Video Output Analog RS-170/NTSC
Startup Time <10 Seconds, Instant from Standby
External Power Source Yes, 7-Pin to USB 5V
Warranty 5 Years
Country of Manufacture China
Optical Magnification 1X
Digital Magnification 4X
Objective Lens Material Germanium
Horizontal Angular Field of View 17.5°
Vertical Angular Field of View 14°
Detection Range 1375 Yards
Objective Focal Length 25mm
Objective Diameter 25mm
Objective F# 1.0
Focusing Mechanism Manual Focus
Eye Relief 35mm
Display Type AMOLED
Diopter Range -4 to +4
Display Resolution 1024 x 768
Mounting Interface Picatinny
Housing Material Aluminum
Length 4.52 in
Height 2.55 in
Width 1.88 in
Device Technology Thermal Imaging
Sensor Type InfiRay MICRO II
Sensor Resolution 640 x 480
Non-Uniformity Correction (NUC) Manual

Automatic

Semi Automatic

Spectral Response 8-12 Microns
Sensor Frame Rate 50hz
Sensor Pixel Size 12μm
Thermal Sensitivity <50mk






More Thermal Imaging

Additional information

Weight 1 lbs
