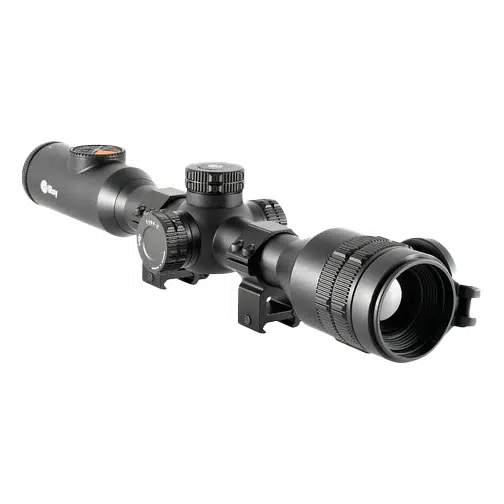

InfiRay Outdoor TL35SE BOLT SE Thermal Imaging Riflescope
The InfiRay Outdoor TL35SE BOLT is built on the success of previous BOLT models with a focus on simplicity and ease of use. Designed with users of traditional rifle scopes in mind, the BOLT SE hosts a familiar profile and tactile controls. InfiRay’s industry-leading 12 μm 384×288 Micro II sensor, paired with a 1536×1080 AMOLED display provides exceptional clarity across all zoom levels and is adjusted via an intuitive zoom ring. Hunters can appreciate the ability to use common mounting systems or the included 30 mm rings to mount on bolt-action rifles or other platforms. An internal battery with USB-C charging eliminates the need to change batteries in the field. Photo and video recording with 32 GB of internal storage and mobile app connectivity with wireless streaming allows users to share their experiences with friends and family.
Specifications |
||||||
Resolution | 384×288 | |||||
Pixel Size | 12 μm | |||||
Frame Rate | 50hz | |||||
Sensor Sensitivity | <25 mK | |||||
Image Processing | MATRIX III | |||||
Core InfiRay | Micro II 384 | |||||
Objective Lens | 35 mm f/1.0 | |||||
Magnification | 3.0× | |||||
Digital Zoom | 3.0× | |||||
Field of View | 7.5° × 5.7° | |||||
Detection Range | 1750 Yards | |||||
Display Type | 0.43-inch AMOLED | |||||
Display Resolution | 1536×1080 | |||||
Color Palettes | White Hot, Black Hot, Red Hot, Color, Highlight | |||||
Reticle Types | 6 (1 Dynamic, 5 Static) | |||||
Reticle Colors | Black, White, Red, Green | |||||
Mounting System | 30 mm Rings | |||||
P.I.P | Yes | |||||
Eye Relief | 50 mm | |||||
Diopter Range | -5 to +4 | |||||
Onboard Recording | Video, Recoil-Activated Video, and Image | |||||
Onboard Storage | 32 GB | |||||
Wireless Connectivity | Video and Image via App | |||||
Data/Power Connector | USB-C | |||||
Power Supply | USB-C External, Built-In Battery Pack (8+ Hours) | |||||
Start Up Time | <10 Seconds, Instant from Standby | |||||
Size | 12.20” × 2.76” × 2.76” | |||||
Weight | 25.40 Oz | |||||
Warranty | 5 Years | |||||
Housing Material | Aluminum Alloy | |||||
Ingress Protection | IP67 | |||||
Operation Temperature | -4°F ~ 122°F | |||||
Max. Recoil | 1000 g/s2 (300 Win./7mm Mag) |
