IRay ILR 1000 – Infrared Laser Rangefinder Module

Original price was: $1,299.00.Current price is: $799.00.

Only 1 left in stock

SKU: IRAY-AC05 Categories: , , Tags: , ,

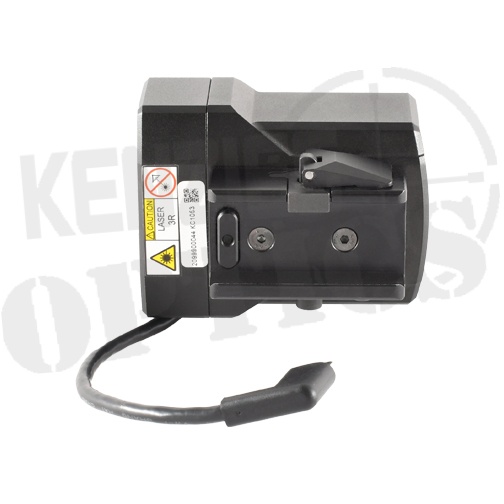

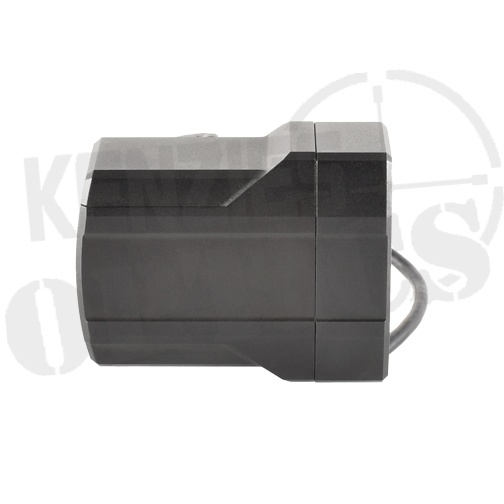

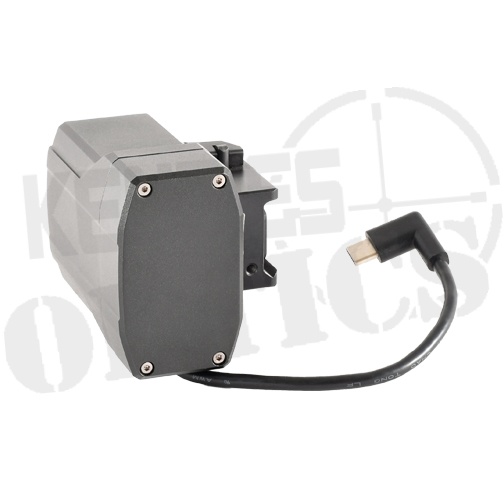

InfiRay ILR 1000 – Infrared Laser Rangefinder Module

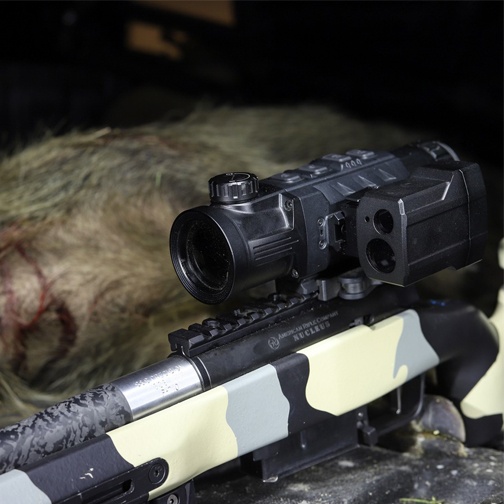

The InfiRay ILR 1000 is an Infrared Laser Rangefinder Module that was designed to take the guesswork out of range estimation day or night, and integrates seamlessly with all iRay RICO Mk1 Series thermal scopes. The ILR-1000 provides +/- 1 yard range to target accuracy out to 1000 yards, and overlays these results on the display of a connected MK1 Series scopes.

ILR-1000 features two ranging modes, Single Ranging (SGL) and Continuous Ranging (CONT). A ultra lightweight aluminum chassis secured by an intuitive QD mount ensures dead nuts repeatability and ease of use, even while wearing gloves. Enhance your range estimation capabilities with the iRay ILR-1000.

InfiRay ILR 1000 Features

Quick Disconnect Picatinny STD-1913 Mount

Ensures dead nuts repeatability and ease of use

USB Data/Power Cable

Simple battery and button free design

Infrared Laser Send Port

SGL (single ranging) and CONT (continuous ranging) modes

Rugged Aluminum Body

At less than 9 oz. it won’t weigh you down

Infrared Laser Receive Port

Multi coated lens allows for accurate measurements to 1000 yards

Red Visible Laser

Easy daytime collimation of infrared aiming reticle


Measurement Range 5~1000
Measurement Accuracy +/- 1 Yard
Safety Class 1 Vis./3R Invis.
Max Output 4.5mW Vis./ 125nJ Invis.
Puls Duration CW Vis./18 nSec Invis.
Wavelength 635 nm/ 905 nm
Ranging Modes Continuous/Single Range
Dimensions 2.83”x2.2”x2.00”
Weight 8.81 oz.
Mounting System Picatinny STD-1913 rail
Housing T-6061 Aluminum
Operating Temperature 14°F~122°F
Storage Temperature -4°F~140°F
Ingress Protection IP67
Warranty 5 Years
