Leupold Mark 4HD 1-4.5×24 SFP Riflescope – FireDot BDC Reticle

Original price was: $1,199.99.Current price is: $999.99.

Only 1 left in stock

SKU: 183315 Categories: , Tags: , , , ,

Leupold Mark 4HD 1-4.5×24 SFP Riflescope – FireDot BDC Reticle

Ready your rifles with a versatile Leupold Mark 4HD 1-4.5×24. Leupold took the legendary performance of its predecessors and gave it a slimmer maintube that’s been packed full of professional-grade features. Whether you’re a dedicated enthusiast or a seasoned expert, the Mark 4HD’s optical clarity and lightweight design will get the job done at the range or in the field.
The Mark 4HD series features five magnification ranges, providing you with an accurate and reliable option for close-quarter engagements, long-range dominance, and everything in between. They’re available with a three-turn elevation dial for unmatched confidence at extreme distances, a precise ZeroLock windage adjustment that won’t budge when knocked around, and a side focus that delivers tack-sharp images as close as 25 yards. And like all Leupold riflescopes, they’re waterproof, fogproof, and backed by Leupold’s lifetime guarantee.

Leupold Mark 4HD 1-4.5×24 Features

4:1 Zoom Ratio

A 4:1 zoom ratio strikes the perfect balance between weight and versatility, giving you plenty of magnification options without weighing you down. Model magnification ranges are available in powers of 4x: 1-4.5, 2.5-10, 4.5-18, and 8-32.

Professional Grade Optical System

Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.

Motion Sensor Technology (MST)

Motion Sensor Technology (MST) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.

Removable Throw Lever

The removable, low-profile throw lever makes changing magnifications quick and easy. It includes a thread protector plug to use when the lever is removed.

Waterproof, Fogproof & Shockproof

The Electronic Reticle will flash when the scope isn’t level, promoting more accurate long-range shots. It can also simplify the mounting process.


This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.

Night Vision Compatible Illumination

Micro-adjustable illumination brightness settings support modern night vision devices and can be fine-tuned to your equipment’s sensitivity.

Side Focus

The side focus adjusts the scope’s parallax, making the reticle clearer and have less perceived movement when you’re shooting at different distances.

Product Manual



Battery Type CR2032
BDC Dial Included No
Custom Dial Compatible No
Daylight Bright Illumination Yes
Custom Dial System (CDS) No
Guard-ion Lens Coating No
Locking Dial No
Magnification Type Variable
Reticle Focal Plane Second Focal Plane
Revolution Indicator No
Reticle Illum. FireDot Bullet Drop
Rezero Type Set Screw
Reticle Type Second Focal Plane
Adjustable Objective No
Switch Type Push Button
Windage Adjustment Type Capped
Weight (oz) 18
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 165
Elevation Adjustment Range (MIL) 48
Elevation Adjustment Range (cm @ 100m) 480
Elevation Adjustment Per Revolution 25 MOA
Elevation Dial Travel Limit 71.5MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 165
Windage Adjustment Range (MIL) 48
Windage Adjustment Range (cm @ 100m) 480
Windage Adjustment Per Revolution 25 MOA
Magnification Max 4.5
Magnification Min 1
Objective Lens Diameter (mm) 24
Linear FOV Low Mag (ft@100yds) 118.8
Linear FOV High Mag (ft@100yds) 25.2
Angular FOV Low Mag (Degrees) 21.6
Angular FOV High Mag (Degrees) 4.8
Eye Relief Low Mag (in) 3.7
Eye Relief High Mag (in) 3.9
Fixed Parallax-Free Distance (yd) 150
Battery Life (hr), Low Intensity 1600
Battery Life (hr), Medium Intensity 1000
Battery Life (hr), High Intensity 300
Number of Illum Settings 8

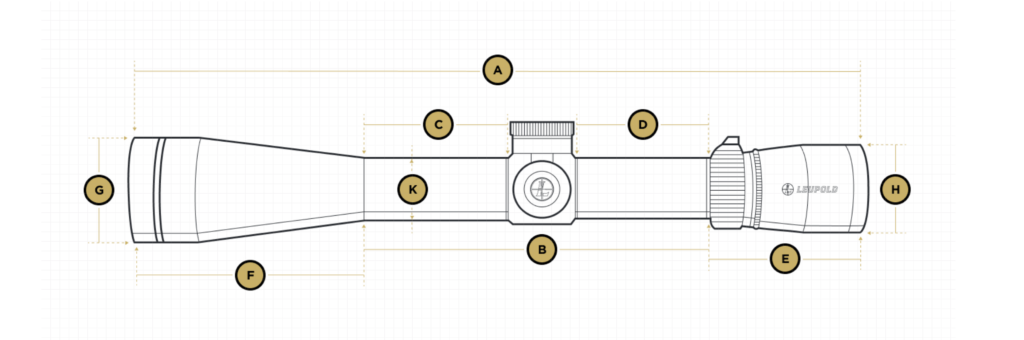

A Total Length (in) – A 10.7
B Total Mounting Space (in) – B 6.7
C Front Mounting Space (in) – C 2.5
D Rear Mounting Space (in) – D 2
E Eyepiece Length (in) – E 3.3
F Objective Length (in) – F .7
G Objective Diameter (in) – G 1.2
H Eyepiece Diameter (in) – H 1.8
K Maintube Diameter (mm/in) – K 30 mm
