Leupold VX-3HD 6.5-20x40mm EFR CDS-T Fine Duplex Scope

The Leupold VX-3HD 6.5-20x40mm was designed to be incredibly tough and lightweight. It is the perfect workhorse for taking mid to long range shots from the firing line.

Using Leupold’s Elite Optical System, the VX-3HD provides superior dawn to dusk light transmission for a bright image when it matters most, high performance glare reduction in harsh light, and the resolution and clarity diehard hunters and shooters demand. It features a front parallax focus ring that adjusts from infinity all the way down to 10 meters, making it ideal for airguns or rimfire rifles. Leupold also gave it match grade repeatability and ergonomic controls that are easy to read and use, even when with gloves.

Everything Leupold puts into your VX-3HD is there to help you dominate the competition. With is CDS-T dial, you’ll get access to the entire adjustment range of your scope in precise 1/4 MOA increments. Like all Leupold scopes, it’s designed, machined, and assembled in the USA and guaranteed for life.

Leupold VX-3HD Features

3:1 Zoom Ratio

A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long range shots.

Custom Dial System

Leupold’s Custom Dial System (CDS) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.

Adjustable Objective

An adjustable objective focuses the scope to minimize the effects of parallax at different distances.

Elite Optical System

Leupold’s Elite Optical System offers excellent dawn to dusk light transmission for a bright image when it matters most, elite level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.

High Definition

High definition, calcium fluoride lenses ensure incredible clarity at all magnification levels.

Waterproof, Fog Proof & Shockproof

Leupold pioneered modern waterproof and fog proof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.

Fine Duplex Reticle

Based on our Duplex style design

Thinner posts and crosshairs

Better for precision shots

Makes small target acquisition easier

Rear (second) focal plane

Product Manual


Specifications

Adjustable Parallax Side Focus
Side Focus No
Reticle Focal Plane Second Focal Plane

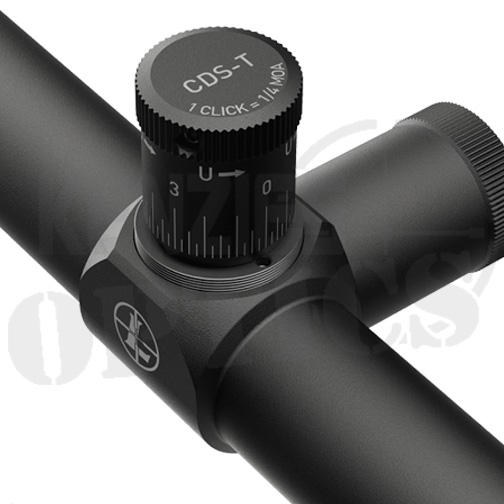

Elevation Adjustment Type CDS-T
Locking Dial No
Revolution Indicator Yes
Rezero Type Set Screw
Custom Dial Compatible Yes
BDC Dial Included No
Reticle Type Second Focal Plane
Reticle Fine Duplex
Magnification Type Variable
Illuminated No
Nightvision Compatible Illumination No
Daylight Bright Illumination No
Motion Sensor Technology (MST) No
Electronic Reticle Level No
Guard-ion Lens Coating No
Weight (oz) 18.2
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 45
Elevation Adjustment Range (MIL) 13.1
Elevation Adjustment Range (cm @ 100m) 130.9
Elevation Adjustment Per Revolution 15 MOA
Elevation Dial Travel Limit Total Scope Travel
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 45
Windage Adjustment Range (MIL) 13.1
Windage Adjustment Range (cm @ 100m) 130.9
Windage Adjustment Per Revolution 15 MOA
Magnification Max 20
Magnification Min 6.5
Objective Lens Diameter (mm) 40
Linear FOV Low Mag (ft@100yds) 14.3
Linear FOV High Mag (ft@100yds) 5.5
Angular FOV Low Mag (Degrees) 2.7
Angular FOV High Mag (Degrees) 1.1
Eye Relief Low Mag (in) 4.4
Eye Relief High Mag (in) 3.6
Minimum Parallax-Free Distance (yd) 10
