Leupold VX-5HD 1-5x24mm CDS-ZL2 Firedot Duplex Reticle


The VX-5HD is taking optical performance to a whole new level. We gave it a High-Definition optical system for sharpened clarity, and the Twilight Max™ Light Management System for even greater low-light performance, giving hunters a visible advantage at dawn and dusk when the biggest game is on the move. The new CDS-ZL2 (Custom Dial System ZeroLock 2) elevation dial locks in place so it cannot be inadvertently rotated off zero. A mere press of a button will allow the user to dial up two turns of elevation, if necessary. On the 2nd revolution of the elevation dial, the button sinks in to show you are on the 2nd turn so you can dial for extended ranges and never lose your place. The covered pop-up windage dial provides fast and accurate sight-in and easy rezero. All VX-5HD CDS-ZL2 riflescopes include one free Custom Ballistic Dial with purchase. FireDot illuminated reticles provide daylight bright, red dot-like performance with an easy to use 1 button intensity adjustment.

In stock

SKU: 172367 Categories: , Tags: , , , ,

Leupold VX-5HD 1-5x24mm

Don’t let its small stature fool you, this scope is big game ready. At only 13.4 ounces, Leupold’s VX-5HD 1-5×24 rifle scope was built for long days in the wilderness. But it’s 1-5 magnification range also makes it a great choice for competition shooters or tactical applications. The VX-5HD defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. With the Twilight Max HD Light Management System, it’s purpose built for the toughest lighting conditions. Rugged and reliable, the VX-5HD is ready for your next adventure.

VX-5HD 1-5x24mm Features

Fast Focus Eyepiece

Brings the reticle into focus quickly with Fast Focus eyepiece

CDS Custom Dial System

Spot it, range it, dial and shoot.

Leupold’s CDS (Custom Dial System) elevation dials allow you to quickly dial your elevation adjustment to different ranges with a custom dial matched to your specific ballistic information. Out of the box CDS scopes come with a MOA scale dial to get you on target. Then you can order your one free custom laser marked dial from the Leupold Custom shop with your exact ballistics and conditions.

Punisher Tested

Each scope design has to survive 5,000 impacts on the Punisher, Leupold’s recoil simulation machine. The force of each impact is 3x the recoil of a .308 rifle. If the scope doesn’t perform in any way during the tests, we make adjustments to the design and test it again.

Rear Focal Plane (RFP)

Rear focal plane reticles remain fine and minimally cover the target at high power.  Subtensions change with zoom, allowing tuning of ballistic reticles.

Twilight Max HD Light Management System

See more in less light with Twilight Max HD Light

Management System

Adds up to 30 extra minutes of shooting light

Eliminates 90% more glare producing stray light than competitors

Premium high definition edge to edge lens clarity

Ultra Lightweight Design

Disperses recoil energy for unrivaled durability and performance with ultra lightweight construction

Waterproof & Fog Proof

Absolute waterproof and fog proof integrity means it’s ready to perform in the field, in all conditions.

Durable Lens Cover

A field functional and durable bikini style lens cover is included for excellent lens protection both in the field and while in storage.

FireDot Illumination

Creates a visible aiming point in low light conditions with available FireDot illumination

Motion Sensor Technology (MST)

Extends battery life with Motion Sensor Technology (MST)

Automatically deactivates illumination after 5 minutes of inactivity, yet reactivates instantly as soon as any movement is detected.

30mm Maintube

The 30mm maintube offers incredible strength and increased range of windage and elevation adjustment.

Guard Ion Lens Coating

Sheds dirt and water for clear, crisp images with the Guard ion lens coating


Eliminates accidental dial movement with the push-button ZeroLock system while providing two revolutions of adjustment

Push Button Illumination

Easy and simple reticle brightness control with our one-button design

5:1 Zoom Ratio

Versatile magnification range offers a wide field of view at low power and precise target identification at high power.

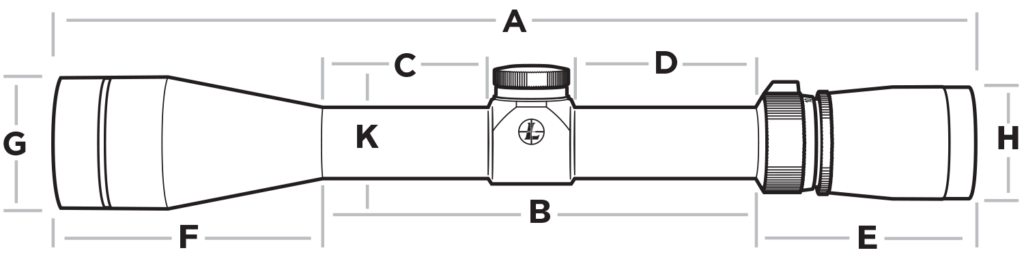

Length – A (in) 11.2
Mounting Space – B (cm) 18.8
Illustration – C N/A
Illustration – D 2.5
Eyepiece Length – E 3.3
Objective Length – F N/A
Objective Diameter – G 1.2
Eyepiece Diameter – H 1.8
Tube Diameter- k (mm) 30.0
Mounting Space – B (in) 7.4



Weight (oz) 14.7
Linear FOV (ft/100 yd) – Low 114.6
Linear FOV (ft/100 yd) – High 22.5
Linear FOV (m/100 m) – Low 38.2
Length (in) 11.2
Linear FOV (m/100 m) – High 7.5
Length (cm) 27
Eye Relief (in) – Low 3.8
Eye Relief (in) – High 3.8
Eye Relief (mm) – Low 97
Eye Relief (mm) – High 97
Objective Diameter (in) .9
Weight (g) 417
Elevation Adjustment Range (MOA) 170
Windage Adjustment Range (MOA) 170
