Leupold VX5HD 4-20×52


The VX-5HD is taking optical performance to a whole new level. Leupold gave it a High-Definition optical system for sharpened clarity, and the Twilight Max™ Light Management System for even greater low-light performance, giving hunters a visible advantage at dawn and dusk when the biggest game is on the move.

Available Options:

Leupold VX5HD 4-20×52

The Leupold VX5HD 4-20×52 has wide magnification ranges to give hunters and shooters the ability to adapt to any setting. With the Twilight Max HD Light Management System, it’s purpose built for the toughest lighting conditions. Rugged and reliable, the VX-5HD is ready for your next adventure.

Leupold VX5HD 4-20×52 Features

34 mm Maintube

A 34 mm maintube produces unparalleled windage and elevation adjustment travel.

5:1 Zoom Ratio

Versatile magnification range offers a wide field of view at low power and precise target identification at high power.

Fast Focus Eyepiece

Brings the reticle into focus quickly with Fast Focus eyepiece

Guard-Ion Lens Coating

Sheds dirt and water for clear, crisp images with the Guard-ion lens coating

Punisher Tested

Each scope design has to survive 5,000 impacts on the Punisher, Leupold’s recoil simulation machine. The force of each impact is 3x the recoil of a .308 rifle. If the scope doesn’t perform in any way during the tests, we make adjustments to the design and test it again.

Rear Focal Plane (RFP)

Rear focal plane reticles remain fine and minimally cover the target at high power.  Subtensions change with zoom, allowing tuning of ballistic reticles.

Scratch Resistant Lenses

Extreme Military Standard scratch resistance for added protection

Side Focus

Side focus parallax adjustment for fast, easy parallax focusing from any shooting position.

Twilight Max HD Light Management System

See more in less light with Twilight Max HD Light

Management System

Adds up to 30 extra minutes of shooting light

Eliminates 90% more glare producing stray light than competitors

Premium high definition edge to edge lens clarity

Ultra Lightweight Design

Disperses recoil energy for unrivaled durability and performance with ultra lightweight construction

Waterproof and Fog proof

Absolute waterproof and fog proof integrity means it’s ready to perform in the field, in all conditions.

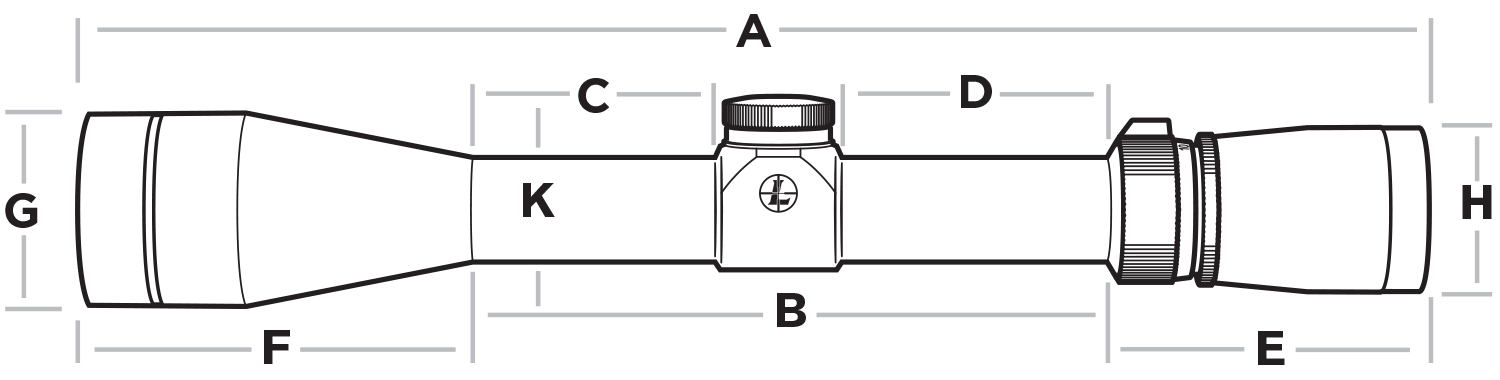

Illustration – C 2.1
Illustration – D 2.6
Eyepiece Length – E 3.3
Objective Length – F 5.1
Objective Diameter – G 2.4
Eyepiece Diameter – H 1.8
Tube Diameter- k (mm) 34
Length – A (in) 14.7



Weight 23.5 oz
Linear Field of View @ 100 yd Low 28.4 ft
Linear Field of View @ 100 yd  High 7.7 ft
Length 14.7 in
Eye Relief Low 3.7 in
Eye Relief  High 3.8 in
Elevation Adjustment Range MOA 110
Windage Adjustment Range MOA 110
