Description
MeoStar R2 1.7-10×42 Features
MeoLuxTM
Meopta’s newest and highest performing proprietary ion assisted multi coating featured in MeoStar R2 series riflescopes. This next generation lens multi coating gives an industry leading 99.8% light transmission per lens surface while suppressing reflections and glare. MeoLuxTM multi coated riflescopes makes the absolute highest transmission rates in the industry.
MeoDropTM
MeoDrop is a proprietary hydrophobic lens coating made to repel water, grease, skin oils and lens surface contaminates that can ruin clarity. This microscopic hydrophobic layer applied to all outer lens surfaces repels water so that rain and moisture forms a tight ball and simply rolls off the lens surface. MeoDrop coated lenses are easily cleaned with no smudges, stay clean longer and maintain the highest level of a clear view, Making sure that the outside setting will have no effect on your ability to pick out an intended target in rain, snow or whatever else is thrown at you.
MeoQuick
MeoQuick fast focus eyepiece quickly brings your target into sharp focus and gives more diopter travel to accommodate a wider range of visual acuity variations.
MeoShield
MeoShield ion assisted coating protects outer lens surfaces and makes for better resistance to scratching or abrasion in rough settings. The MeoShield meets military specifications for durability and surface hardness.
RedZone 8 Illumination
RedZone is a highly defined user selectable red dot illumination system with 8 levels of reticle intensity giving crucial accuracy in daylight to dead of night settings. Low profile turret control gives quick illumination selection with intermediate off positions between each level.
Lens Components
Individual lens parts are meticulously ground and polished in house and specifically matched for better performance.

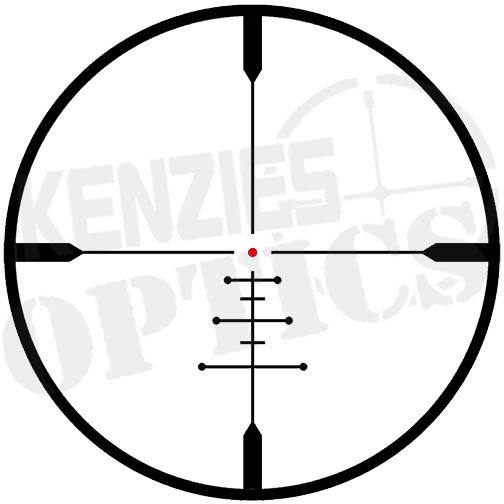

Etched Glass Reticle
Precision etched glass reticle gives amazing target definition for all shooting applications.
30 mm Main Tube Construction
One piece, aircraft grade aluminum 30 mm main tube is “ELOX” hard anodized for a really durable, scratch resistant, non reflective matte black finish.
Waterproof and Fog proof
MeoTrak II Elevation and Windage Control
MeoTrak II posi click finger adjustable windage and elevation turrets deliver precise, click adjustment with great repeatability, unparalleled tracking capability and accuracy. Positive tactile and audible clicks helps accurate zeroing and settings in the field.
Specifications |
|
| Magnification | 1.7 to 10 x |
| Objective lens | 42 mm |
| Objective Filter Thread | M46x0.75 |
| Main Tube Size | 30 mm |
| Exit Pupil Diameter | 11.1 to 4.2 mm |
| Eye relief | 3.9 to 3.7 in |
| Field of view ft @ 100 yds | 66 to 11 ft |
| Field of View at | 12.5 to 2.1 ° |
| Focal Plane Position | 2 |
| Dioptric compensation | -3 / 3 D |
| Daylight Transmission | 94.5 % |
| Twilight Transmission | 92 % |
| Twilight Factor | 8.4 to 20.5 |
| Impact per click @ 100 yds | 0.25 |
| Windage and elevation adjustment range @ 100yds | 256 and 92 in |
| Paralax Correction | no |
| Length | 12.9 in |
| Weight | 20.3 oz |
| A | 328 mm |
| B | 157 mm |
| C | 49 mm |
| D | 76 mm |
| E | 49 mm |
| F | 45 mm |
| G | 30 mm |
| H | 75 mm |
| K | 97 mm |
