Description

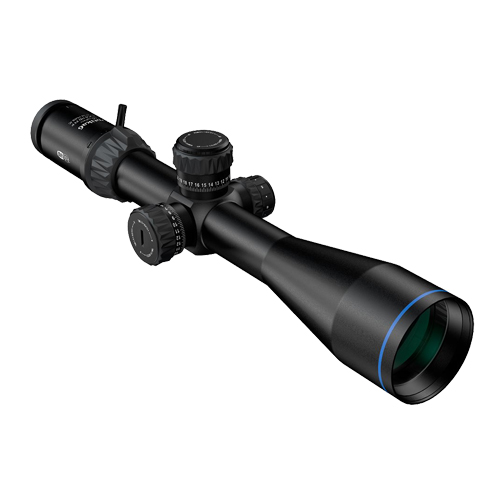

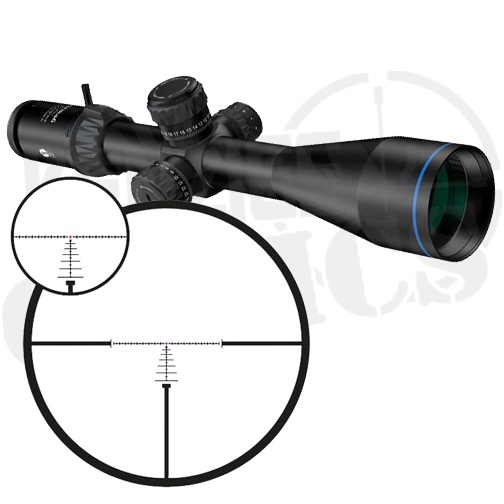

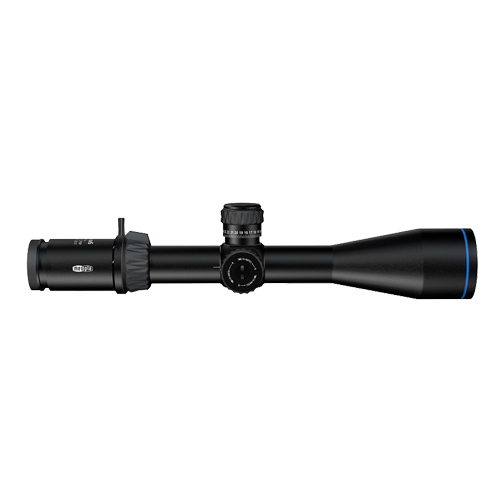

Meopta Optika6 5-30×56

The Meopta Optika6 5-30×56 is built for competition and precision long range shooting. It has superior clarity and resolution with the 2 elements of ED glass in the objective lens. The 34mm main tube allows for a wide windage and elevation adjustment range. This gives the shooter the ability to correct for changing conditions. The 5-30×56 has a First Focal Plane (FFP) reticle with exposed windage and zero stop elevation, and a side parallax adjustment for shot placement in long range shooting. The MIL-based reticle allows for precise aiming with any power range and allows shooters to accurately hold over and hold off in the field.

Meopta Optika 6 Features:

MeoBright – lens coating to eliminate glare and reflections to deliver 91% daylight light transmission

MeoShield – lens coating to eliminate scratching or abrasion

RD Illuminated Reticle System – highly defined illuminated red dot reticle

34 mm Main Tube

Waterproof, Fog proof, and Shockproof

Meopta Optika6 5-30×56 Registration CLICK HERE»




Specifications

Magnification 5 – 30 x
Objective lens 56 mm
Objective Filter Thread M61x0.75
Main Tube Size 34 mm
Exit Pupil Diameter 9.5 – 1.9 mm
Eye relief (mm / in) 100 // 3.94
Field of view (m/100m // ft/100yds) 8.2-1.2 // 24.6-3.6
Field of View at 4.7 – 0.7 °
Focal Plane Position 1
Dioptric compensation -2 / 2 D
Daylight Transmission 91 %
Twilight Transmission 88 %
Twilight Factor 16.7 – 41
Impact per click (cm/100m // in/100yds) 1 // 0.36
Windage and elevation adjustment range (cm/100m // in/100yds) 320 // 115.2
Paralax Correction 25 yd – infinity y/n
Length (mm / in) 392 / 15.44
Weight (g / oz) 1039 / 36.7
Windage and Elevation Adjustment Range (MOA) 110
A (mm / in) 392 / 15.44
B (mm / in) 160 / 6.3
C (mm / in) 58 / 2.3
D (mm / in) 61 / 2.41
E (mm / in) 64 / 2.5
F (mm / in) 47 / 1.83
G (mm / in) 34 / 1.34
H (mm / in) 126 / 4.94
K (mm / in) 107 / 4.19


Related Items

Additional information

Weight 2.3 lbs

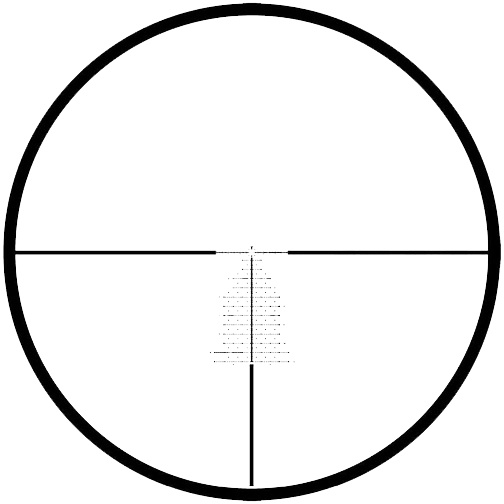

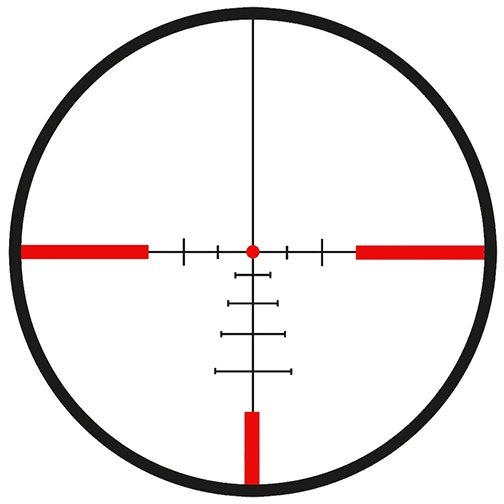

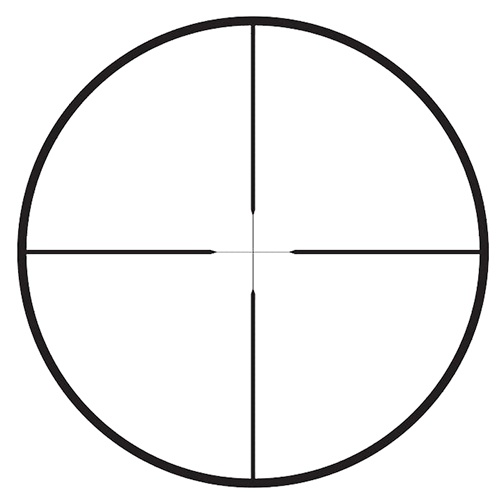

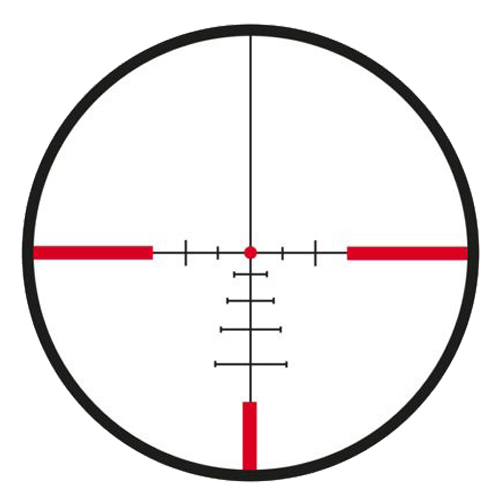

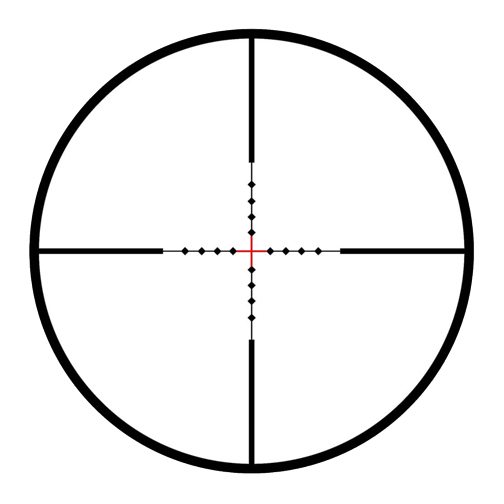

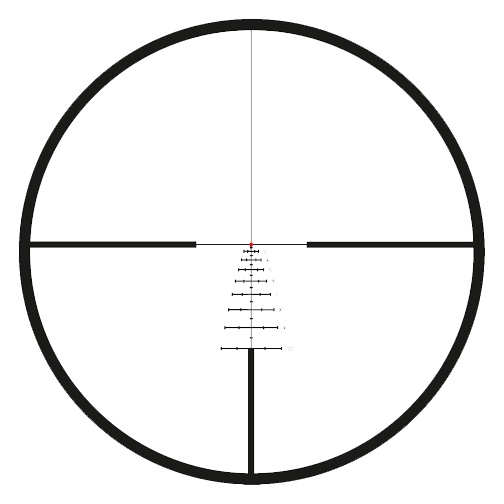

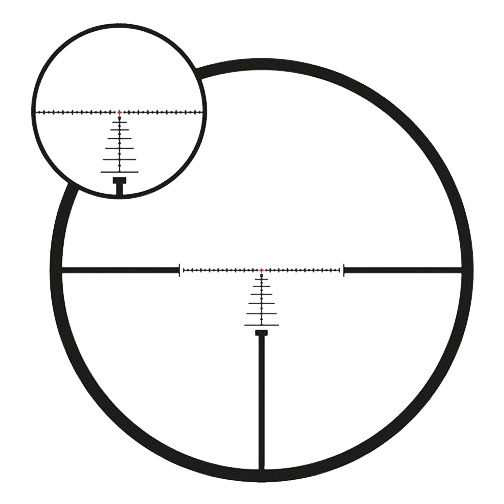

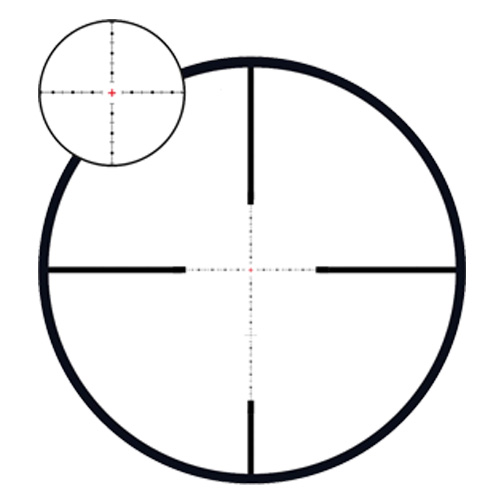

Reticle Options

, , , ,
