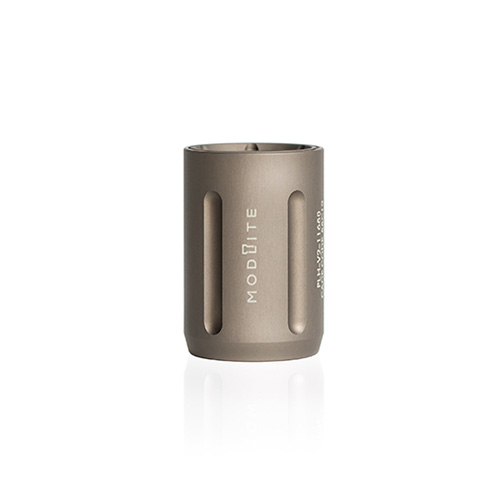

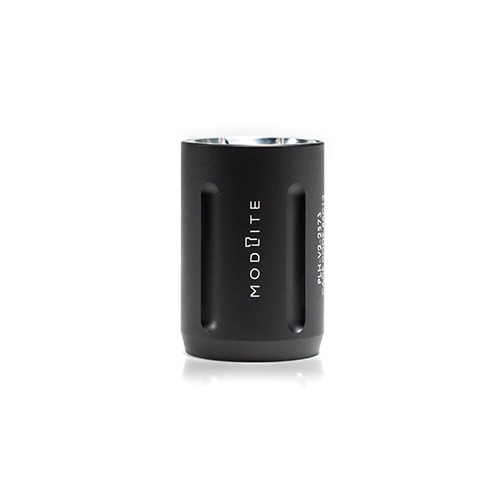

Modlite PLHv2 Light Head
The Modlite PLHv2 Light Head was designed to be a replacement for the Surefire M600DF head. The light head can also be used with the Modlite 18650 body or the smaller 18350 body. While the lumen output with this light is similar to the Surefire M600DF head, the throw is much better suited to a rifle mounted application at more than three times the amount throw than the M600DF. The light is a large step forward from the PLHv1 light, and is the best balance of flood and throw available. The PLHv2 Light head is available in both Black and FDE.
Modlite PLHv2 Light Head Features
Cool White 5700K emitter tint
Made and assembled in the USA
Drivers are fully potted and tested to withstand select fire SCAR 17 recoil.
Approximately 1350 out the front lumens and candela is approximately 54,000. It is an excellent overall light head good for indoor or outdoor use.
6061 Series Alum bezel with Mil-Spec Hard Anodizing.
Ultra clear BOROFLOAT lens allows 98-99% light transmittance.
Length w/ Clicky tailcap: 5 1/2″ / 140mm
Head Diameter: 1 3/16″ / 30.16mm
Lithium CR123 cells are not supported and if used will cause the cells to heat up and possibly explode or catch fire. Modlite recommend the KeepPower 18650 high drain cells. Runtime is about 75 minutes with the supplied 18650 cells.
Beam comparison shots are available in the product images above.
