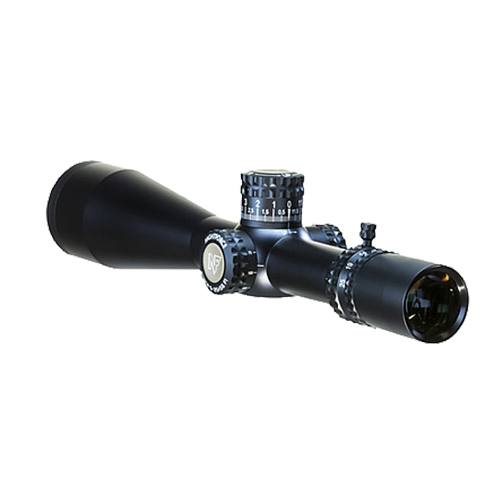

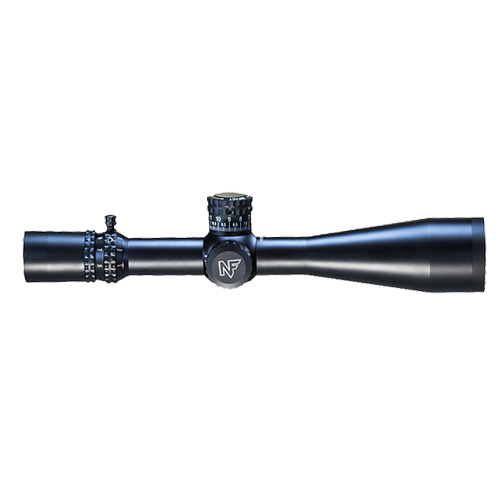

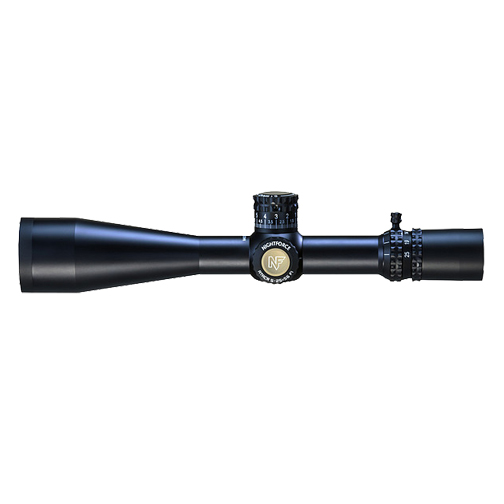

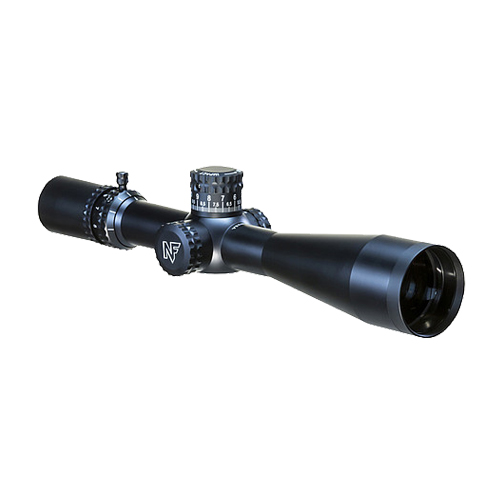

NightForce ATACR 5-25x56mm
The NightForce ATACR 5-25x56mm is packed full of features that might make some grown men cry. The ED optics are beautiful, the mechanics sound. The adjustments are standard with the patented Nightforce Hi-Speed ZeroStop, and available in .1 Mrad (12 Mils per revolution) or .25 MOA (30 MOA per revolution) increments. A capped windage adjustment helps prevent accidental adjustment in the field. The parallax adjustment is marked with approximate numbered distances and is coupled with DigIllum digital reticle illumination. The Nightforce ATACR 5-25x56mm eyepiece features enhanced engraving, an integrated Power Throw Lever (PTL) and an XtremeSpeed thread for making a fast diopter adjustment.
Without a doubt, this could be called the perfect all-around long range riflescope.
Tenebraex Flip Covers are now included with ATACR riflescopes*.
All of these features are paired with intelligent, Nightforce F1 reticles to set a new standard in long range shooting. If there’s something this riflescope can’t do, we have yet to find it.
Horus TReMoR3
The TReMoR3 reticle is all about faster shooting. The Accuracy 1st – Speed Shooting Formula is built right into the elevation hold of the reticle making even faster shooting possible. It’s field-proven to make wind calls easier. The reticle also allows one to accurately mil targets very quickly. Illuminated version.
MIL-C F1

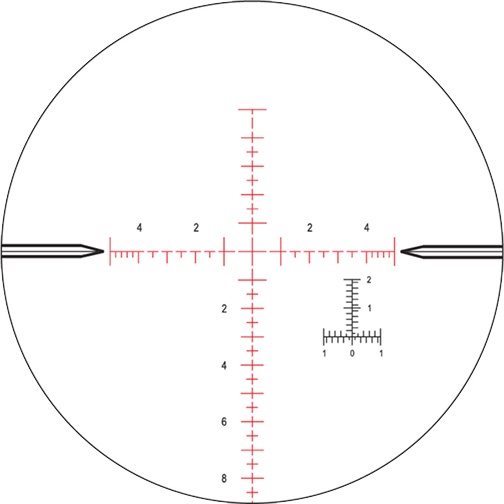

MIL-R F1
The MIL-R reticle, accurate hold offs, on the money first shot placement and quick follow up shots on either still or moving targets are the results with the Nightforce MIL-R reticle.
Everything about it is designed to be fast and intuitive. The clean, uncluttered floating center crosshair is precisely 1.0 Mil, supported by whole, half, .2 and .1 Mil-Radian graduations.
Numerical indicators provide quick reference to Mil-Radian spacing under stressful conditions. The spaces between the whole Mil-Radian graduations provide accurate ranging and hold off references in much finer, more precise increments than coarser, less intelligent reticles. The shooter can also easily distinguish between whole and half Mils.
Unique to the MIL-R is the inverted “T” Mil-Radian ranging scale. This allows the shooter to easily and logically reference zero to whole Mil-Radians in .2 and .1 Mil- Radian markings.
Horus H59
The H59 reticle is a “field-tuned” version of our H58 reticle. A widened horizontal grid by one mil for increased wind holdover. And the center cross has been turned into a “broken cross” so groupings are less obscured and more easily seen. Illumination now standard.
MOAR F1 – 20 MOA
The MOAR reticle is a major advancement in precision shooting. a floating center crosshair two MOA wide and two MOA tall provides a precise aiming point— especially on smaller targets at longer ranges. One MOA elevation and windage spacings provide for more accurate range and hold offs compared to ordinary reticles with coarser markings.
The Nightforce MOAR has thicker line subtensions than traditional reticles, and is marked with 10, 20 and 30 MOA elevation indicators (10 and 20 MOA windage indicators), making it extremely fast and easy to view under field conditions.
The MOAR design is more intuitive, easier to see in low light and more visible against dark backgrounds and in shadows than other MOA reticles. Shooters will also find the 3, 6 and 9 o’clock posts to be an excellent asset for greater speed and target acquisition.
The MOAR has established new levels of precision and ease of use for the long range shooter.
MOA-XT Reticle
The MOA-XT is designed to meet the needs of today’s shooters and hunters who require fast and accurate holds while using Minutes of Angle.
The floating center dot of the MOA-XT provides a fine aiming point for precise shots. The main stadia includes 1 MOA marks with labels every 2 MOA to ensure clear shooting references in hasty or stressful engagements. The grid consists of an array of horizontal dots that are broken up by a bold dot every 4 MOA for fast counting. Throughout the reticle, reference numbers are alternated in size to provide confidence and speed of engagement at any magnification.
Whether at a competition or on a hunt, shooters who utilize MOA now have a reticle that provides them with the information needed to quickly account for windage and elevation.
Specifications |
|
| Focal Plane | First |
| Magnification Range | 5-25 x |
| Objective Lens Diameter | 56 mm |
| Tube Diameter | 34 mm (1.34 in) |
| Internal Adjustment Range MOA | e: 120 MOA w: 80 MOA |
| Internal Adjustment Range Mil | e: 35 Mil w: 23 Mil |
| Click Value | .250 MOA .1 Mil-rad |
| Calibrated Ranging Power | N/A |
| Parallax Adjustment | 45 yd – ∞ |
| Exit pupil Diameter | 5 x:8.3 mm 25 x: 2.3 mm |
| Eye Relief | 85-90 mm 3.35-3.54 in |
| Field of View @100 yards | 5 x: 18.7 ft 25 x: 4.92 ft |
| Field of View @100 meters | 5 x: 5.7 m 25 x: 1.5 m |
| Objective Outer Diameter | 65 mm |
| Eyepiece Outer Diameter | 46 mm |
| Overall Length (inches/mm) | 15.37 in (390 mm) |
| Weight (ounces/grams) | 38 oz (1066 g) |
| Mounting Length (inches/mm) | 5.9 in (150 mm) |
| Front/Rear Mounting Length | 1.65 in 2.48 in |
| Power Throw Lever | Standard |
| Reticles available | MOAR
MIL-R MIL-C H59 TReMoR3 MIL-XT MOA-XT |
| Illumination | DigiLum |
| Elevation Feature | ZeroStop |
