Description
NightForce ATACR 5-25x56mm
The ATACR 5-25x56mm “Enhanced” Scope includes the Nightforce Hi-Speed adjustments with patented ZeroStop, and is available in .1 Mrad (12 Mils per revolution) or .25 MOA (30 MOA per revolution) increments. A capped windage adjustment helps prevent accidental adjustment in the field. The parallax adjustment is marked with approximate numbered distances and is coupled with DigIllum digital reticle illumination. The eyepiece features enhanced engraving, an integrated Power Throw Lever (PTL) and an XtremeSpeed thread for making a fast diopter adjustment.
MOAR – 20 MOA
The MOAR Reticle with 1 MOA elevation and windage markings, more accurate range finding and hold-offs are possible on smaller targets at longer ranges. Combined with a floating center crosshair, this makes for a reticle extremely fast and easy to use in the field. MOAR™ reticles in Nightforce 5.5-22x and 8-32x NXS models have a 20 MOA scale below centerline (at left). Reticles in 3.5-15x models have an additional 10 MOA scale below center.
MOAR-T
The MOAR-T reticle is for even more precision at extreme ranges. An illuminated floating center crosshair two MOA wide and two MOA tall provides a precise aiming point— especially on smaller targets. One MOA elevation and windage spacings provide for more accurate range and hold offs than ordinary reticles having coarser markings. The Nightforce MOAR-T is marked with 10 and 20 MOA elevation and windage indicators, making it extremely fast and easy to view under field conditions.

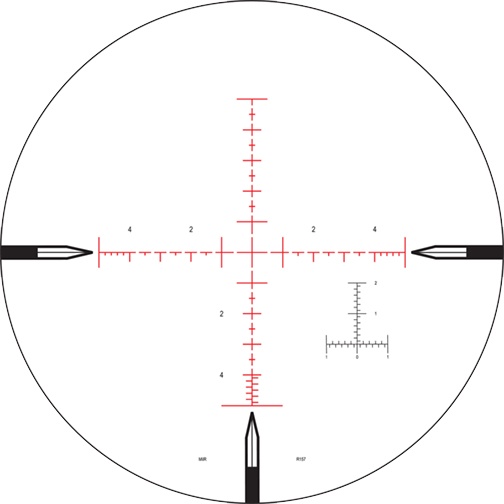

MIL-R – 5 Mils Reticle
Specifications |
|
| Focal Plane | Second |
| Magnification Range | 5 – 25x |
| Objective Lens Diameter | 56 mm |
| Tube Diameter | 34 mm 1.34 in |
| Internal Adjustment Range MOA | e: 120 MOA w: 60 MOA |
| Internal Adjustment Range Mil | e: 34.9 Mil w: 17.45 Mil |
| Click Value | .250 MOA .1 Mil-rad |
| Calibrated Ranging Power | 25x |
| Parallax Adjustment | 45 yd – ∞ |
| Exit Pupil Diameter | 5x: 10.52 mm 25x: 2.28 mm |
| Eye Relief | 90mm (3.54 in) |
| Field of View @100 yards | 5x: 17.96 ft 25x: 4.92 ft |
| Field of View @100 meters | 5x: 5.47 m 25x: 1.5 m |
| Objective Outer Diameter | 65 mm |
| Eyepiece Outer Diameter | 44 mm |
| Overall Length (inches/mm) | 14.3 in (363 mm) |
| Weight (ounces/grams) | 39 oz (1108 g) |
| Mounting Length (inches/mm) | 6.13 in (156 mm) |
| Front/Rear Mounting Length | 2.10 in 2.24 in |
| Power Throw Lever | Standard |
| Reticles Available | MOAR MOAR-T MIL-R |
| Illumination | DigiLum |
| Elevation Feature | ZeroStop |
