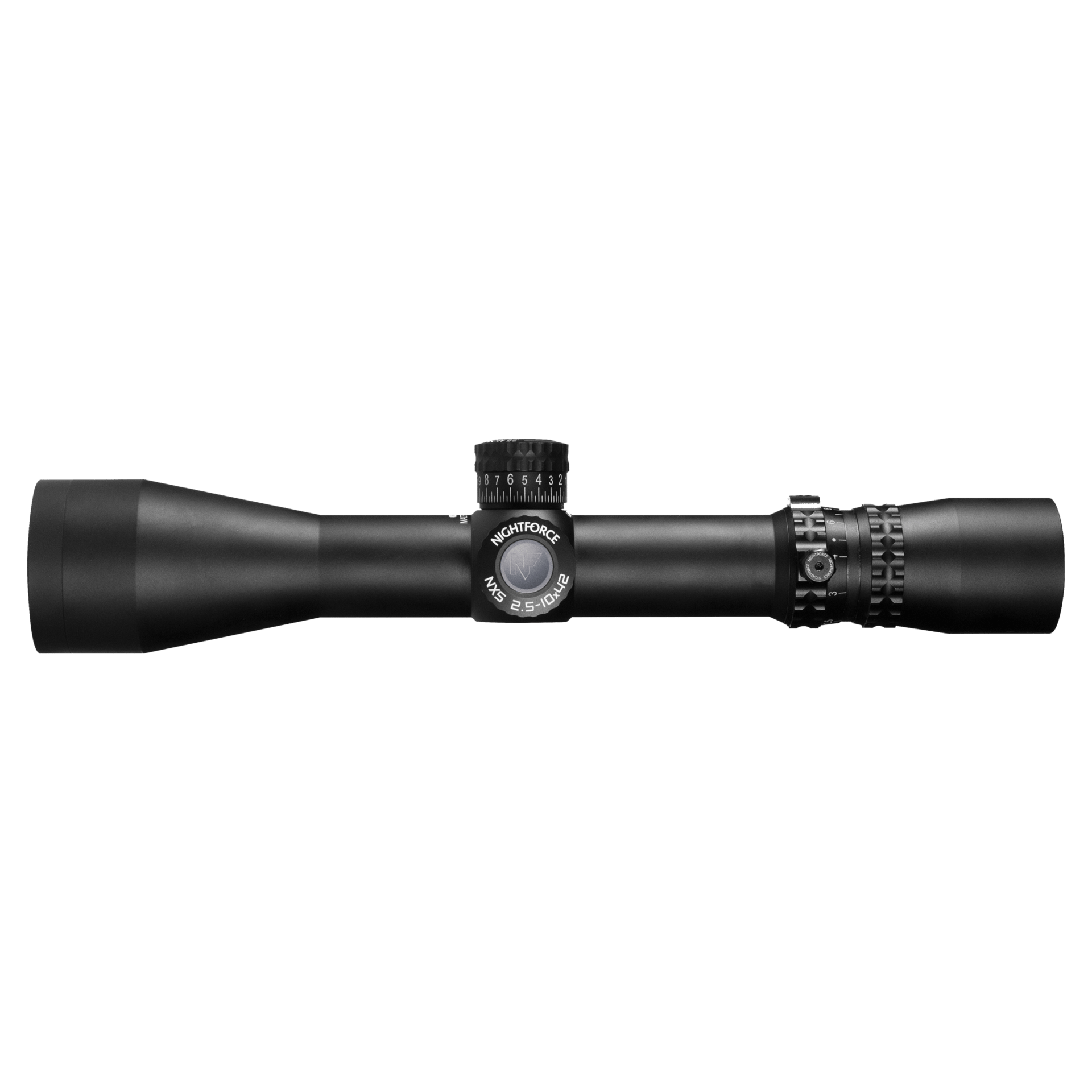

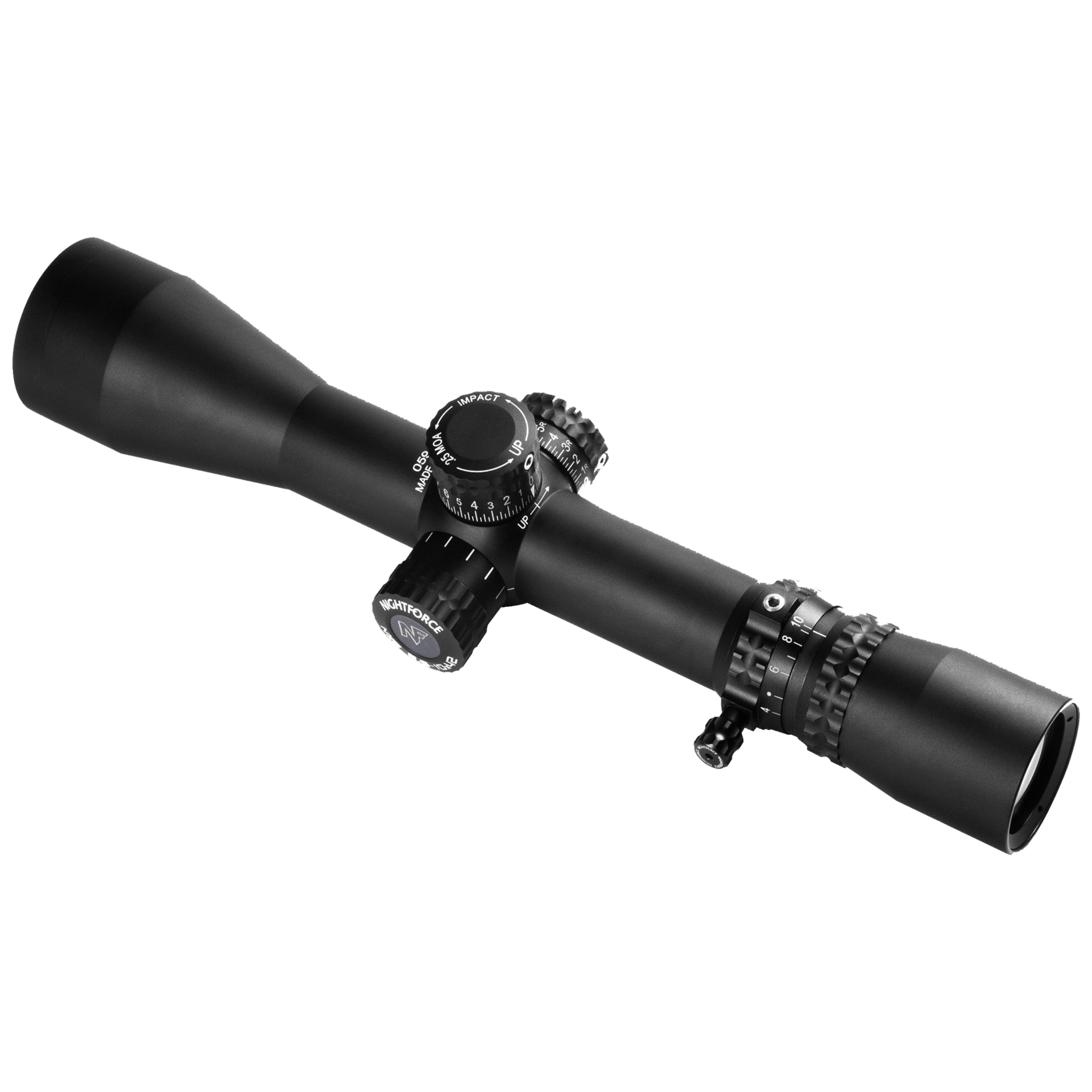

Born from Mil-Spec requirements, the NXS line of battlefield ready precision riflescopes stand ready to function under the harshest extremes and meet your demanding needs.  The NXS family includes both compact and full size models. The compact models, including the 1-4×24 and 2.5-10x models, are your perfect choice for hunting game in the bush, running and gunning on a 3-gun course, or while on patrol.  These compact NXS riflescopes offer the optimum balance between size, weight, and magnification. The NXS full size models continue with the military small arms based 3.5-15×50, our most proven long-range riflescope the 5.5-22×56, and push out to the extreme with the 8-32×56.  From the proprietary Mil-Spec bonding agent incorporated in the optical mounting package which ensures no metal to glass contact, to the hardened bronze materials utilized in the adjustment and erector tube assemblies, the Nightforce NXS family of riflescopes define Rugged, Reliable, Repeatable.


Specifications

Focal
Plane
Second
Magnification
Range
2.5-10x
Objective
lens diameter
42 mm
Tube
diameter
30 mm
1.18 in
Internal
adjustment
range MOA
e: 100 MOA
w: 100MOA
Internal
adjustment
range Mil
e: 27.3 Mil
w: 27.3 Mil
Click
value
.250 MOA
.1 Mil-rad
Calibrated
Ranging Power
10x
Parallax
adjustment
25 yd–∞
Exit
pupil
diameter
2.5x: 15.5 mm
10x: 4.4 mm
Eye
relief
88 mm
3.5 in
Field of
view @100
yards
2.5x: 44 ft
10x: 11 ft
Field of
view @100
meters
2.5x: 13.4 m
10x: 3.4 m
Objective
outer diameter
50 mm
Eyepiece
outer
diameter
40 mm
Overall
length
(inches/mm)
11.9 in
302 mm
Weight
(ounces/grams)
19 oz
535g
Mounting
length
(inches/mm)
5.1 in
130 mm
Front/Rear
Mounting Length
1.56 in
2.30 in
Power
Throw Lever
Standard
Reticles
available
IHR™
MOAR™
MIL-DOT
MIL-R™
Illumination Digillum
Elevation Feature ZeroStop

IHR Reticle

IHR stands for International Hunting Reticle, with good reason. It’s uncluttered and lightning fast, equally effective on dangerous game in tight quarters and at longer ranges on smaller targets. A floating illuminated center crosshair provides simple hold off capability. 3, 6 and 9 o’clock posts bring the eye quickly to your target.
