Born from Mil-Spec requirements and designed from the ground up, the NXS line of battlefield ready precision riflescopes stand ready to function flawlessly under the harshest extremes and meet your most demanding needs. The NXS family includes both compact and full size models. The compact models, including the 1-4×24 and 2.5-10x models, are your perfect choice for hunting dangerous game in the bush, running and gunning on a 3-gun course, or while on patrol. These compact NXS riflescopes offer the optimum balance between size, weight, and magnification. The NXS full size models continue with the military small arms based 3.5-15×50, our most proven long-range riflescope the 5.5-22×56, and push out to the extreme with the 8-32×56. From the proprietary Mil-Spec bonding agent incorporated in the optical mounting package which ensures no metal to glass contact, to the hardened bronze materials utilized in the adjustment and erector tube assemblies, the Nightforce NXS family of riflescopes define Rugged, Reliable, Repeatable.
Specifications |
|
Focal Plane |
Second |
Magnification Range |
2.5-10x |
Objective lens diameter |
42mm |
Tube diameter |
30 mm 1.18 in |
Internal adjustment range MOA |
e: 100 MOA w: 100MOA |
Internal adjustment range Mil |
e: 27.3 Mil w: 27.3 Mil |
Click value |
.250 MOA .1 Mil-rad |
Calibrated Ranging Power |
10x |
Parallax adjustment |
25 yd–∞ |
Exit pupil diameter |
2.5x: 15.5 mm 10x: 4.4 mm |
Eye relief |
88 mm 3.5 in |
Field of view @100 yards |
2.5x: 44 ft 10x: 11 ft |
Field of view @100 meters |
2.5x: 13.4 m 10x: 3.4 m |
Objective outer diameter |
50 mm |
Eyepiece outer diameter |
40 mm |
Overall length (inches/mm) |
11.9 in 302 mm |
Weight (ounces/grams) |
19 oz 535g |
Mounting length (inches/mm) |
5.1 in 130 mm |
Front/Rear Mounting Length |
1.56 in 2.30 in |
Power Throw Lever |
Standard |
Reticles available |
IHR™ MOAR™ MIL-DOT MIL-R™ |
Illumination | Digillum |
Elevation Feature | ZeroStop |

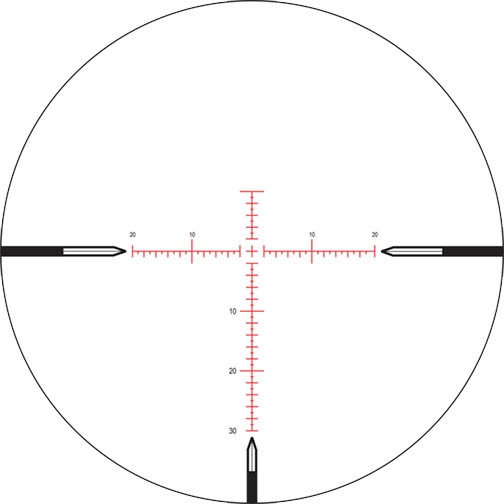

MOAR – 20 MOA Reticle
The Nightforce MOAR reticle is a major advancement in precision shooting. a floating center crosshair two MOA wide and two MOA tall provides a precise aiming point— especially on smaller targets at longer ranges. One-MOA elevation and windage spacings provide for more accurate range finding and hold-offs compared to ordinary reticles with coarser markings. The Nightforce MOAR has thicker line subtensions than our traditional reticles, and is marked with 10, 20 and 30 MOA elevation indicators (10 and 20 MOA windage indicators), making it extremely fast and easy to view under field conditions. The MOAR design is more intuitive, easier to see in low light and more visible against dark backgrounds and in shadows than other MOA reticles. Shooters will also find the 3, 6 and 9 o’clock posts to be an excellent asset for greater speed and target acquisition. The MOAR has established new levels of precision and ease of use for the long-range shooter.
