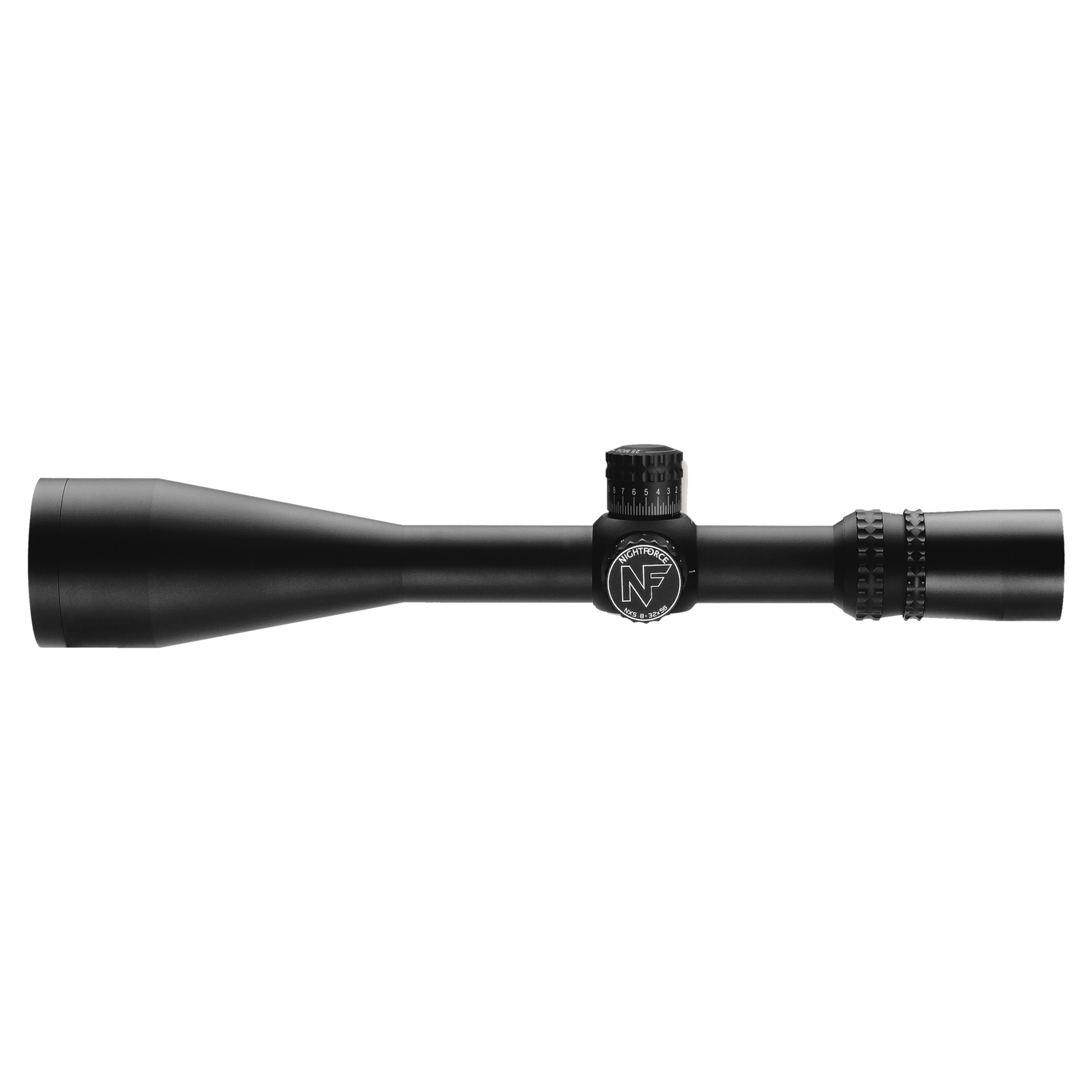

Nightforce NXS 8-32x56mm
Born from Mil-Spec requirements, the NXS line of battlefield ready precision riflescopes stand ready to function under the harshest extremes and meet your needs. The NXS family includes both compact and full size models. The compact models, including the 1-4×24 and 2.5-10x models, are your perfect choice for hunting game in the bush, running and gunning on a 3-gun course, or while on patrol. These compact NXS riflescopes offer the optimum balance between size, weight, and magnification. The NXS full size models continue with the military small arms based 3.5-15×50, their most proven long-range riflescope the 5.5-22×56, and push out to the extreme with the Nightforce NXS 8-32×56 scope. From the proprietary Mil-Spec bonding agent incorporated in the optical mounting package ensures no metal to glass contact, to the hardened bronze materials utilized in the adjustment and erector tube assemblies, the Nightforce NXS family of riflescopes define Rugged, Reliable, Repeatable.
|Objective Lens Diameter||56 mm|
|Tube Diameter||30 mm
|Internal Adjustment Range MOA||e: 65 MOA
w: 45 MOA
|Internal Adjustment Range Mil||e: 17.7 Mil
w: 12.3 Mil
|Click Value||.250 MOA*
|Calibrated Ranging Power||22x|
|Parallax Adjustment||50 yd–∞|
|Exit Pupil Diameter||8x: 7.0 mm
32x: 1.8 mm
|Eye Relief||98 mm
|Field of View @100 yards||8x: 12.1 ft
32x: 3.1 ft
|Field of View @100 meters||8x: 3.7 m
32x: 1 m
|Objective Outer Diameter||65 mm|
|Eyepiece Outer Diameter||43 mm|
|Overall Length (inches/mm)||15.9 in
|Mounting Length (inches/mm)||6.7 in
|Front/Rear Mounting Length||2.95 in
|Power Throw Lever||Accessory|
*.125 MOA adjustments may be available as a modification to existing optics.

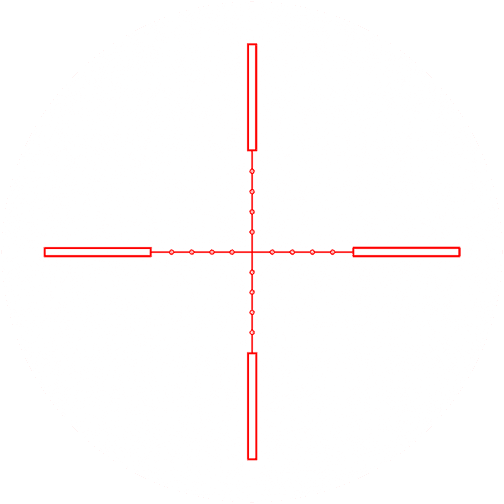

Developed by the military, the Mil-Dot reticle allows the sniper to efficiently estimate range to target. It is the most popular reticle design for law enforcement use.
Nightforce has improved upon older mil-dot styles with the creation of see through round dots placed on the vertical and horizontal cross lines that serve as reference points. All four posts can also be seen through. Instead of solid dots and posts that can obscure the target, the Nightforce design allows the sniper to more accurately and quickly estimate range to target.
The dots are spaced precisely 1 mil apart, representing 3.6 inches at 100 yards at specified power. The reticle is etched on precision multi coated compound glass, eliminating possible breakage and misalignment.
Nightforce illumination technology allows the reticle to glow red, and
it can be adjusted across a range of intensities. This insures excellent reticle contrast in low light when illuminated, or a well defined black reticle when not illuminated.
