Nocpix Vista H50R Rangefinding Thermal Monocular

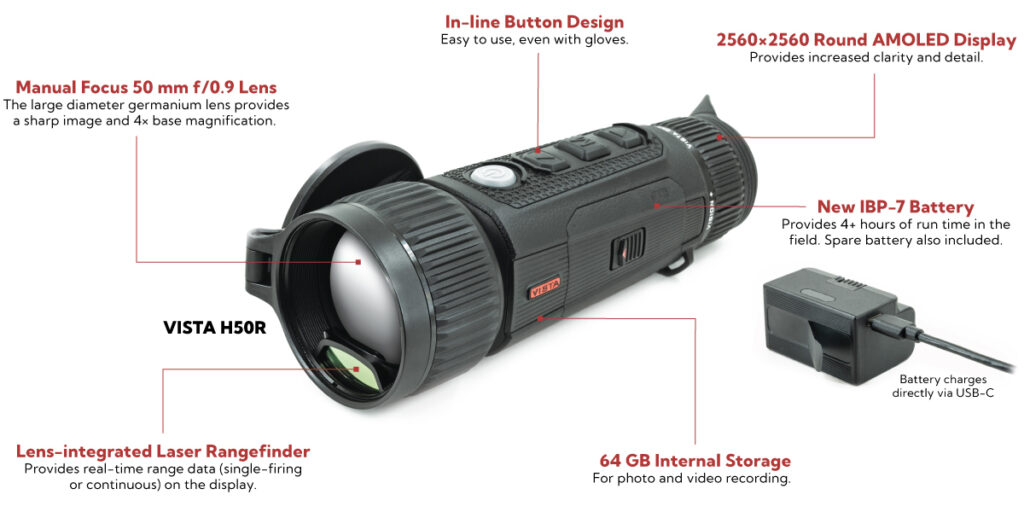

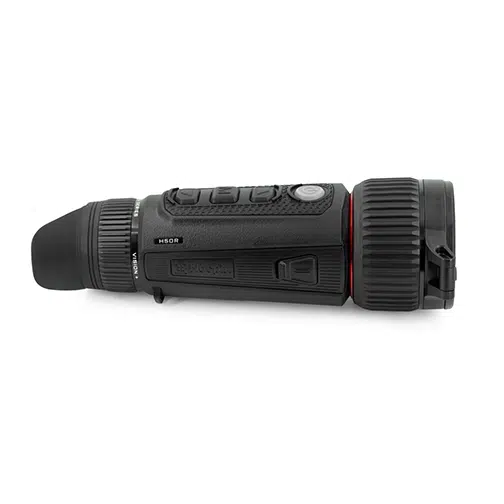

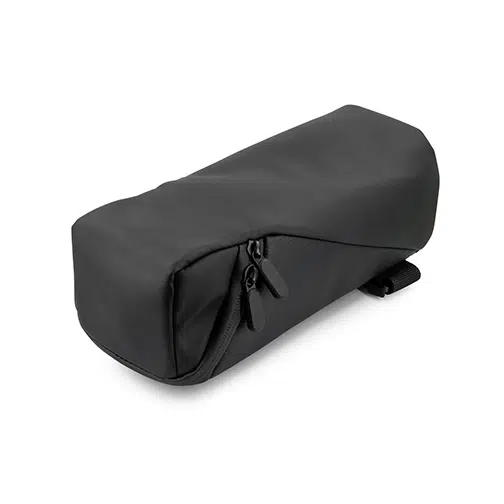

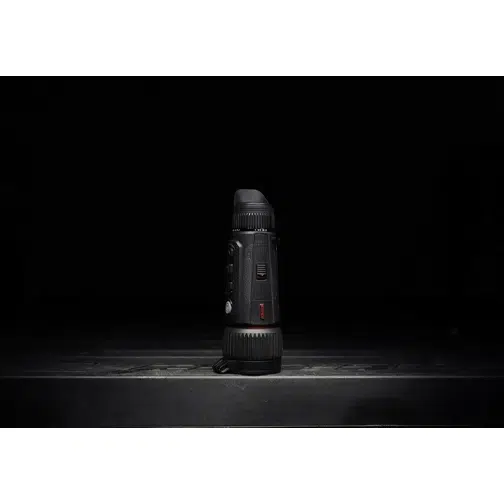

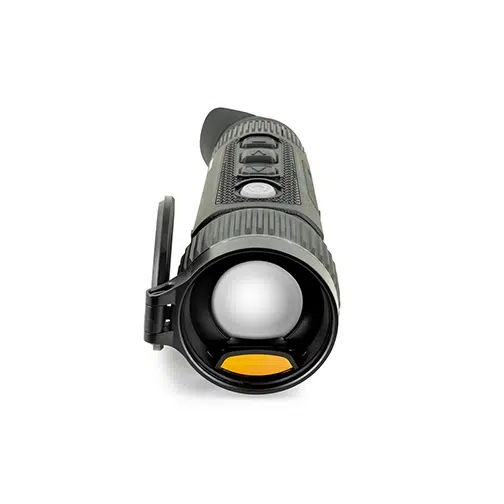

The Nocpix Vista H50R is a rangefinding thermal monocular that features an advanced 50mm f/0.9 germanium objective lens, offering exceptional clarity and detail. Equipped with a high resolution 650×512 thermal sensor and an impressive ≤15mK NETD sensitivity rating, the lightweight and ergonomic monocular delivers crystal clear images with remarkable detail and contrast, making it perfect for wildlife observation, and security applications. The lens integrated laser rangefinder enhances its functionality, boasting a maximum detection range of 1,200 yards with a remarkable sensitivity of ±1 yard. Its ergonomic design ensures comfortable handling, while the intuitive interface allows for seamless operation. Perfect for long range observation, the Vista H50R includes electronic image stabilization for a smooth, sharp image on the 2560×2560 round AMOLED display. Whether you’re scanning for coyotes or conducting night time surveillance, this is your go to tool for unparalleled thermal imaging performance. Lightweight and compact design easily fits in a pocket or the included MOLLE compatible pouch. Weatherproof rubberized texture increases durability and is not cold to the touch. Powered by a common 18650 style rechargeable battery with a spare battery included. Advanced R+ image processing provides enhanced image quality during digital zoom. Onboard photo, video, and audio recording. Comfortable ambidextrous vertical design.
Specifications |
||||||
Objective Focal Length | 50mm | |||||
Detection Range | 2400 Yards | |||||
Optical Magnification | 4X | |||||
Digital Magnification | 8X | |||||
Objective Lens Material | Germanium | |||||
Horizontal Angular Field of View | 8.8° | |||||
Vertical Angular Field of View | 6.6° | |||||
Objective Diameter | 50mm | |||||
Objective F# | 0.9 | |||||
Focusing Mechanism | Manual Focus | |||||
Eye Relief | 25mm | |||||
Diopter Range | -5 to +5 | |||||
Display Type | AMOLED | |||||
Display Resolution | 2560×2560 | |||||
Operating Temperature Range | -4°F~122°F | |||||
Ingress Protection | IP67 | |||||
Device Technology | Thermal Imaging | |||||
Sensor Type | Nocpix 640 | |||||
Sensor Resolution | 640×512 | |||||
Sensor Pixel Size | 12μm | |||||
Sensor Frame Rate | 60hz | |||||
Thermal Sensitivity | <15mk | |||||
Non-Uniformity Correction (NUC) | Manual, Automatic, Semi-Automatic | |||||
Color Palettes | White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian | |||||
Rangefinder | Integrated 1200 yd LRF | |||||
Picture-in-Picture | Yes | |||||
Connector Output | Power/Data | |||||
User-Updatable Firmware | Yes | |||||
Mobile App | Yes | |||||
One-Shot Zero | Yes | |||||
Stand-by Mode | Yes | |||||
Connector Type | USB-C | |||||
Wifi | Yes | |||||
Onboard Recording | Yes | |||||
Image Capture | Yes | |||||
Video Output | Yes | |||||
Storage Capacity | 64GB | |||||
Power Source | USB-C External, IBP-7 Li-ion Battery Pack | |||||
Run Time | 5+ | |||||
Warranty | 5 Years | |||||
Startup Time | <10 Seconds, Instant from Standby | |||||
External Power Source | USB-C | |||||
Country of Manufacture | China | |||||
Length | 7.83 | |||||
Width | 2.72 | |||||
Height | 3.23 | |||||
Weight | 22.93 oz | |||||
Housing Material | Polymer |
