Description

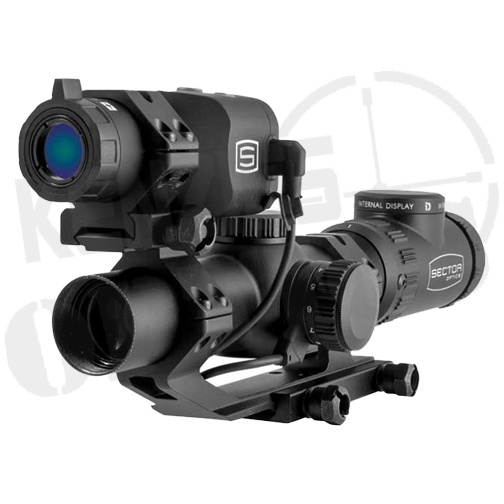

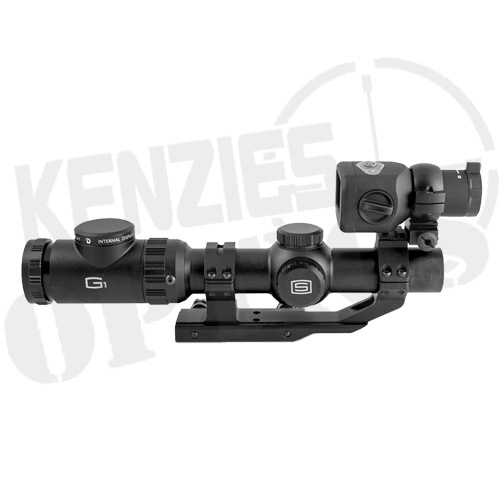

Sector Optics G1T3 System

The Sector Optics G1T3 System was designed so that users can easily view additional information about their observed area without having to take their eyes off the target. It delivers thermal images to the internal display (ID) within the scope eyepiece, via a wired connection. Built on the same foundations as the G1T2 System, the 1-8×24 scope features a 30mm tube diameter, and a glass etched, illuminated second focal plane reticle.

Sector Optics G1T3 System Features

State of the art optical riflescope with anti reflective low light performance coatings

Second focal plane reticle maintaining the same appearance throughout the 1-8x zoom range

Glass etched illuminated reticle with brightness control for low light conditions

Real optical 2-4x zoom on thermal imager

On board image processing enhancement modes

On board image capture

CR123 or rechargeable battery

First system to use ID embedded display technology

G1 Product Manual

T3 Product Manual


G1

Magnification 1 – 8x
Objective Lens Diameter 24 mm
Exit Pupil 24 – 3 mm
Eye Relief 3.5 in / 89 mm
Diopter Adjustment ±4 to -2.5
Field of View 116.5 – 14.4 ft / 100 yds
Field of View 38.6 – 4.7 m / 100 m
Tube Diameter 30 mm
Turret Style Capped, Finger Adjusted
Click Value 1/2 MOA
Elevation Adjustment Range 45 MOA
Windage Adjustment Range 45 MOA
Parallax Setting 100 yds
Size (L x W x H) 10 x 3 x 3 in

(254 x 76 x 76 mm)

Weight with Mount 23 oz

(652 g)

Picatinny Mount Height 1.5 in

(38.1 mm)

Illuminated Reticle Battery CR2032
Internal Display Monochrome Yellow OLED
Display Interface Special USB
Environmental IP67






T3

Size (L x W x H) 3.4 x 2 x 1.7 in

(87 x 51 x 42 mm)

Weight 5.3 oz

(150 g)

Zoom 2 – 4x
Field of View 28° – 14°
Focus Range 2 yds (m) to infinity
Spectral Range 8 – 14 micron
Power / Continuous Operation (1 ea) CR123, 3V / >4hrs
Sensor Resolution 160 × 120 px FLIR Lepton 3
Display (diagonal) 1.5 in / 38 mm Color OLED
Display Resolution 160×128
Operating Temperature 15° to 115° F / -10° to 45° C
Frame Rate/Shutter 9 Hz with shutter
Environmental IP66






G1T3

Size (L x W x H) 12 x 3.1 x 4.4 in

(305 x 79 x 113 mm)

Weight with Mount 31 oz

(880 g)
