Sector Optics T3 Thermal Imager


Out of stock

Want to be notified when this product is back in stock?

SKU: SO-T3-01 Categories: , , Tags: , , ,

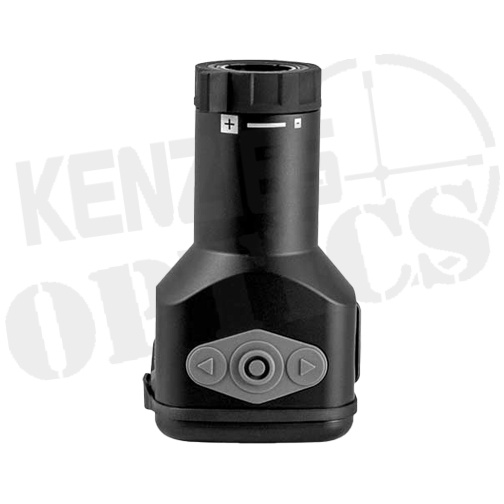

Sector Optics T3 Thermal Imager

The Sector Optics T3 Thermal Imager was designed to be ultra compact and offer the high quality features that are found in some of the more expensive Thermal Imagers. It features on board image processing enhancement modes, manual and automatic NUC capability and Photo on board recording. The Thermal Imager has multiple display views: white hot, black hot, nv green and color. It has flexible mounting options with the Picatinny rail wrist strap, user handle mount and more.

Sector Optics T3 Thermal Imager Features

On board image processing enhancement modes

Manual and automatic NUC capability

Photo on board recording

Battery read out and protection

Auto power save

Multiple display views: white hot/black hot/ NV green/color

Flexible mounting options: Picatinny rail wrist strap/ user handle mount and more

T3 Product Manual


Size (L x W x H) 3.4 x 2 x 1.7 in

(87 x 51 x 42 mm)

Weight 5.3 oz

(150 g)

Zoom 2 – 4x
Field of View 28° – 14°
Focus Range 2 yds (m) to infinity
Spectral Range 8 – 14 micron
Power / Continuous Operation (1 ea) CR123, 3V / >4hrs
Sensor Resolution 160 × 120 px FLIR Lepton 3
Display (diagonal) 1.5 in / 38 mm Color OLED
Display Resolution 160×128
Operating Temperature 15° to 115° F / -10° to 45° C
Frame Rate/Shutter 9Hz with shutter
Environmental IP66

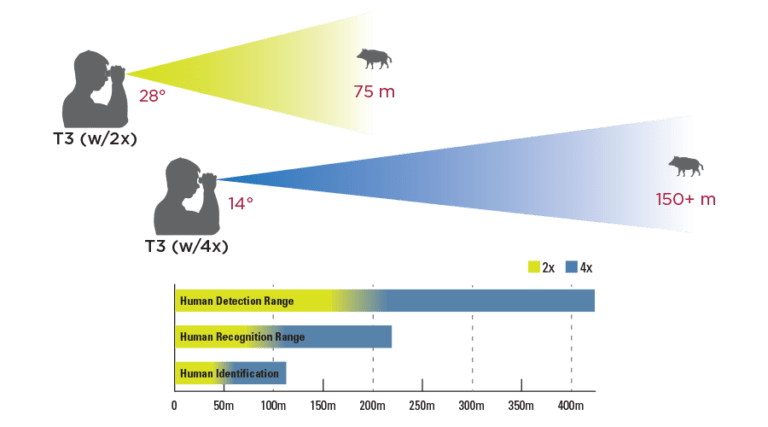

Range Performance
