Description

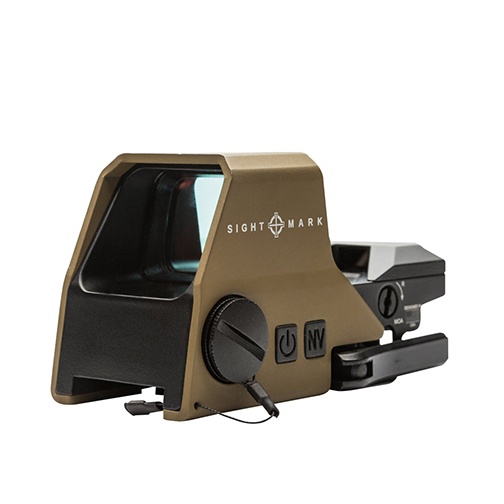

Built tough, the Ultra Shot A-Spec Reflex Sight is shock proof, IP55 weather-resistant, recoil rated up to .338 and constructed of a rugged, lightweight 6061-T6 aluminum body and protective shield. 1 MOA windage and elevation adjustments, up to 120 MOA of travel, get you on target quickly while the Interlock internal locking adjustment system and a single CR123A battery keeps you there with a battery life of 200 – 2,000 hours. The Ultra Shot A-Spec Reflex Sight also features a low battery indicator, digital switch controls, 1-hour auto shut-off, quick-detach picatinny mount and Sightmark’s lifetime warranty. The Ultra Shot A-Spec Reflex Sight is also perfectly compatible with the Sightmark XT-3 Tactical Magnifier (SM19062). Includes adjustment tools, CR123A battery, operation manual and neoprene cover.


FEATURES

Rugged, lightweight aluminum alloy housing

Protective aluminum shield

Quick detach picatinny mount

Advanced, parallax free lens design

Wide lens provides quick target acquisition

Slotted windage and elevation adjustments

Red reticle illumination

Low battery indication

Digital switch controls

10 reticle brightness levels

Night vision brightness modes

1 hour auto shutoff

Multiple reticle options

Scratch resistant lens coating

Interlok internal locking adjustment system


Specifications

Reticle
Color
Red
Reticle
Type
5 MOA dot
3 MOA dot
with 50 MOA
circle
3 MOA dot
with 50 MOA
crosshair
3 MOA dot
with 30 MOA
circle/crosshair
Reticle
Brightness
Setting
Off
1-10
NV
Magnification1
Objective
Overall
Dimension
33x24mm
Eye
Relief
(in/mm)
Unlimited
Adjustment
Value
1 MOA
Elevation
Range of
Adjustment
120 MOA
Windage
Range of
Adjustment
120 MOA
Parallax
Setting
10/9.1
yd/m
Finish
Color
Matte
black
Body
Material
Aluminum
6061-T6
Maximum
Recoil
.50 BMG
Max
Caliber
IP
Rating
IP55
water
resistant
Nitrogen
Filled
No
Fog
Proof
No
Shock
proofness
Yes
8ft/2.4m
Lens
Coating
AR Red
Mount
Type
Picatinny
Battery
Type
CR123A
Battery
Life
200-2,000
Hours
Battery
Voltage
3V
Operating
Temperature
F/C
-22 to 160F
-30 to 71C
Length
(in/mm)
4.33/110
in/mm
Width
(in/mm)
1.96/50
in/mm
Height
(in/mm)
2.28/58
in/mm
Weight
oz
10.8oz
