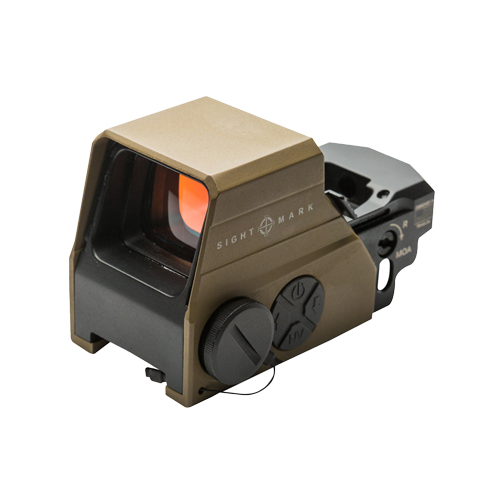

Sightmark Ultra Shot M-Spec FMS Reflex Sight

Sightmark Ultra Shot M-Spec FMS Reflex Sight was designed shooters in mind. It brings repeatable precision, fast target acquisition and rugged mil-spec reliability in virtually any environment. It features a wide angle lens system with scratch resistant and anti-reflective red coating with a patented integrated sunshade to protect you from glare and rain. The M-Spec has an illuminated red 65 MOA circle dot reticle with 10 brightness settings, night vision compatibility, a strong field of view and unlimited eye relief.

Sightmark Ultra Shot M-Spec FMS Features

Rugged lightweight magnesium alloy housing

Protective aluminum shield

Patented integrated sunshade

Fixed picatinny mount

Motion sensing auto on/off activation

Low battery indication

12 hour auto shut off

Advanced parallax free lens design

Wide lens provides quick target acquisition

Slotted windage and elevation adjustments

Red reticle illumination

Digital switch controls

10 reticle brightness levels

Night vision brightness modes

100% waterproof and dustproof

Scratch resistant lens coating

Interlok internal locking adjustment system

Included in Package

Neoprene cover

Adjustment tools CR123A battery

Product Manual


Specifications

Reticle, Type 65 MOA Circle Dot Crosshair (60 MOA circle w/ 5 MOA subtension, 2 MOA central dot)
Reticle, Color Red
Reticle Brightness Setting Off, 1-10, NV 1-6
Magnification 1 x
Objective Lens 33×24 mm
Eye Relief Unlimited
Elevation Range of Adjustment 120 MOA
Windage Range of Adjustment 120 MOA
Adjustment Value 1 MOA
Parallax Setting 10yd

(9.1m)

Finish/Color Dark Earth
Body Material Magnesium alloy
Maximum Recoil .50 BMG
IP Rating (waterproof) IP68 – waterproof to 40ft

(12m)

Nitrogen Filled No
Shockproof Yes, 8ft

(2.4m)

Fog Proof No
Lens Coating AR Red
Mount Type Picatinny
Battery Type CR123A
Battery life, hours 200 – 2,000
Battery Voltage, V 3
Operating Temperature -22 to 160F

(-30 to 71C)

Length 4.01in

(102mm)

Width 1.85in

(47mm)

Height 2.32in

(59mm)

Weight, oz 9.6
