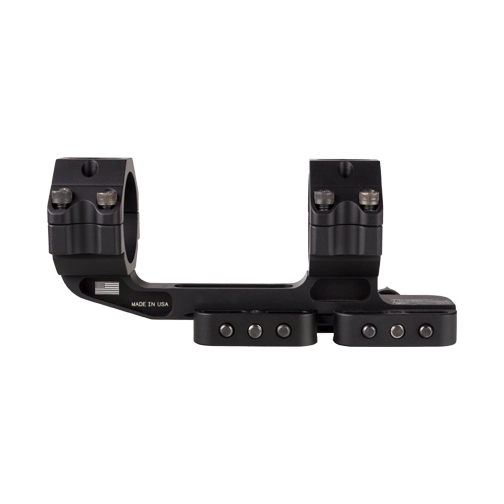

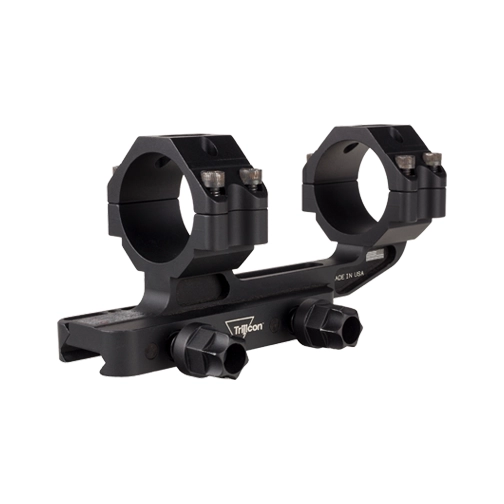

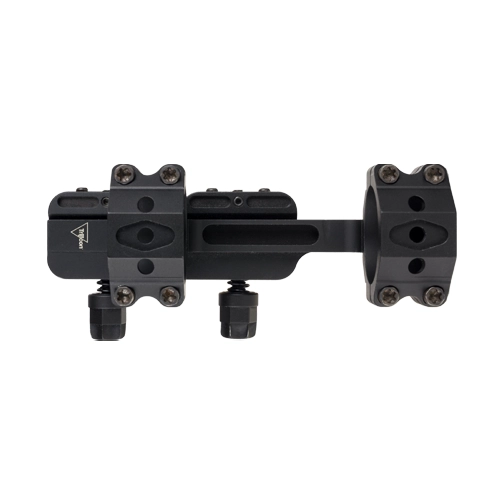

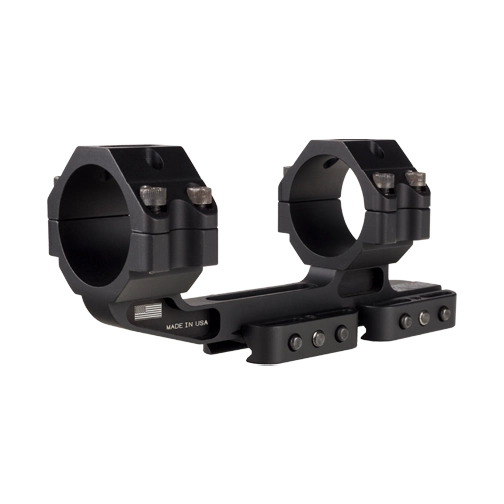

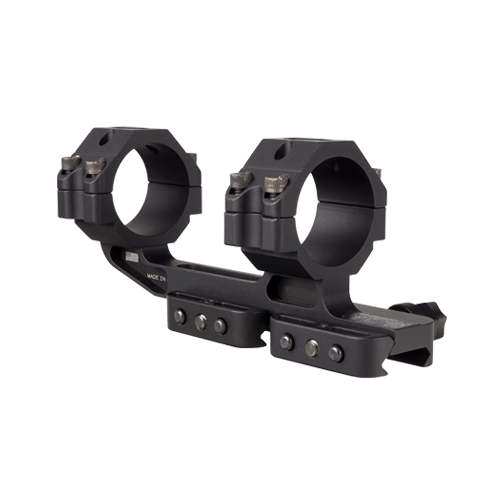

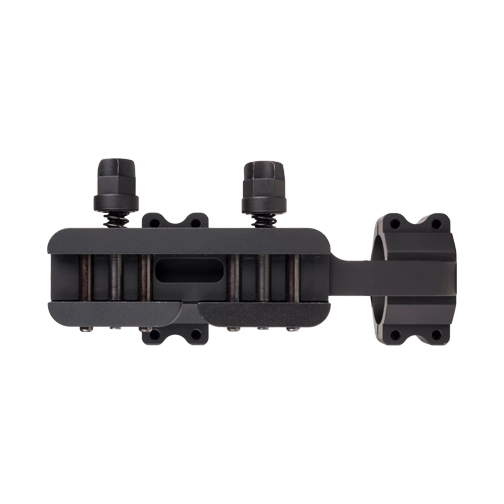

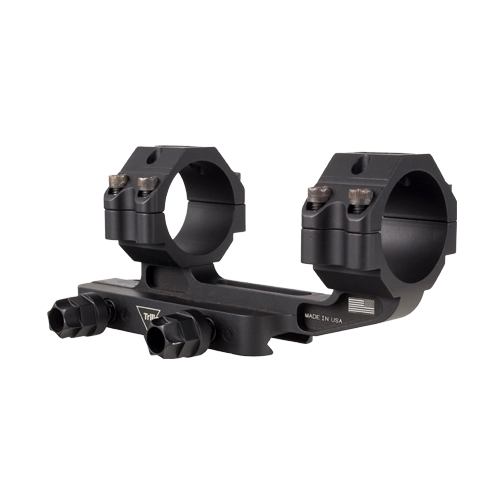

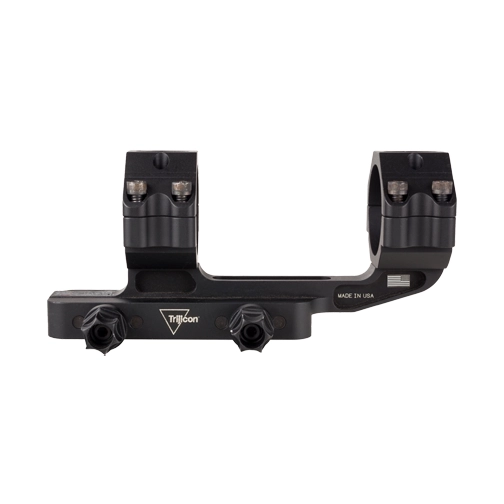

Trijicon 30mm Cantilever Mount – 20 MOA w/ Q-LOC Technology

The Trijicon 30mm Cantilever Mount -20 MOA w/ Q-LOC Technology was designed to keep the optic as low as possible for hunting and long range precision rifle applications. Featuring a Mil-Spec drop test rated 6061-T6 aluminum design and an easy to use one handed tool less mounting system. The spring loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.

The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.

Designed specifically for variable power power optics, this lightweight mount is perfect for mounting Trijicon Variable power optics with an objective lens up to 56mm on any weapon platform with a full Picatinny rail. Trijicon Cantilever Mounts with Q-LOC Technology  at a height of 1.535 will also match the standard height above rail for all clip-on devices.

Made in the USA.

Distance from Top of Mounting Rail to Optical Axis: 1.535″

Cant: 20 MOA (Matches height above rail for all potential clip-on devices)

Torque Spec (Rail):

Spring Tension Only: 12-16 in. / lbs.

Can be Tightened to: 30-38 in. / lbs.

Torque Spec (Ring Caps): 14-16 in. / lbs.

NOTE: Fits objective les up to 56mm

Trijicon 30mm Cantilever Mount Features

Quick Release, Return to Zero

Multiple proprietary recoil lugs ensure total rail engagement. Easily remove and re-attach without needing to confirm zero.

Automatic Retention Keeps Optic Secure

Heavy duty springs ensure secure retention under heavy, repeated recoil. Facilitates one handed mounting.

Snag Resistant Knob Design

Compact, circular design minimizes hazards of gear snags.

Precision Cut Dimensions

Ensures optimal placement on MIL-STD 1913, NATO, non-mil spec, and even damaged rails.

Proven Durability

Machined from 6061 aluminum for outstanding, repeatable performance.

Mounting Instructions
