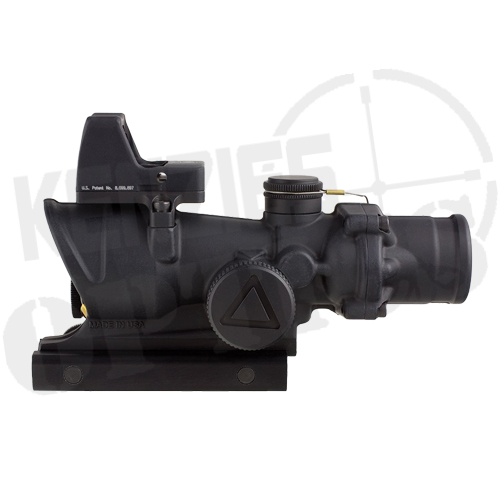

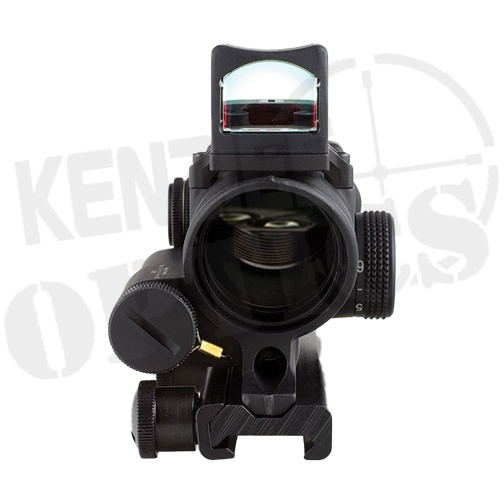

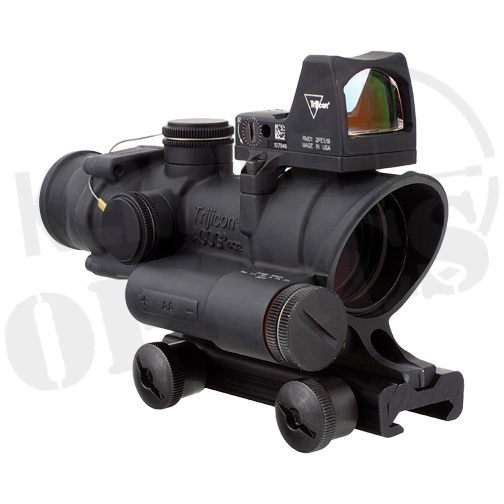

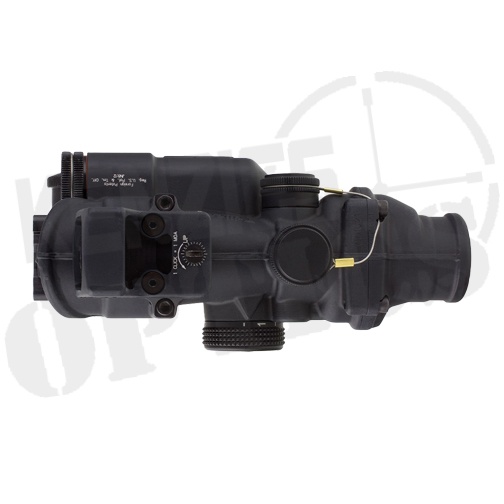

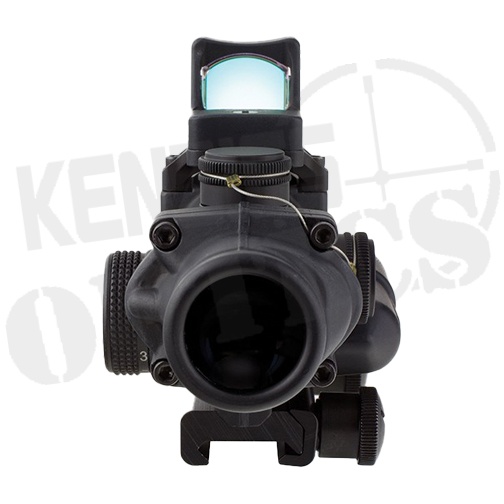

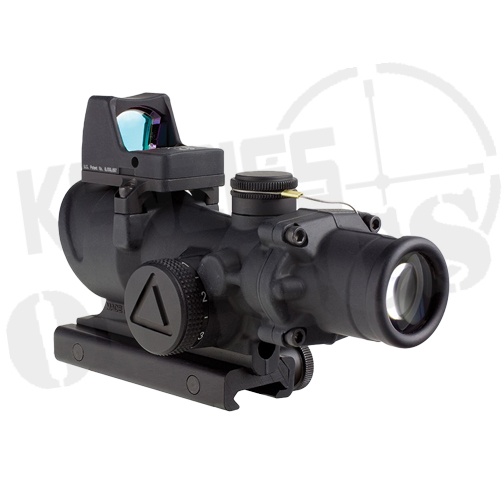

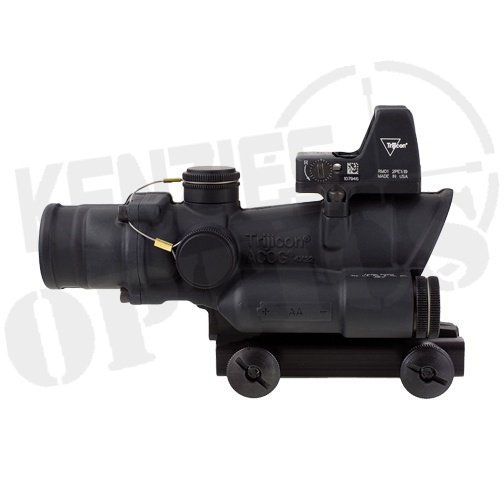

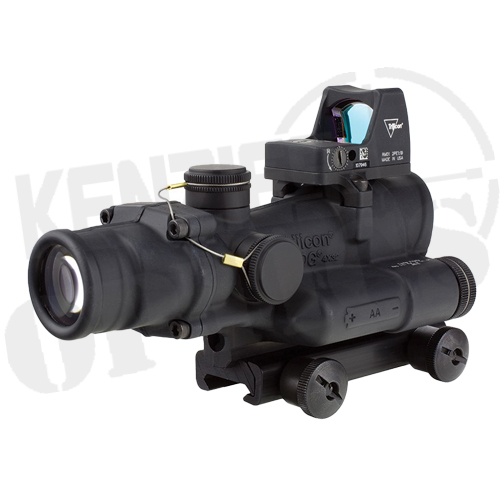

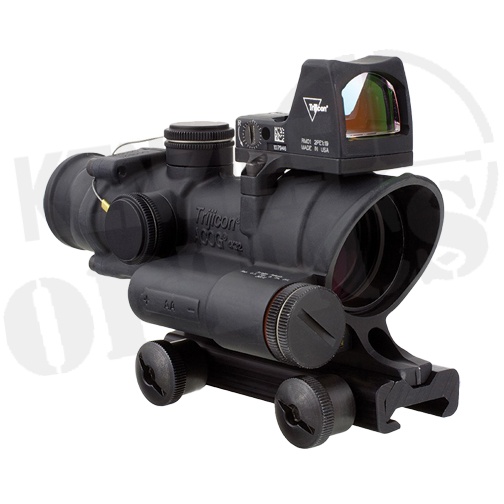

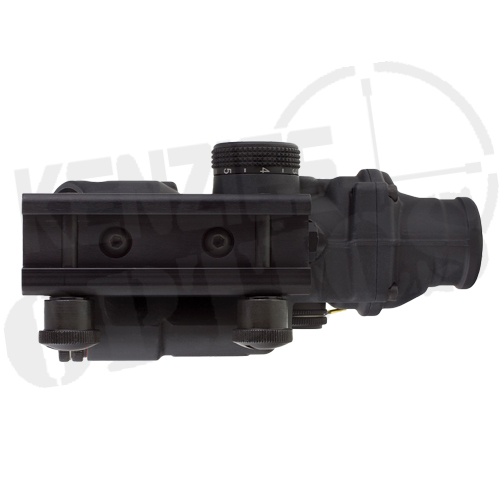

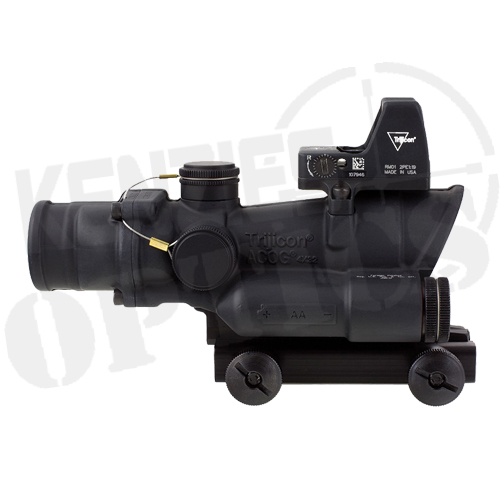

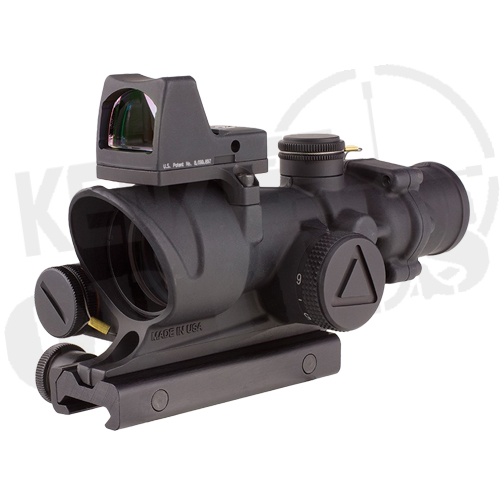

Trijicon ACOG 4x32mm LED / 3.25 RMR Type 2 Combo

The Trijicon ACOG 4x32mm LED / 3.25 RMR Type 2 Combo was designed to be the ultimate aiming solution for both Close Quarter Battle (CQB) situations and longer distance shots that require additional magnification. The quick acquisition of the RMR sight and the precise aiming capabilities provided by the magnified ACOG, the user has the ability to select the proper aiming solution for the situation at hand.  LED ACOG is the first to offer 6 user selectable brightness controls and has an ‘off’ setting between each setting. It is powered by a single AA battery, and can run for over 12,000 continuous hours. The RMR Type 2 (RM01) features a 3.25 MOA reticle.  Both the ACOG and the RMR have a rugged construction. The combo gives the user the best of both worlds.

Trijicon ACOG 4x32mm LED / 3.25 RMR Type 2 Combo Features

Always On, Always Ready

Most ACOG models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.

Take Control

Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5×35 LED and 4×32 LED models both offer six adjustable brightness settings.

Rugged, Reliable Housing Design

Fixed power design allows for minimal moving parts to create a nearly indestructible sighting system.

“Both Eyes Open” Design

“Both eyes open” shooting using Trijicon’s Bindon Aiming Concept (BAC) feature allows for improved situational awareness.

Outstanding Clarity

The quality of the glass and multi coated lenses maximize light gathering capabilities and clear field of view with zero distortion.

Exact Target Distances & Holds

Most ACOG models feature a bullet drop compensating and target ranging reticle for decisive aiming.

Combat Proven

No other magnified optic has been used more in combat than the ACOG.

Shock Resistant

Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.

Waterproof

Exceptional waterproof performance that exceeds military standards. Dry nitrogen filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry nitrogen filled housing that mitigates fogging.

Spec Sheet

Reticle Dimensions




Specifications

Length x Width x Height 6 in x 2.9 in x 2.5 in

(152.4mm x 73.66mm x 63.5mm)

Weight 19.3 oz.

(547.15g)

Magnification 4x
Objective Size 32mm
Reticle Pattern Crosshair
Day Reticle Color Red
Night Reticle Color Red
Bullet Drop Compensating (BDC) Yes
Caliber 0.223
Bindon Aiming Concept (BAC) Yes
Illumination Source LED
Power Source AA Lithium or Alkaline Battery
Battery Life Over 12,000 hours on setting #4 using supplied alkaline battery at 21 deg C (70 deg F)
Adjustment 2 clicks per inch @100 yards
Eye Relief 1.5 in.

(38.1mm)

Exit Pupil 0.32 in.

(8.13mm)

Field of View (degrees)
Field of View (feet) 36.8 ft. @ 100 yds.

(12.27m @ 100m)

Mount Flattop Thumbscrew Mount (TA51)
Housing Material Forged Aluminum
Finish Matte Black
