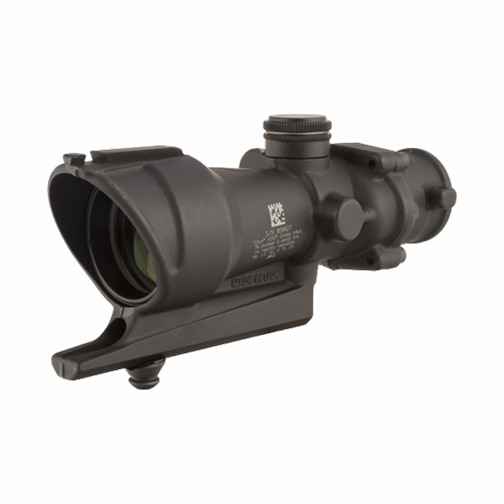

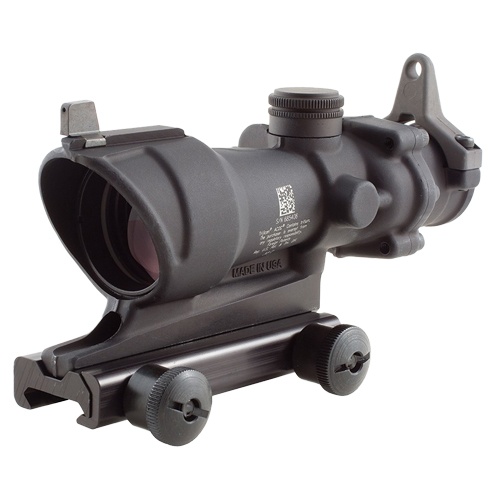

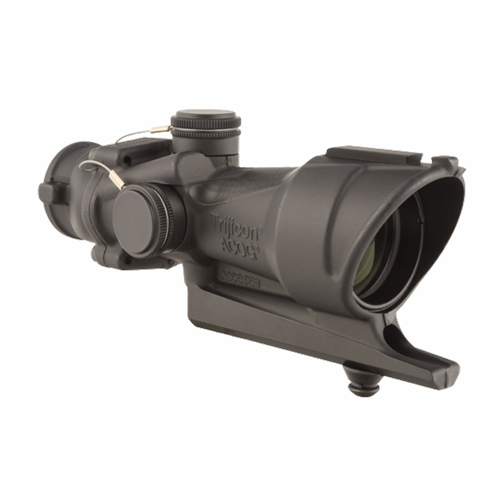

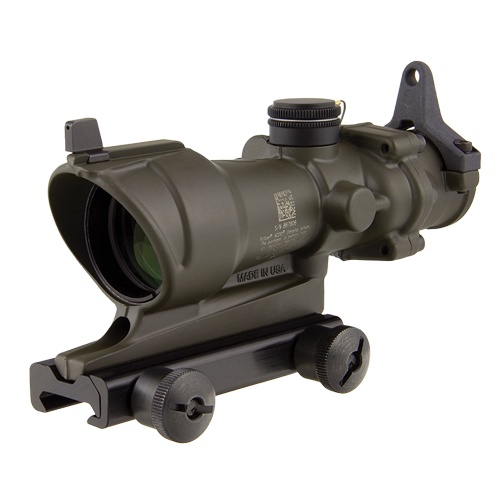

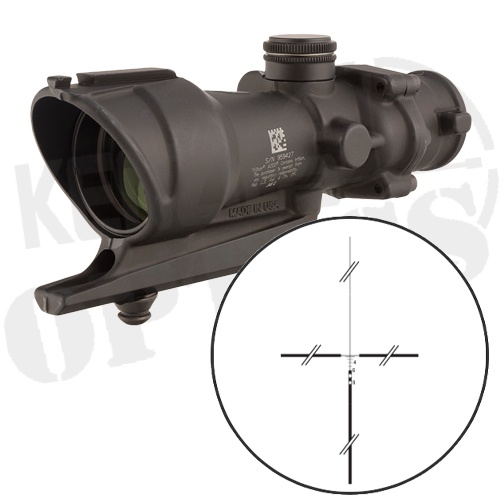

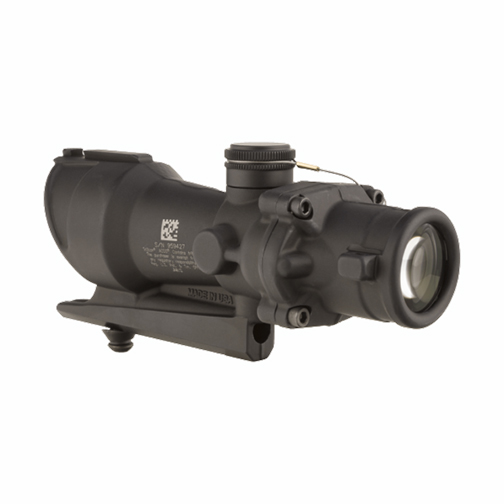

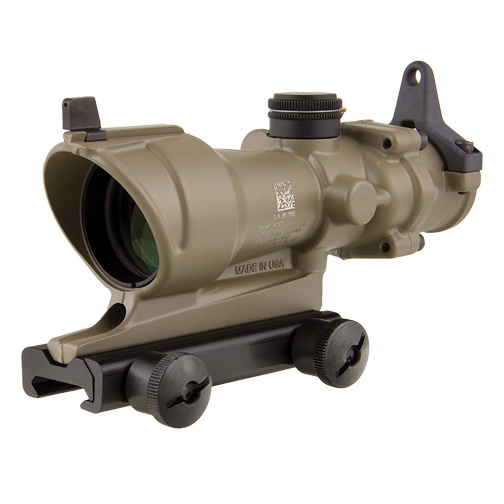

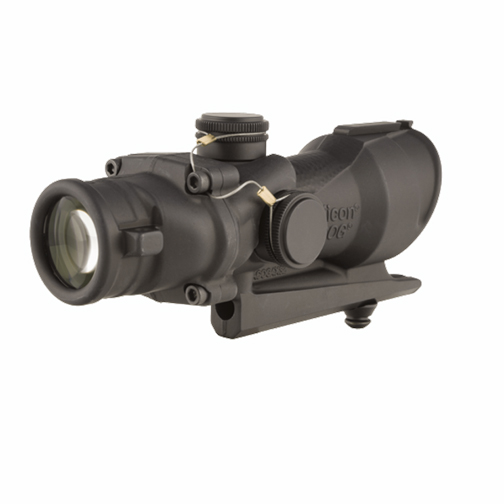

Trijicon ACOG 4x32mm

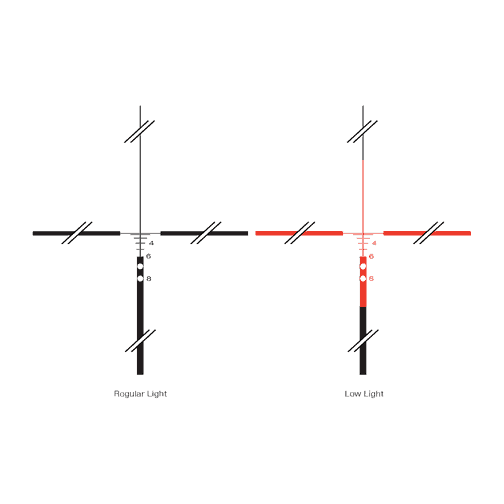

The Trijicon ACOG 4x32mm concept is simple; a durable scope with a reticle that illuminates in low light situations. And the best part is that it doesn’t require batteries. Over 25 years later, the original ACOG stands the test of time and remains one of our most popular items. ACOG 4×32 Scope with Full Line Red Illumination features black crosshairs during daytime and tritium illuminates reticle at night. The Trijicon ACOG 4x32mm reticle ranges out to 800 meters for 5.56 (.223 cal).
Trijicon ACOG 4x32mm Features
Battery Free Illumination
Features a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.
Rugged Aluminum Alloy Housing
Forged 7075-T6 aircraft aluminum-alloy housing provides for a nearly indestructible sighting system.
“Both Eyes Open” Design
The Trijicon ACOG TA01 4×32 rifle scope can be used as a CQB sight when shooting “both eyes open,” utilizing the Bindon Aiming Concept (see below).
Superior Quality Glass Lenses
Multi coated lenses provide superior clarity and light gathering capabilities with zero distortion.
Fewer moving parts than a variable optic equals more durability.
No other magnified optic has been used more in combat than the ACOG.
Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.
Dry nitrogen filled to eliminate fogging. Five times more waterproof than military standard requirements.
Limited Lifetime Warranty
Tritium lamp is warranted to illuminate for 15 years on fiber optic scopes and 10 years on non-fiber optic scopes.
|Bullet Drop Compensator||Yes|
|Illumination Source||Fiber Optics & Tritium|
|Day Reticle Color||Red|
|Night Reticle Color||Red|
|Calibration||0.223 (20in barrel)|
|Bindon Aiming Concept||Yes|
|FOV @ 100 yards||36.8ft|
|Adjustment @ 100 yards (clicks/in)||2|
|Mount Comes With||Carry Handle Screw and washer set (TA30)|
|Housing Material||Forged Aluminum|
Bindon Aiming Concept
Although human vision is based on a binocular or two-eyed vision of an image, traditional riflescopes present a monocular view of the target. This monocular view significantly decreases vision capabilities and makes it difficult to acquire and track targets.
Traditionally, “both eyes open” aiming has been widely used with iron sights or reflex-style sights, but use with a magnified scope was often deemed implausible. The Bindon Aiming Concept (BAC) is a method of combining “both eyes open” aiming while using a magnified scope.
Shooting with “both eyes open” offers several advantages to the user: better situational awareness, a far superior sense of balance, a wider field-of-view, and far less eye strain. These advantages aid the shooter in quick target acquisition and improved shooting performance.
When tracking a moving target with your shooting eye through a riflescope, the image appears blurry as the riflescope moves due to the magnification. This blurriness forces the brain to automatically switch eye focus and take in target data from the non-shooting eye (non-magnified). Due to the use of a highly illuminated aiming point in most Trijicon optics, the reticle remains visible in the shooting eye and your brain will superimpose the aiming point onto the non-magnified target.
When the weapon is moving onto the target, you will not notice any magnification, all that will be seen is the illuminated reticle. Once you slow the weapon onto the target, the target will “zoom” in, allowing you to identify and engage more accurately if necessary. This aiming concept happens naturally, without conscious thought, for those with equal or close-to-equal vision in both eyes.
Finding Your Dominant Eye
In order to maximize the potential of “both eyes open” aiming, you must know which eye is dominant. To determine this, conduct the following test:
- First, OPEN BOTH EYES, and hold you index finger out in front of you line of sight on a fixed object.
- Next, CLOSE your non-shooting eye and note the position of finger on target.
- Then OPEN BOTH eyes, keeping finger on target.
- Finally, CLOSE opposite eye and note position of finger on target.
If your finger/aiming point does NOT move, that is your dominant eye. If your finger/aiming point moves off target at a great distance, your OTHER eye is dominant.
Carry Handle Screw and washer set (TA30)
4×32 Scopecoat (TA64)
Lanyard Assembly for Adjuster Caps (TA71E)
Trijicon Logo Sticker (PR15)
