Description

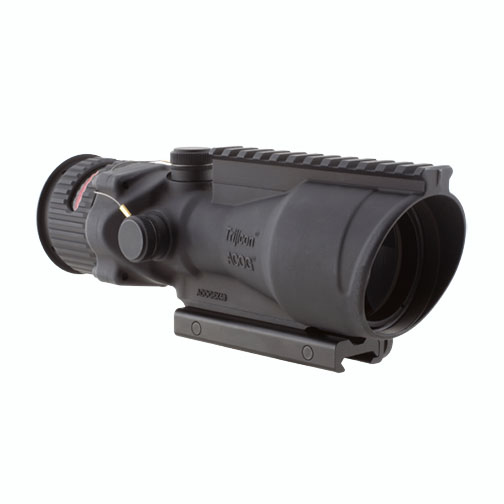

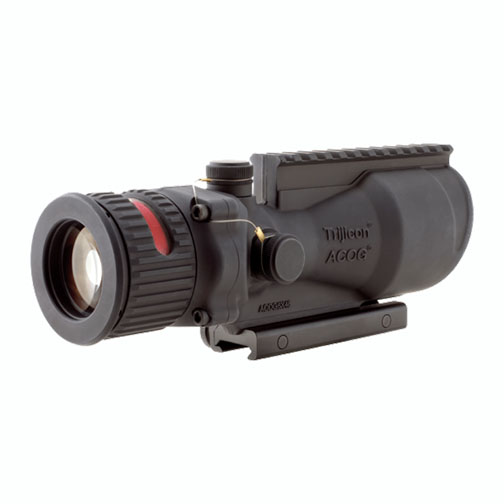

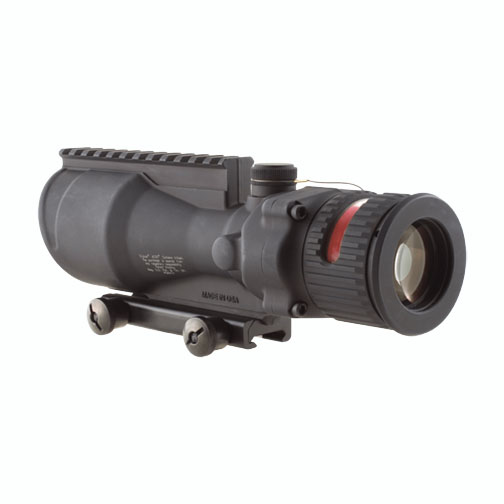

Trijicon ACOG 6x48mm

The Trijicon ACOG 6×48 has fulfilled the military’s need for a magnified, self luminous tactical sight that enhances target identification and increases hit probability on extended range shots. Powered by Trijicon’s patented fiber optics and tritium based technology. It also incorporates a bullet drop compensator (BDC) with additional aiming points estimated for trajectory of out to 800 meters. To further improve target acquisition and hit potential, the new ACOG 6×48 incorporates Trijicon’s Bindon Aiming Concept (BAC) – a revolutionary both eyes open method of aiming. Like other members of the Trijicon ACOG line, the new ACOG 6×48 is battery free and waterproof to 500 feet.

Trijicon ACOG 6x48mm Features

Always On, Always Ready

Most ACOG models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.

Take Control

Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5×35 LED and 4×32 LED models both offer six adjustable brightness settings.

Rugged, Reliable Housing Design

Fixed power design allows for minimal moving parts to create a nearly indestructible sighting system.

“Both Eyes Open” Design

“Both eyes open” shooting using Trijicon’s Bindon Aiming Concept (BAC) feature allows for improved situational awareness.

Outstanding Clarity

The quality of the glass and multi coated lenses maximize light gathering capabilities and clear field of view with zero distortion.

Exact Target Distances and Holds

Most ACOG models feature a bullet drop compensating and target ranging reticle for decisive aiming.

Combat Proven

No other magnified optic has been used more in combat than the ACOG.

Shock Resistant

Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.

Waterproof

Exceptional waterproof performance that exceeds military standards. Dry nitrogen filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry nitrogen filled housing that mitigates fogging.

Included

Picatinny Rail Adapter (TA75)

LENSPEN (TA56)

Lanyard Assembly for Adjuster Caps (TA107)

Trijicon Logo Sticker (PR15)

ACOG Manual

Warranty Card


Specifications

Magnification 6x
Objective Size 48 mm
Bullet Drop Compensator Yes
Length 9 in
Weight 36.9 oz
Illumination Source Fiber Optics & Tritium

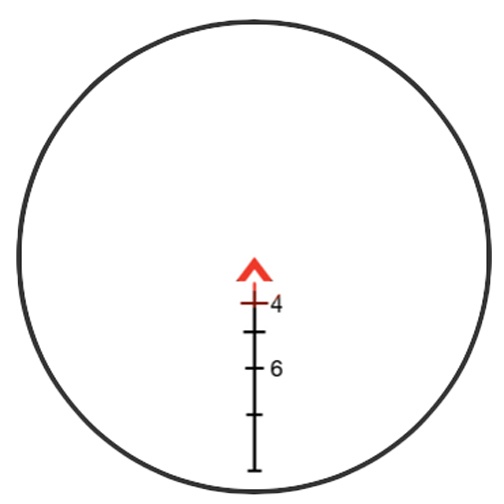

Reticle Pattern Chevron

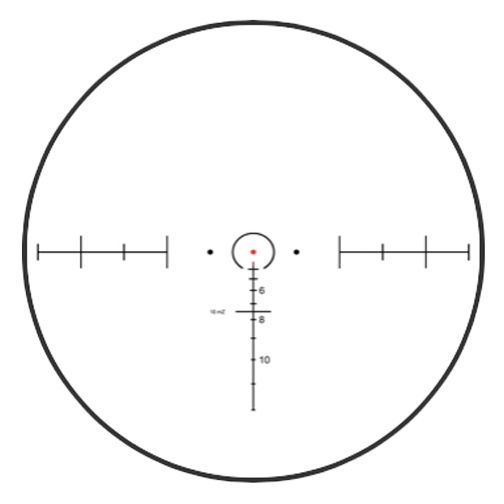

Horseshoe Dot
Day Reticle Color Red

Green

Amber

Night Reticle Color Red

Green

Amber

Calibration .223

M240

.50 BMG

Bindon Aiming Concept Yes
Eye Relief 2.7 in
Exit Pupil 8 mm
FOV (Degrees) 3.3
FOV @ 100 yards 17 ft
Adjustment @ 100 yards (clicks/in) 4
Mount TA75
Mount Comes With TA75
Housing Material Forged Aluminum

Bindon Aiming Concept

Although human vision is based on a binocular or two-eyed vision of an image, traditional riflescopes present a monocular view of the target. This monocular view significantly decreases vision capabilities and makes it difficult to acquire and track targets.

Traditionally, “both eyes open” aiming has been widely used with iron sights or reflex-style sights, but use with a magnified scope was often deemed implausible. The Bindon Aiming Concept (BAC) is a method of combining “both eyes open” aiming while using a magnified scope.

Shooting with “both eyes open” offers several advantages to the user: better situational awareness, a far superior sense of balance, a wider field-of-view, and far less eye strain. These advantages aid the shooter in quick target acquisition and improved shooting performance.


Utilizing BAC

When tracking a moving target with your shooting eye through a  riflescope, the image appears blurry as the riflescope moves due to the magnification. This blurriness forces the brain to automatically switch eye focus and take in target data from the non-shooting eye (non-magnified). Due to the use of a highly illuminated aiming point in most Trijicon optics, the reticle remains visible in the shooting eye and your brain will superimpose the aiming point onto the non-magnified target.

When the weapon is moving onto the target, you will not notice any magnification, all that will be seen is the illuminated reticle. Once you slow the weapon onto the target, the target will “zoom” in, allowing you to identify and engage more accurately if necessary. This aiming concept happens naturally, without conscious thought, for those with equal or close-to-equal vision in both eyes.


Finding Your Dominant Eye

In order to maximize the potential of “both eyes open” aiming, you must know which eye is dominant. To determine this, conduct the following test:

  1. First, OPEN BOTH EYES, and hold you index finger out in front of you line of sight on a fixed object.
  2. Next, CLOSE your non-shooting eye and note the position of finger on target.
  3. Then OPEN BOTH eyes, keeping finger on target.
  4. Finally, CLOSE opposite eye and note position of finger on target.

If your finger/aiming point does NOT move, that is your dominant eye. If your finger/aiming point moves off target at a great distance, your OTHER eye is dominant.


The TA648 also includes

Picatinny Rail Adapter(TA75)
LENSPEN(TA56)
Lanyard Assembly for Adjuster Caps(TA107)
Trijicon Logo Sticker(PR15)
Manual
Warranty Card



More from Trijicon

Additional information

Weight N/A
Reticle Options

,

Reticle Color

Amber, Green, Red

Caliber

.223, .308/7.62, .50 BMG, .50 BMG M2, M240
