Description

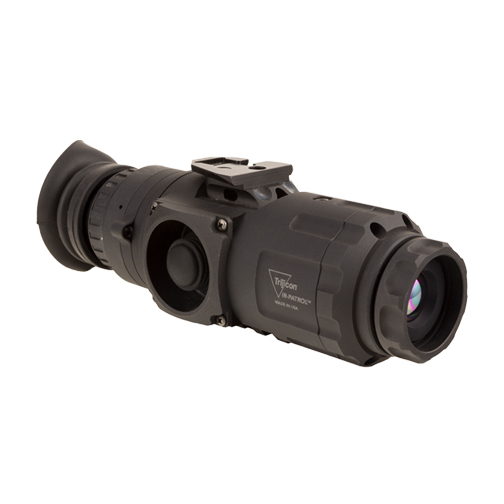

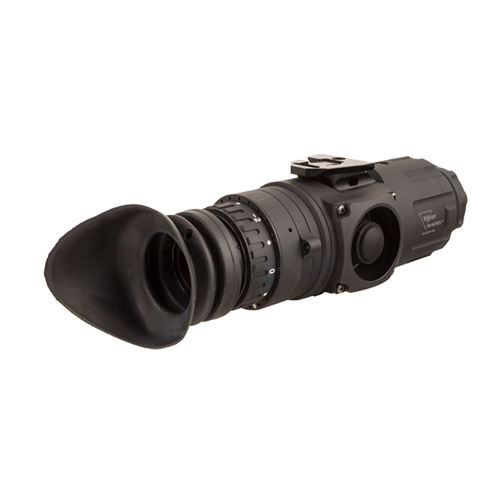

The IR-PATROL™ offers a high performance thermal core, along with the industry leading 640 x 480 VGA OLED Micro Display, to give the user optimal detection capabilities and clear, detailed imagery they can trust to conquer darkness.
SUPERIOR PROCESSING POWER
VERSATILE BY DESIGN
HANDS FREE OBSERVATION
With the IR-PATROL M250, you can take advantage of the lightweight design and fast, 60 Hz frame rate system that is optimized for helmet mounting. The optional Wilcox® adapter kit makes it easy to fit the system on most helmets.
THUMBSTICK SYSTEM CONTROLLER
AFOCAL MAGNIFIER LENS MULTIPLIERS
EDGE DETECT TACTICAL MODE
MAXPOL POLARITY WHITE HOT AND BLACK HOT
The IR-PATROL comes with an easy to control polarity mode that lets you switch between three levels of white hot and three levels of black hot. Why limit yourself to one setting? With low, medium and high levels, you can pick your perfect mode.
Specifications |
|
| Application | Handheld / Tripod Mounted |
| Sensor Resolution | 640 x 480 |
| Sensor Micron | 12 μm |
| Sensor Type | Vox Vanadium Oxide |
| Frame Rate | 60 Hz |
| Display Type | Digital OLED |
| Thermal Sensitivity | < 50mK |
| Special Response | 8 to 12 MICRONS |
| Field of View | 22° |
| Eye Relief | 27 mm |
| Diopter | -6 / +2 |
| Magnification / E-Zoom | 1x Optical / 8x Digital |
| Objective Lens | 19 mm f/1.2 |
| Battery Type | CR123 Lithium |
| Battery Life | Approx. 2 hours / battery |
| Environmental | -40°C to +55°C Operating -45°C to +75°C Storage |
| Weight | 16 oz. / 454 g |
| Dimensions | 5.95 in. x 2.0 in. x 2.95 in. |
| User Interface | Thumbstick |
| Mounting Kit | Wilcox® Shoe Interface / Wilcox® Bridge Assembly Interface |
| Download Cable | Yes |
| Shoe Interface | Yes |
| Polarity / E-Zoom | Yes |
| Edge Detect | Yes |
| Image Capture | Yes |
| Video Out | Yes |
| Reticle Feature | No |
| Configuration Level | Yes |
Trijicon Products are subject to export controls administered by the U.S. Department of Commerce or the U.S. Department of State and require an export license to be shipped outside of the United States. Export or re-export without prior authorization from the U.S. Government is prohibited. For this reason, we only sell directly to established distributors, who have provided the necessary information and documentation required for proper authorization to export.
For additional information, please contact the Trijicon Export Compliance Team by calling 1-248-960-7700.
