Description

Vortex Crossfire II 3-9x50mm Scope

The Vortex Crossfire II 3-9x50mm Scope is where high performance meets economical. The clear, tough and bright Crossfire II is built to exceed the performance standards of similarly priced scopes. It features a long eye relief, a fast focus eyepiece, fully multi coated lenses, and a resettable MOA turrets.

Vortex Crossfire II 3-9x50mm Scope Features

Fully Multi-Coated

Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air to glass surfaces.

Second Focal Plane Reticle

Scale of reticle maintains the same ideally sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

Tube Size

1 inch diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications.

Single Piece Tube

Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.

Aircraft Grade Aluminum

Constructed from a solid block of aircraft grade aluminum for strength and rigidity.

Waterproof

O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.

Fogproof

Nitrogen gas purging prevents internal fogging over a wide range of temperatures.

Shockproof

Rugged construction withstands recoil and impact.

Hard Anodized Finish

Highly durable hard coat anodization provides a low glare matte surface and helps camouflage the shooter’s position.

Capped Reset Turrets

Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps provide external protection for turret.

Fast Focus Eyepiece

Allows quick and easy reticle focusing.

Product Manual


Reticles

V-Brite (MOA)

Uses the V-Plex format along with battery powered electronics to illuminate the center dot for better low light performance. Good for hunters/shooters during extra low light conditions.

Subtension detail for Crossfire II 3-9×50 riflescope with V-Brite MOA reticle.

Dead-Hold BDC (MOA)

Customized hashmark design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.

Subtension detail for Crossfire II 3-9×50 riflescope with Dead-Hold BDC MOA reticle.

Straight Wall BDC (MOA)

The Straight Wall BDC MOA Reticle is optimized for popular straight wall cartridges including .450 Bushmaster, .45-70 Government and 350 Legend.  At a 100 yard zero, the Straight Wall BDC offers holdovers for 150, 200, 250 and 300 yards when used with the .450 Bushmaster, .45-70 Government and 350 Legend cartridges.

Subtension detail for Crossfire® II 3-9×50 riflescope with Straight-Wall BDC MOA reticle.

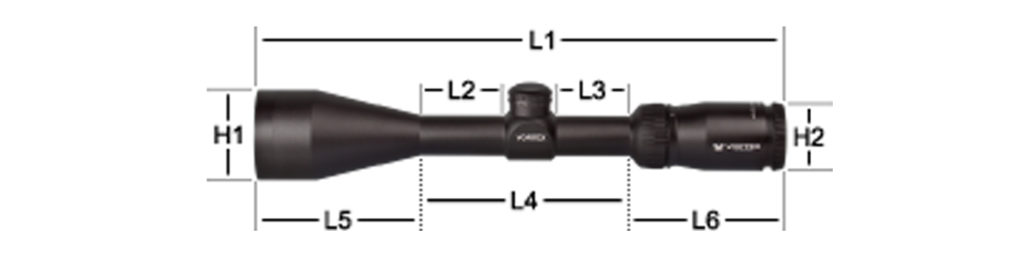

Specifications

L1 12.80
L2 2.00
L3 1.8
L4 5.1
L5 4.10
L6 3.65
H1 2.27
H2 1.73

Specifications

Magnification 3-9x
Objective Lens Diameter 50 mm
Eye Relief 3.8 inches
Field of View 32-12.9 ft/100 yds
Tube Size 1 inch
Turret Style Capped
Adjustment Graduation 1/4 MOA
Travel Per Rotation 15 MOA
Max Elevation Adjustment 60 MOA
Max Windage Adjustment 60 MOA
Parallax Setting 100 yards
Length 12.80 inches
Weight 18.4 oz
