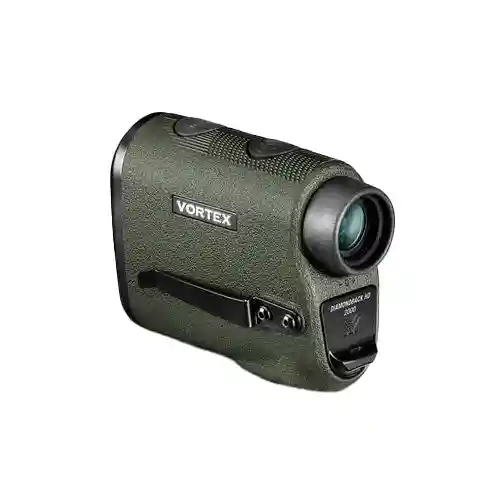

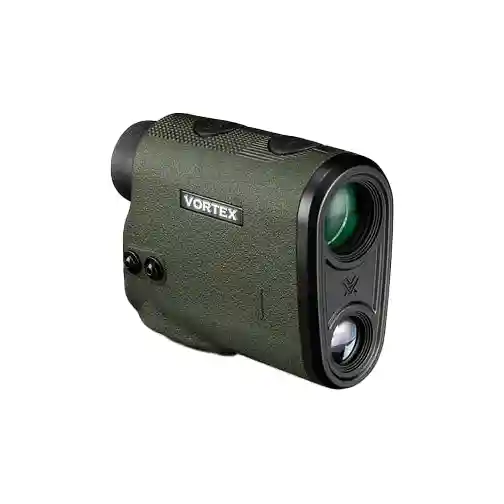

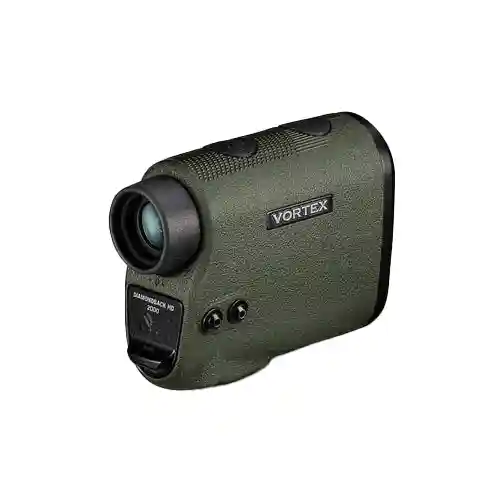

Vortex Diamondback HD 2000 Laser Rangefinder

$299.99 $239.99

In stock

Vortex Diamondback HD 2000 Laser Rangefinder

The Vortex Diamondback HD 2000 is a laser rangefinder was designed for ranging big game at 1,000 yards and beyond. It features the horsepower to go long and the toughness to stand up to the field. The Diamondback HD 2000 laser rangefinder gives hunters 2,000 yards max range, and 1,400 yards on game. 7x magnification helps you see farther, and an HD optical system means you can pick apart the landscape and stay pinpointed on your quarry. The red OLED display stays clear in low light, and to match any hunting environment, the Diamondback HD 2000 has two target modes (Normal and Last), two ranging modes (HCD and LOS), and is tripod adaptable.

Vortex Diamondback HD 2000 Laser Rangefinder Features

HD Optical System

Optimized with select glass elements to deliver exceptional resolution that cuts chromatic aberration and provides outstanding color fidelity. It also provides outstanding edge to edge sharpness and light transmission.

Red OLED Display

Optimized for low light ranging situations.


Reflective: Up to 2000 yards

Tree: Up to 1800 yards

Deer: Up to 1400 yards

Tripod Adaptable

Laser rangefinder is tripod adaptable.

Waterproof and Shockproof

The Diamondback HD 2000 is waterproof and shockproof.

What’s in the Box

Diamondback HD 2000

Soft Carry Case

Wrist Lanyard

Bungee Cord Lanyard

Lens Cloth

Utility Clip

2mm Hex Wrench

Hook & Loop Harness Attachment

CR2 Battery


Magnification 7x
Objective Lens Diameter 24mm
Max Reflective Range (up to) 2000 yards
Tree Range (up to) 1800 yards
Deer Range (up to) 1400 yards
Minimum Range 5 yards
Linear Field of View (@ 1000 yards) 335’
Angular Field of View 6.4 °
Eye Relief 16mm
Length 4.1”
Height 3.1”
Width 1.8”
Weight 7.6 oz.
Accuracy (@ 100 yards) +/- 1 yard
Display Range Resolution .1 yards
Max Angle Reading +/- 60°
Diopter Adjustment +/- 5
Battery Type CR2
Range Modes LOS, HCD
Target Modes Normal, Last
Optical System HD Optical System
Scan Feature Yes
Lens Coatings XR Lens Coatings
Display Red OLED
Waterproof Yes
ArmorTek Yes
Tripod Adaptable Yes
Ranging Format Yards or Meters
