Description

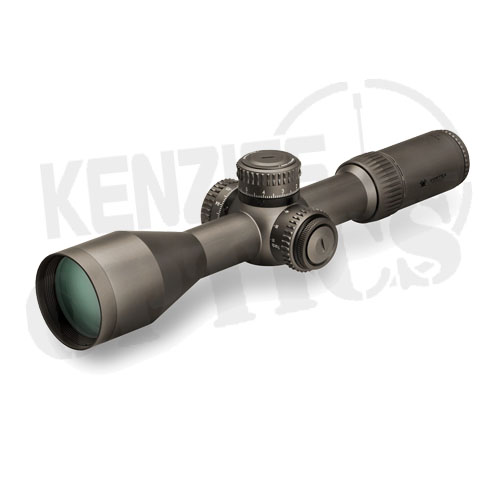

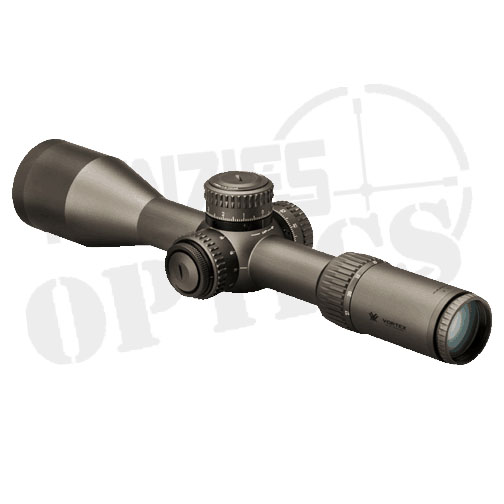

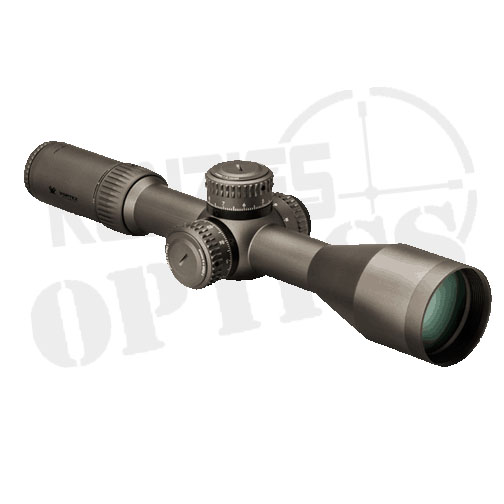

Vortex Razor HD Gen II 4.5-27x56mm

The Vortex Razor HD Gen II 4.5-27x56mm is the frontrunner in the race for the ultimate precision, long range optics. The Gen II Razors, designed and engineered for dialing precision long range shots in extreme environments, have serious precision shooters saying “finally”. The Gen II Razors feature a 6x zoom range, a 34 mm single piece aircraft-grade aluminum tube and our sophisticated L Tec turret system plus a host of additional high performance features for state of the art optics with deadly accuracy.

Vortex Razor HD Gen II 4.5-27x56mm Features

APO System

Apochromatic objective lens system uses index matched lenses to correct color across the entire visual spectrum.

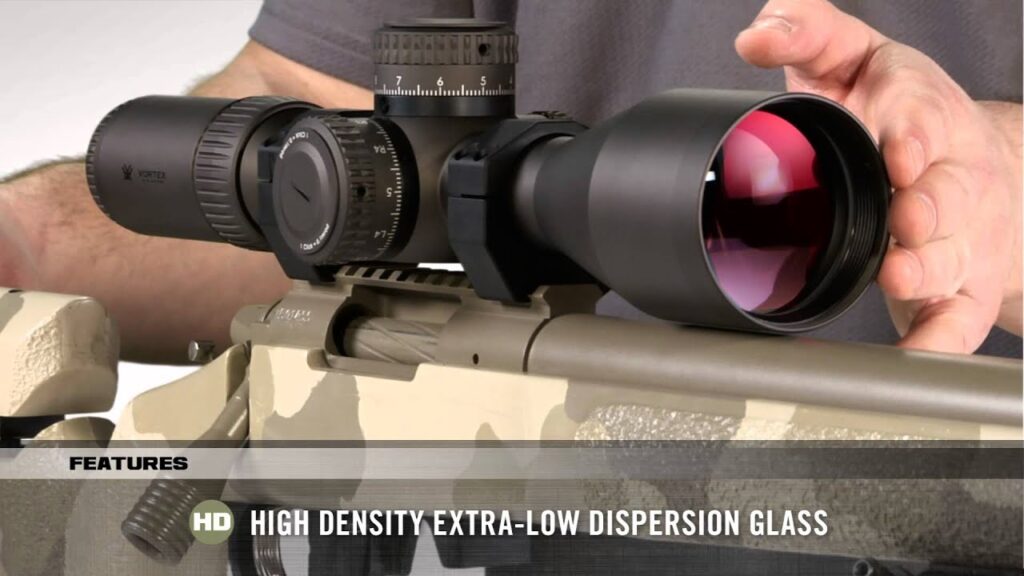

HD Lens Elements

Premium HD extra low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in High Definition images.

XRPlus Fully Multi Coated

Premium proprietary coatings deliver the highest level of light transmission with multiple anti reflective coatings on all air to glass surfaces for maximum brightness.

Plasma Tech

Cutting edge application process provides unparalleled coating durability and performance.

Glass-etched Reticle

Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.

Aircraft Grade Aluminum

Constructed from a solid block of aircraft grade aluminum for strength and rigidity.

Waterproof

O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.

Hard Anodized Stealth Shadow Finish

Highly durable hard coat anodization provides a low glare matte surface and helps camouflage the shooter’s position.

ArmorTek

Ultra hard, scratch resistant coating protects exterior lenses from scratches, oil and dirt.

L-Tec Zero Stop

Prevents elevation turret from dialing below sight in range using rugged steel components. Internal mechanisms stay free of sand, dirt, dust, moisture and other foreign materials even when setting the zero stop position. Patent pending.

Micro Adjust Zero Setting

Infinite zero setting positions allow zero to be set between clicks for optimal accuracy.

Friction Reduction System

Heat treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel on steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and repeatability. US Patent 7,958,665


Specifications

Magnification 4.5 to 27 x
Objective
Diameter
56 mm
Eye Relief 3.7 in
FOV 25.3 to 4.4 ft
@ 100 yds
Tube Size 34 mm
Turret
Style
L-Tec
Adjustment
Graduation
.1 MRAD
Travel per
Rotation
10 MRAD
Max
Elevation
33 MRAD
Max
Windage
14 MRAD
Parallax
Setting
32 yds to
infinity
Length 14.4 in
Weight 48.5 oz

Reticle Options

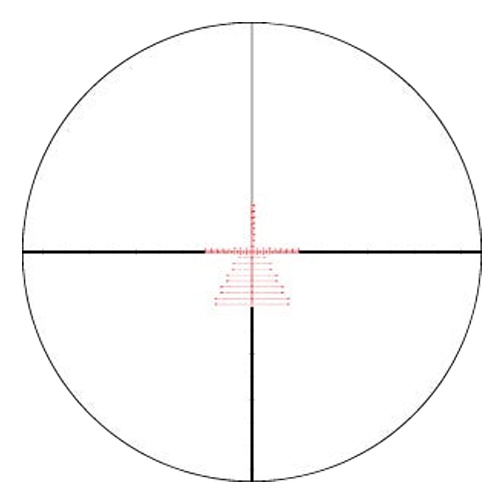

EBR-7C (MOA)

Packed with useful subtension data for long-range competition shooting or hunting, the EBR-7C is a hash marked ranging reticle available in first focal plane. A windage tree in the lower two quadrants is perfect for fast follow-up corrections for both wind and elevation. Unique to the 7C, the numbers on the lower stadia have moved to the outside of the windage dots for less obstruction around the vertical stadia itself.

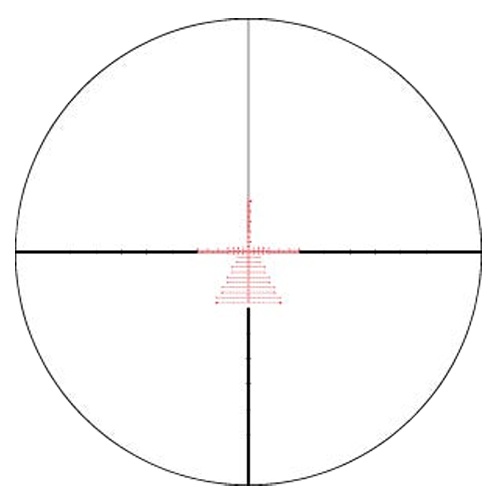

EBR-7C (MRAD)

Packed with useful subtension data for long-range competition shooting or hunting, the EBR-7C is a hash marked ranging reticle available in first focal plane. A windage tree in the lower two quadrants is perfect for fast follow-up corrections for both wind and elevation. Unique to the 7C, the numbers on the lower stadia have moved to the outside of the windage dots for less obstruction around the vertical stadia itself.

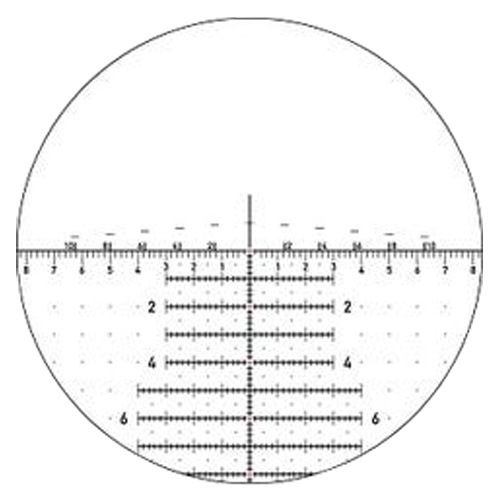

HORUS H59 RETICLE
An MRAD based reticle with an incredible variety of accommodations for bullet drop, wind corrections, spotting and ranging. Designed for long range precision shooters.

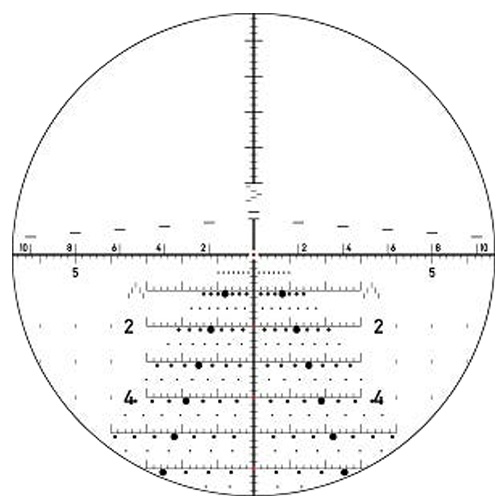

HORUS TREMOR3 RETICLE
An MRAD based reticle with an incredible variety of accommodations for bullet drop, wind corrections, spotting and ranging. Designed for long range precision shooters.



More From Vortex

Additional information

Weight 3.03 lbs
Vortex Reticle Option

EBR-1C MRAD, EBR-2C MOA, EBR-2C MRAD, EBR-7C MOA, EBR-7C MRAD, HORUS™ H59™, HORUS™ TREMOR3™
