| Thermal Sensor |
384×288 |
| Sensor Pixel Size / Frame Rate |
12 Micron / 50 Hz |
| Objective Lens Diameter |
35 mm |
| NETD |
<18mK |
| Field-of-View |
400′ at 1000 Yards (3.3x) |
| Base Level Magnification |
3.3x (Before Any Digital) |
| Digital Magnification |
3.3x to 13.2x with 2 Options (Rapid and Smooth) |
| Display Type/Resolution |
HD AMOLED / 1024 x 768 |
| Display OLED Adjustment |
Yes with 4 Hue Options (Grey, Blue, Purple, Red) |
| Color Palette Modes |
6 (White, Black, Red, Green, Golden, Violet) |
| Picture-in-Picture (PIP) |
Yes |
| Recoil Activated Recording |
Yes with Sensitivity Threshold Adjustment |
| Hot Tracking |
Yes |
| Outline Mode |
Yes |
| Reticle Design Options |
8 (Plus a “No Reticle” 9th Option) |
| Reticle Color Options |
5 (Black, White, Red, Green, and Blue) |
| Reticle Polarity Reversal |
Yes (Optional On/Off) |
| Reticle Illuminated Dot |
Yes, 4 Designs Feature Center Dot Illumination |
| Reticle Center Dot |
3 Illumination Options (Red, Blue, Green) |
| Reticle Focal Plane Options |
Yes (Front Focal or Second Focal) |

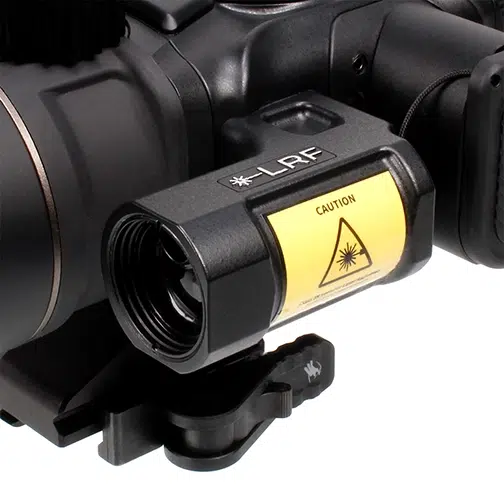

| Laser Class |
Class 3R |
| Laser Ranging Distance |
1300 Yards (Max Expected for Reflective Target) |
| Ballistic Calculation |
Yes (Automatic Drop Compensation to 600 Yards) |
| Multiple Gun Profiles |
Yes (Save up to 5 Different Zeros) |
| Gun Profile Nicknaming |
Yes (Caliber Labeling and Zero Distance) |
| Detection Range |
Up to 2000 Yards |
| Start-Up Time (Cold Start) |
3 Seconds (Logo Appearance to Functional Use) |
| Auto Shutdown Battery Saver |
Yes with 4 Options (Off, 30, 60, and 90 Minutes) |
| Media Recording |
Yes (Photo, Video, and Audio with On or Off) |
| Media File Management |
Yes (On-Board Viewing and File Deletion) |
| WIFI and Hot-Spot Equipped |
Yes |
| Battery Type Options |
(2x) 18650 (Not Polarity Sensitive) |
| Expected Battery Life |
16+ Hours (w/3500 mAh Battery & WIFI Off @ 78F) |
| Recoil Rating |
6,000 J (300 Win Mag Suggested Max) |
| Nitrogen Purged |
Yes |
| Scope Length |
7.4″ |
| Weight |
27.4 oz. (Without Batteries) |
| Waterproof Rating |
IP67 |
| Phone App |
Yes (WAVE IR) |
