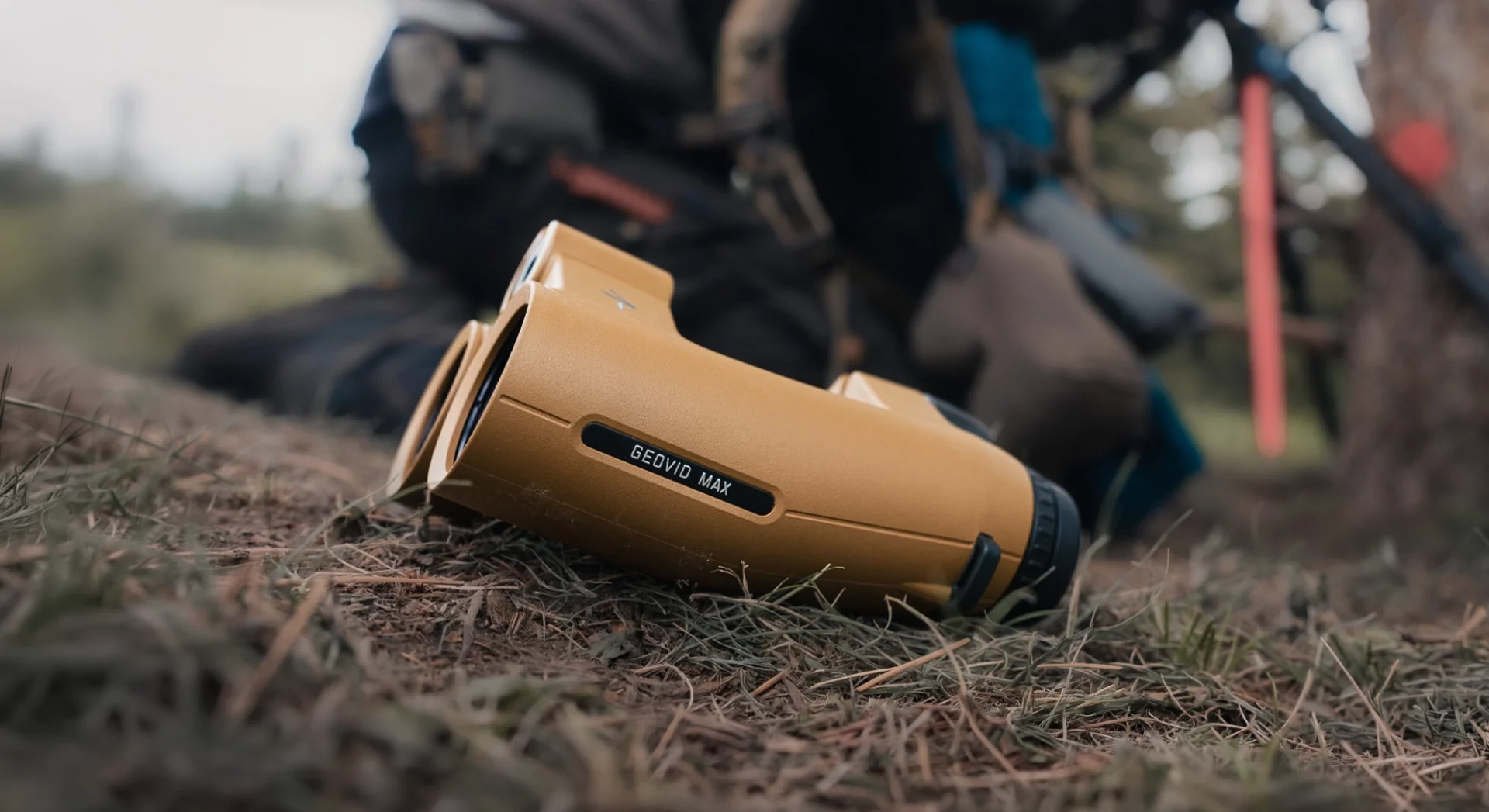

Introducing the Leica Geovid Max 10×42: A New Era of Rangefinding Binoculars

When precision matters in the field, having the right information at the right time can make all the difference. The new Leica Geovid Max 10×42 Applied Ballistics Rangefinding Binoculars combine premium optical performance, advanced laser rangefinding, integrated ballistic calculations, and connected technology into one fully integrated field system. Designed for hunting, long range shooting, and competition PRS and NRL shooting, the Leica Geovid Max 10×42 is built to provide detailed data without requiring multiple devices.

Leica describes the Geovid Max as a convergence of optics, ranging, ballistics, and navigation, bringing these capabilities together in one single system.

Advanced Optics and Long-Range Ranging

At the foundation of the Leica Geovid Max 10×42 is a 10×42 optical configuration designed to provide a detailed view while maintaining the functionality of an integrated rangefinder. These binoculars feature a 42mm front lens diameter, a 4.2mm exit pupil, and 16mm of eye relief. Its field of view is 342 feet at 1,000 yards, while light transmission is rated at 91%.

The Geovid Max also features Leica’s HDC multilayer coating and AquaDura coating, along with a Perger-Porro prism system and internal focusing. The magnesium housing is nitrogen-filled and waterproof to a depth of 16 feet, providing a durable platform for demanding field conditions.

Its next-generation laser engine is designed for fast and extended ranging. Leica specifies a maximum reflective range of up to 8,200 yards, with tree-ranging capability up to 4,600 yards and deer-ranging capability up to 1,600 yards. The minimum range is 10 yards.

For hunters and shooters who need to quickly determine distance, speed is another important part of the system. The Geovid Max can measure in a maximum of 0.3 seconds, while Leica states that the unit can go from off to a displayed range in approximately 0.5 seconds.

A Fully Customizable HUD

One of the defining features of the Leica Geovid Max is its customizable heads up display (HUD). Rather than forcing every unique user to view the same information, the Geovid Max allows the display to be configured around the shooter’s needs, conditions, and desired data.

The 640×480-pixel active-matrix microLED display presents ranging, ballistic, environmental, and other data directly within the viewing experience. Leica describes it as its brightest and most customizable display, designed to provide immediate clarity in ever changing light conditions.

Users can configure the layout and content through the Leica Ballistics app, selecting the information they want prioritized. The available data includes line-of-sight distance (LOS), equivalent horizontal range, ballistic elevation and windage information, wind, atmospheric data, and compass information.

The Geovid Max also offers a selectable circle, square, or cross shape reticle. Custom ballistic profiles can be saved for different setups, allowing the HUD to adapt to the desired profile.

Integrated Applied Ballistics

The Geovid Max goes beyond simply measuring distance by incorporating Applied Ballistics into the system. Leica states that Applied Ballistics Quantum is embedded within the optical platform, allowing ballistic information to be processed alongside environmental data and trajectory information.

The Geovid Max includes Applied Ballistics Elite and WEZ capabilities. The system can provide equivalent horizontal range, elevation and windage corrections, click corrections, holdover information, and Weapon Employment Zone (WEZ) data.

For shooters using different rifles and loads, the ability to maintain customized ballistic profiles is particularly useful. Leica’s literature states that users can save custom profiles for each setup, with the HUD adapting to the selected configuration.

Wind, Weather, GPS, and Connected Devices

The Leica Geovid Max is designed to function as part of a broader connected ecosystem rather than as an isolated rangefinder. Through Bluetooth connectivity and compatible devices and applications, users can incorporate additional data into their workflow.

The system supports user-programmable wind inputs as well as live wind updates through compatible Kestrel or Calypso devices. Leica also lists connectivity with Garmin and Apple watches, Kestrel and Kestrel HUD, and GPS and mapping platforms.

GPS target marking is supported through onX, BaseMap, and Google Maps. Through the Leica Ballistics app, ranged targets can be sent directly to compatible mapping software, allowing users to range a target and then mark its location for navigation and target reference.

This open ecosystem is another distinguishing element of the Geovid Max. Leica describes its ecosystem as an open platform designed to connect with the hardware and software users already rely on rather than locking them into a proprietary system.

Built for Hunting and Long-Range Shooting

The Leica Geovid Max 10×42 is intended for hunting, long range shooting, and PRS/NRL style shooting, making it suitable for applications where both visual information and precise distance data are extremely important. Leica positions the Geovid Max specifically for long range and technical hunting applications.

For hunters, the combination of 10x magnification, long-range laser ranging, environmental information, ballistic profiles, and GPS connectivity can consolidate multiple pieces of field equipment into one system. For long-range shooters, integrated Applied Ballistics, wind correction, customizable ballistic profiles, and WEZ information provide additional data alongside the optical view and measured distance.

What Makes the Leica Geovid Max Stand Out?

The Leica Geovid Max 10×42 is designed around integration. Instead of treating binoculars, a laser rangefinder, ballistic calculator, environmental sensors, and navigation tools as separate systems, Leica combines these functions into a single platform.

With up to 8,200 yards of reflective ranging, ranging capability to 4,600 yards on trees, a 0.3-second maximum measuring time, 91% light transmission, a customizable 640×480 microLED display, integrated Applied Ballistics Elite and WEZ, Bluetooth connectivity, and compatibility with multiple third-party platforms, the Geovid Max is built to put more information directly in the shooter’s field of view.

The result is a rangefinding binocular designed not simply to tell you how far away a target is, but to connect distance, optics, ballistic information, environmental conditions, and navigation into one field-ready system.

Explore the New Leica Geovid Max 10×42

For hunters and shooters looking for an advanced rangefinding binocular with integrated Applied Ballistics, the Leica Geovid Max 10×42 brings together the technologies needed to make informed decisions in demanding field conditions. Its combination of premium Leica optics, high-speed laser ranging, customizable data presentation, ballistic computation, and open connectivity makes it a comprehensive optical platform built around the modern shooter’s needs.

The Leica Geovid Max 10×42 represents Leica’s vision of bringing optics, ranging, ballistics, and navigation together, providing the information you need, configured the way you want it.
