Description

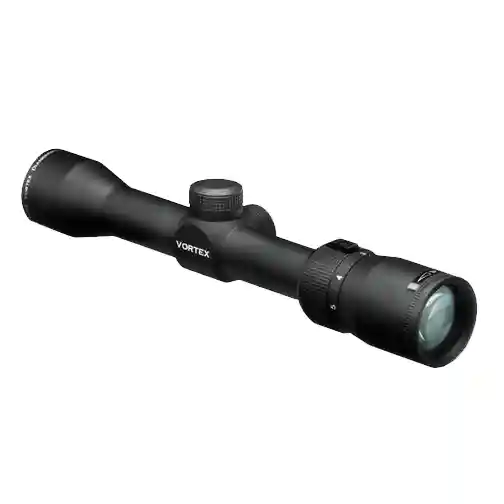

Vortex Diamondback 1.75 – 5 x 32 mm Riflescope

The Vortex Diamondback 1.75 – 5 x 32 mm is a scope that is loaded with features! It is constructed of solid one piece aircraft grade aluminum alloy making it virtually indestructible and highly resistant to magnum recoil. The Argon purging makes the scope waterproof and fog proof. It features a fully multi coated lens to protect against scratches and debris.

Diamondback 1.75 – 5 x 32 mm Features

Fully Multi Coated

Second Focal Plane Reticle

1 inch Tube Size

Single Piece Tube

Constructed of Aircraft Grade Aluminum

Waterproof, Fog proof, and Shockproof

Hard Anodized Finish

Capped Reset Turrets

Precision Glide Erector System

Fast Focus Eyepiece


Specifications

L1 10.2
L2 1.9
L3 1.96
L4 5.1
L5 1.9
L6 3.1
H1 1.55
H2 1.69



Specifications

Magnification 1.75-5X
Objective Lens Diameter 32 mm
Eye Relief 3.5 inches
Field of View 68.3-23.1 ft/100 yds
Tube Size 1 inch
Turret Style Capped
Adjustment Graduation 1/4 MOA
Travel Per Rotation 15 MOA
Max Elevation Adjustment 125 MOA
Max Windage Adjustment 125 MOA
Parallax Setting 100 yards
Length 10.2 inches
Weight 12.8 oz










Related Items

Additional information

Weight 0.8 lbs
Vortex Reticle Option

Dead-Hold BDC, V-Plex
