Description

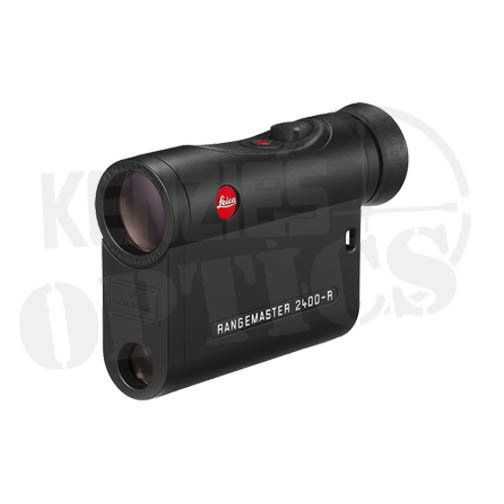

Leica Rangemaster CRF 2400-R
The Leica Rangemaster CRF 2400-R is their most powerful simple angle compensation compact rangefinder at 2400 yards. That is 50% farther than its predecessor.
It offers a new LED display for improved readability of scanned distances. This new LED display auto adjusts itself to the ambient light to aid accurate reading. The Rangemaster has a fast scan mode, it can take measurements every 0.5 seconds. It displays the results in decimal figures up to a distance of 200 yards (182 meters). This enables a more precise distance measurement for archers. The CRF 2400-R determines the equivalent horizontal range (EHR) up to a distance of 1,200 yards (1,097 meters) when required. With this feature, the unit provides the practical angle compensated distance, which is essential for an accurate long distance shot. The compact design allows the Rangemaster to fit into any pocket and weighs 6.5 ounces. It is waterproof up to 1 meter. With a 7x magnification the optic will ensure the best image brightness and a wide field of view.
Leica Rangemaster CRF 2400-R Features
Ideal entry level model with an output of linear, horizontal range (EHR) of 10 m to 1,100 m / 1,200 yds
Distance determination of up to 2,200 m / 2,400 yds
Excellent readability of LED display with automatic brightness control
Brilliant, clear image, crisp details even at dusk
7 x 24 mm precision optics with integrated diopter compensation
Weighs only 6.5 ounces and is extremely compact
Intuitive, easy operation with meter yard switching and angle display
Water and dirt repellent AquaDura coating
Specifications |
||||||
| Magnification | 7x | |||||
| Front Lens Diameter | 24mm | |||||
| Exit Pupil | 3.4mm | |||||
| Twilight factor | 13 | |||||
| Field of view at 1,000 yds or 1,000 m | 347 ft / 115 m | |||||
| Eye relief | 15mm | |||||
| Objective angle of view | 6.5° | |||||
| Diopter compensation | ± 3.5 diopters | |||||
| Distance measurement | 0 | |||||
| Range | 10 yds to 2,400 yds / 10 m to 2,200 m | |||||
| Equivalent horizontal range (EHR) | Up to 874 yds / 800 m | |||||
| Measuring accuracy | To 400 yds / 366 m approx. ± 1 yd/m ; to 800 yds / 732 m approx. ± 2 yds/m ; over 800 yds / 732 m approx. ± 0,5 % | |||||
| Temperature | –4 up to 131 °F / –20 up to +55 °C | |||||
| Read outs | Precise LED display with decimals, easily legible in any light | |||||
| Eyepieces for eyeglass wearers | Yes | |||||
| Eyecups | Yurn down rubber eyecups | |||||
| Prism system | Roof prism with phase correction coating P40 | |||||
| Coating | AquaDura lens coating | |||||
| Laser | Eye safe invisible laser according to EN and FDA class1 | |||||
| Laser beam divergence | Approx. 0.5 x 2.5 mrad | |||||
| Measuring time | Maximum approx. 0.3 s | |||||
| Measuring mode | Scanning mode, single measurement | |||||
| microSD slot | Yes | |||||
| Battery | 1 x 3 V Lithium type C2R | |||||
| Battery lifetime | Approx. 3,000 measurements at 20 °C / 68 °F | |||||
| Watertightness | Watertight depth of 3.2 ft | |||||
| Housing | Carbon fibre reinforced plastic material | |||||
| Dimensions (W x H x D) | 4.5 x 2.25 x 1.25 in (113 x 75 x 34 mm) | |||||
| Weight | 6.5 oz (185 g) incl. battery | |||||
