Leupold VX-5HD 2-10x42mm CDS-ZL2 (30mm) FireDot Duplex Illum. Reticle

$1,299.99 $1,099.99

In stock

SKU: 171389 Categories: , Tags: , , , ,

Leupold VX-5HD 2-10x42mm

The Leupold VX-5HD 2-10x42mm is just at home on the side of a mountain chasing monster goats as it is at the range. The extremely versatile 2-10 magnification gives you a super wide field of view, while also allowing for clear, long range shots. The VX-5HD defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. With the Twilight Max HD Light Management System, it’s purpose built for the toughest lighting conditions. Rugged and reliable, the VX-5HD is ready for your next adventure.

Leupold VX-5HD 2-10x42mm Features

FireDot Duplex (Illuminated)

Takes the legendary Leupold designed Duplex reticle and adds an extra bright center point dot. Ideal for quick target acquisition and the broadest range of game applications.

2nd Generation Argon/Krypton Waterproofing

Features Leupold’s exclusive, proprietary Argon/Krypton gas blend, which nearly eliminates the effects of thermal shock, and reduces the diffusion of gases sealed inside your scope even more than our proven nitrogen technology already does.

30mm Maintube

The 30mm maintube offers incredible strength and allows for the greater range of windage and elevation adjustment.

5:1 Zoom Ratio

Versatile magnification range offers a wide field of view at low power and precise target identification at high power.

6061-T6 Aircraft Quality Aluminum

Crafted from 6061-T6 aircraft quality aluminum.

CDS-ZL2 Zero Lock Adjustment with Revolution Indicator

The CDS-ZL2 elevation adjustment dials easily for quick sight in and to set for target ranges. Press the ZeroLock button to release and dial as much as 38MOA elevation. Dial back to zero and the lock snaps back into place automatically, ensuring correct re-zero and that the dial cannot accidentally move.

FireDot Illumination

Leupold’s powered fiber optic reticle technology provides the perfect blend of daylight illumination and optimal light transmission and contrast for low light hunting situations.

Generous Eyebox

Get on target faster so you can take the shot of a lifetime. Even at higher powers, the longer eye relief and generous eyebox provides incredible head position latitude, edge to edge brightness, and a full clear sight picture that fills the eyepiece completely.

Guard Ion Rain Shedding Coating

Guard Ion rain shedding coating is extremely durable, scratch resistant, and sheds water, dirt, and fingerprints.

MST (Motion Sensor Technology)

Proprietary MST (Motion Sensor Technology) automatically deactivates illumination after 5 minutes of inactivity, yet reactivates instantly as soon as any movement is detected.

Pop Up Rezero Windage Adjustment

Pop Up Rezero windage adjustments are easily adjusted and the dial set to the zero mark with no tools needed.  A thread on aluminum cover conceals and protects the adjustment after setting.

Push Button Illumination

One button brightness control with a high/low indicator keeps it simple.

Twilight Max Light Management System

Light management means delivering usable light to your eye and forming a crisp, high contrasting image. Lens coatings are applied that maximize light transmission in blue and red, and balancing colors to develop the highest possible contrast. Glare is controlled with special mechanical structures. This means you can see antler tines in dark shadows long after the competition has gone home.

Twin Bias Spring Erector System

The twin bias spring exerts up to 30 percent more holding force on the erector, virtually eliminating erector system backlash and stress on the vital internal workings of the scope, for longer life.

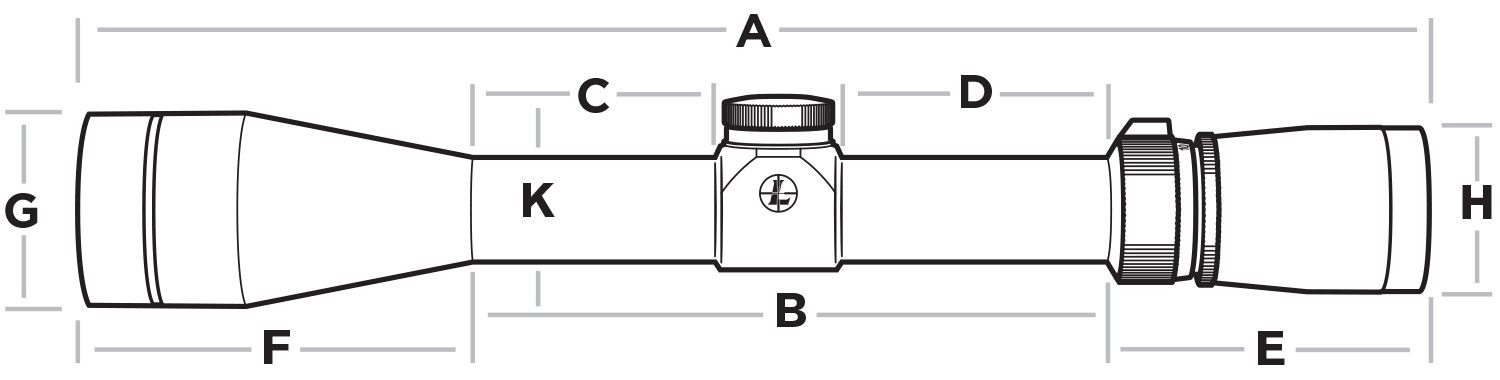

Length – A (in) 12.5
Mounting Space – B (cm) 14.2
Illustration – C 1.7
Illustration – D 2.5
Eyepiece Length – E 3.3
Objective Length – F 3.6
Objective Diameter – G 2.0
Eyepiece Diameter – H 1.8
Tube Diameter- k (mm) 30
Mounting Space – B (in) 5.6



Linear FOV (ft/100 yd) – Low 57.5
Linear FOV (m/100 m) – Low 19.1
Linear FOV (ft/100 yd) – High 11.7
Linear FOV (m/100 m) – High 3.6
Weight (oz) 16.4
Weight (g) 465
Objective Clear Aperture (in) 1.7
Eye Relief (mm) – Low 96.5
Eye Relief (in) – Low 3.8
Eye Relief (mm) – High 96.5
Eye Relief (in) – High 3.8
Elevation Adjustment Range (MOA) 120
Windage Adjustment Range (MOA) 120
