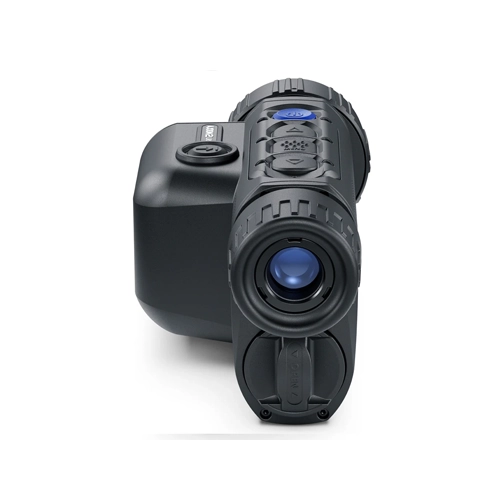

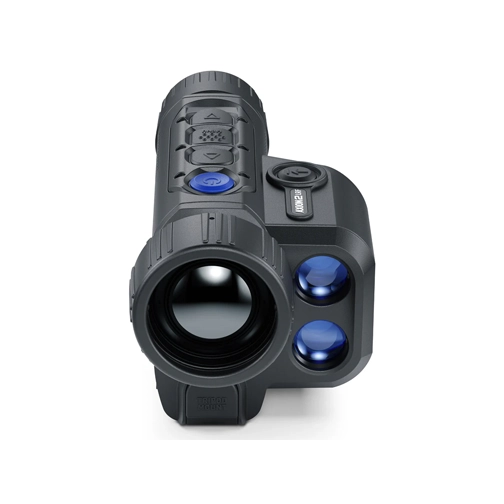

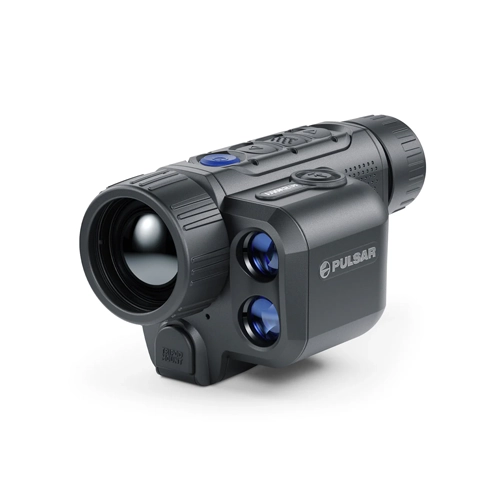

Pulsar Axion 2 LRF XG35 Thermal Monocular
The Pulsar Axion 2 LRF XG35 is the latest addition to the Axion family. With a powerful 640×480, 12 µm sensor that detects heat signatures over 1,750 meters away, this is a great device for scoping large areas and locating prey. With an included 1,000 yard laser rangefinder, this device gives users an accurate approximation of their target’s distance. It then transmits these images and information to a 1024×768 AMOLED display, giving the user a clear, and crisp image of their target.
With 2.5 – 20x magnification along with built in photo and video recording, WiFi connectivity and a 16GB memory card, the Axion 2 LRF XG35 is a technological wonder. The Axion 2 is also supported by the Stream Vision 2 app, enabling users to record and preserve all their precious shooting memories.
The Axion 2 LRF XG35 is made of a high quality reinforced magnesium alloy that boasts IPX7 protection and operates in temperatures between -25 – +40C. Utilizing a Pulsar APS5 Li-ion battery, the Axion 2 operates for up to 11 hours.
Pulsar Axion 2 LRF XG35 Thermal Monocular Features
640×480, 12 µm sensor
1,750 yard detection range
1,000 yard included laser rangefinder
1024×768 AMOLED display
Built in photo and video recording
WiFi connectivity and Stream Vision 2 App Supported
8 color palettes
IPX7 Fully Waterproof
Specifications |
||||||
| Sensor | 640×480 pix. @ 12 µm (NETD <40 mK) | |||||
| Objective lens | F35/1.0 | |||||
| Magnification, x | 2.5 – 20 (x8 zoom) | |||||
| Field of view (HxV), degrees / m@100m | 12.5×9.4 / 21.9×16.4 | |||||
| Detection range, m | 1750 | |||||
| Sensor Type | uncooled | |||||
| Resolution, pixels | 640×480 | |||||
| Pixel pitch, µm | 12 | |||||
| NETD, mK | <40 | |||||
| Frame rate, Hz | 50 | |||||
| Objective lens | F35/1.0 | |||||
| Magnification, x | 2.5 – 20 | |||||
| Field of view (HxV), degrees / m @ 100 m | 12.5×9.4 / 21.9×16.4 | |||||
| Eye relief, mm | 14 | |||||
| Display Type | AMOLED HD | |||||
| Resolution, pixels | 1024×768 | |||||
| Detection range, m | 1750 | |||||
| Safety class for laser equipment according to IEC 60825-1:2014 | 1 | |||||
| Wavelength, nm | 905 | |||||
| Laser Rangefinder Max. measuring range, m | 1000 | |||||
| Measurement accuracy, m | ± 1 | |||||
| Video / photo resolution, pixel | 1024×768 | |||||
| Video / photo format | .mp4 / .jpg | |||||
| Built-in memory, GB | 16 | |||||
| Wireless Protocol | Wi-Fi | |||||
| Wireless Standard | IEEE 802.11 b/g/n/ac | |||||
| Frequency, GHz | 2.4 / 5 | |||||
| Degree of protection, IP code (IEC60529) | IPХ7 (waterproof) | |||||
| Operating temperature range, °С | -25 – +40 | |||||
| Mount, type | 1/4″ | |||||
| Supported Application | Stream Vision 2 | |||||
| Output voltage, V | 3.0 – 4.2 | |||||
| Battery type | APS 5 Li-ion Battery Pack | |||||
| Capacity, mAh | 4900 | |||||
| Operating time on battery pack (at t=22°C), h * | 7 | |||||
| External power supply, V | 5 V, 9 V (USB Type-C) | |||||
| Body material | Magnesium alloy | |||||
| Dimensions, mm | 152x74x75 | |||||
| Weight, kg | 0.35 | |||||
