Swampfox Liberty 1×22 RMR Red Dot Sight – Multiple Options


Available Options:

Swampfox Liberty 1×22 RMR Red Dot Sight

The Swampfox Liberty 1×22 RMR Red Dot Sight was engineered for both everyday carry and competition on pistols, carbines, and shotguns. It is narrower and shorter than the Swampfox Kingslayer series. The Liberty is made from tough 7075 aluminum and is packed with advanced features that make every day use worry free. It has a greatly improved battery life, Shake ‘N Wake motion sensing illumination, and scratch resistant hardcoat finish.

Swampfox Liberty 1×22 RMR Red Dot Sight Features

All Day Ever Day

Liberty is the 2nd generation Swampfox Optics open reflex sights optimized for concealed carry and every day use. Featuring tough 7075 aluminum construction, Shake ‘N Wake Illumination, improved battery life, and a more compact profile, these optics are ready for real world situations day in and day out.

Give Me Liberty

The 22mm wide window makes Liberty about the same width as a double stack Glock 9mm slide.  Liberty is narrower near the base than Kingslayer, with flush fitting brightness buttons on the left and a top loading CR1632 battery replacing the Kingslayer’s side tray system. Liberty’s emitter section is also lower profile, allowing iron sights of .365” or higher to co-witness.

Seeing Red Again

Liberty features high battery life emitters, only available in 3 MOA red dot reticles.  It gets about 4,000 hours batt life at mid range brightness, with Shake ‘N Wake illumination helping maximize efficiency. At true daylight bright settings, Swampfox estimates changing out your battery once a year with Liberty is the smart call.

Built for Secure Holsters

Compatibility issues can be a major headache when adopting a new piece of equipment, but you don’t have to worry. There is no need to go holster hunting or invest in an expensive custom holster setup. Liberty fits securely in all ALS series duty holsters, both optic and holster fully function as intended. ​ ALS is a trademark of Safariland Corp​

Shake It

The Liberty features Shake ‘N Wake motion sensing illumination tech to help save battery life. After about four minutes without sensing any motion, illumination will shut off. Even the smallest tap or tilt will wake it up to the previous brightness setting.​​ Holding the brightness down button for 3 seconds will shut these optics off manually. But taking advantage of Shake ‘N Wake allows you to carry your Liberty every day, all day long, without pressing brightness buttons every day and without wasting battery life. ​​

Superb Construction

It is constructed from 7075 aluminum and feature a stainless steel top mounted battery cover accessed via T10 torx wrench. No need to re-zero when swapping batteries.​ The ruby red lens is fully multicoated with anti-fog, anti-scratch, and hydrophobic coatings, resulting in great daylight bright performance without an annoyingly dark blue tint. It was designed from the outset to survive the tough life of optics that get carried in the real world day after day, year after year.

Ready for the Daily Grind

It is designed and built expressly for everyday use.

Liberty 1X22 MM​

Liberty features a 3 MOA red dot enclosed in a window measuring 22mm wide and 16mm tall. It fits all Trijicon RMR footprint slides and mounts. Liberty’s 7075 aluminum body measures 27.8mm wide and 25.5mm tall. Liberty is marginally easier to conceal in exchange for its smaller window size.

Included in the Box

Optic with sheath

Swampfox tool

Lens Cloth


User Manual

Three screw sets

TORX M3.5×0.6L T10, TORX #4-40×0.250″L T10 & TORX #6-32×0.374″L T10


MOA Adjustment Dial

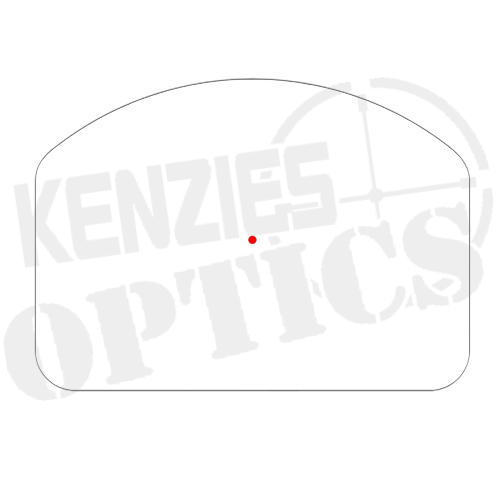

Dot Size 3 MOA
Magnification 1x
Lens Diameter 22mm
Illumination Positions 10
Brightness Adjustments Up/Down Digital Press
Shockproof G Forces 1500Gs
Waterproof 1 Meter/ IPX7
Battery Type CR 1632
Max Battery Life Approx 1 Year Real World (Shake ‘N Wake)
Dimensions (LxWxH) 1.78” x 1.09” x 1.0”
Weight 1oz without battery
Lens Multi Coated Ruby Red
Specialty Coatings Anti-fog



Parallax Parallax free @33 yards
Eye Relief Unlimited
Mount Type RMR
Chassis 7075-T6 aircraft grade aluminum
Windage/Elevation Movement Range (MOA) 45 MOA/ Total 90 MOA Range
