Trijicon 3×24 XB Compact ACOG Crossbow Scope – Multiple Options

Original price was: $1,430.00.Current price is: $1,031.24.

SKU: N/A Category: Tags: , , ,

Available Options:

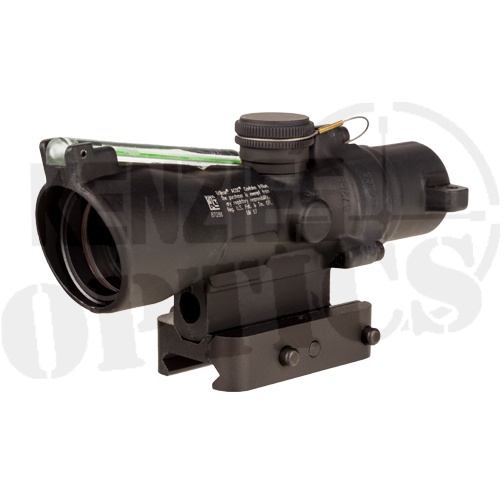

Trijicon 3×24 XB Compact ACOG Crossbow Scope

The Trijicon 3×24 XB Compact ACOG is a crossbow scope. It was designed as a high performance optic with an illuminated reticle that accommodates speeds from 300 fps to 340 fps, 340 fps to 400 fps, 400 fps to 440+ fps. Featuring bolt drop stadia lines out to 80 yards, and has Bad River Outdoors’ patented deer / elk ranging capabilities. Together, they provide the ability for ranging and hold over, all in the field of view; the first reticle of its kind.

The Trijicon Compact ACOG features the Q-LOC Technology Mount, featuring a Mil-Spec drop test rated 6061-T6 aluminum design, with an easy to use one handed tool less mounting system. The spring loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.

The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny Rail. It features a matte black anodized finish, and is made in the USA.

Torque Spec (to rail):
Spring Tension Only: 12-16 in. / lbs.
Can be Tightened To: 44-66 in. / lbs.

Trijicon 3×24 XB Compact ACOG Features

Precise Targeting

The reticle has Bad River Outdoors’ patented deer/ elk ranging capabilities designed to be zeroed at 30 yards with stadia lines out to 80 yards in 5-yard increments.

Totally Battery Free

Trijicon ACOG XB delivers increased hit potential in all lighting conditions—without the use of batteries.

Exceptional Any Light Performance

Trijicon Fiber Optics automatically adjust the brightness level and contrast of the reticle to available light conditions.

Faster Target Acquisition

Tritium phosphor lamp glows in low light conditions for quick target acquisition. Lamp is guaranteed to illuminate for 15 years.

Lightweight Ruggedness

Forged 7075-T6 aircraft grade aluminum housing provides extreme durability in a compact design and will withstand the shock pattern of all crossbows.

Zero Distortion

Multi coated, broadband, anti reflective coated lenses provide superior clarity and light gathering capabilities with zero distortion.

Internally Adjustable

Since only the prism housing moves, the Trijicon ACOG XB is much more rugged than conventional designs.

Waterproof to 20 Meters (66 ft.)

Dry nitrogen filled to prevent fogging.


Length x Width x Height 4.9 in x 2.1 in x 2.6 in

(124.46mm x 53.34mm x 66.04mm)

Weight 8.2 oz.


Magnification 3x
Objective Size 24mm
Reticle Pattern Chevron
Day Reticle Color Green
Night Reticle Color Green
Bullet Drop Compensating (BDC) Yes
Caliber 300 fps – 340 fps
Bindon Aiming Concept (BAC) Yes
Illumination Source Fiber Optics & Tritium
Power Source Fiber Optics & Tritium
Adjustment 0.14 MOA per Click
Exit Pupil 0.32 in.


Field of View (degrees) 4.9°
Field of View (feet) 25.6 ft. @ 100 yds.

(8.53m @ 100m)

Mount Trijicon Q-LOC Technology Mount
Housing Material Forged Aluminum
