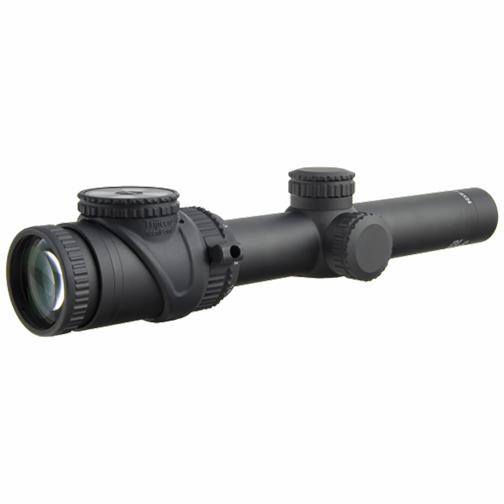

Trijicon AccuPoint 1-6x24mm

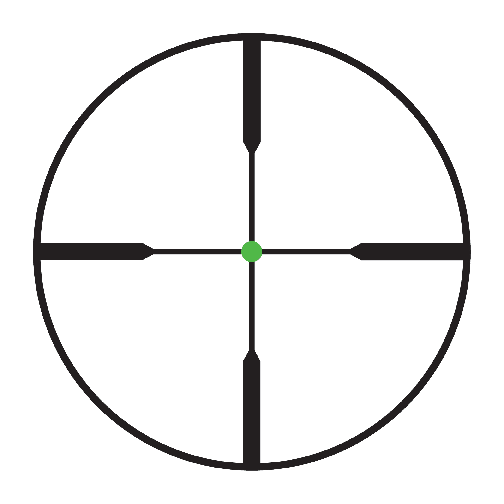

The Trijicon Accupoint 1-6x24mm was designed to give you extra magnification when you need it. After running your carbine all day at 1x you hit that stage where you have to stop, breathe, and take that long shot. When you do, you will be glad you can dial it up to 6x. Whether the buck comes from the thick forest to your left or the cornfield to your right, you will have the confidence to take the shot. If you want to keep it simple the duplex reticle offers a fine crosshair and fiber optic dot keeping your target in perfect view. Control the brightness of your fiber optic aiming point with the innovative illumination dial and have confidence with your shot placement in low light when the tritium kicks in. Use Trijicon’s 30mm rings or quick release mount to match your platform.
Trijicon AccuPoint 1-6x24mm Features
Confident Aiming in Any Light
Battery free, illuminated reticles are “always on” using tritium/fiber optic technology to automatically adjust to lighting conditions.
Easy Focus Eyepiece
Diopter accommodates the shooter’s individual prescription.
Repositionable Magnification Lever
Accommodates different shooting positions and rifle configurations. *Available on some models.
Quick & Easy Adjustments
Crisp, precise, windage/elevation adjusters require no tools. Capped or zero stop adjusters ensure no accidental shift.
Purpose Driven Design
Multiple finishes, knurling types, and adjuster styles to suit a variety of applications.
Ultra Durable for Ensured Reliability
Ruggedized design engineered to withstand extreme conditions and tested to military standards and protocols.
Edge to Edge Clarity
Fully multi-coated, broadband, anti-reflective glass provides excellent light transmission, true detail and color with zero distortion.
“Both Eyes Open” Shooting
Illuminated reticles use Trijicon’s Bindon Aiming Concept (BAC) feature to provide a clear aiming point that draws the shooter’s eye for fast engagement.
Quick Target Acquisition
Proven reticle designs for the most discerning hunters, ensuring fast ranging and holdovers.
Optimal Flexibility
Generous windage and elevation adjustment for maximum total travel.
Specifications |
||||||
| Length x Width x Height | 11 in x 2 in x 2 in
(279.4mm x 50.8mm x 50.8mm) |
|||||
| Weight | 19.2 oz.
(544.31g) |
|||||
| Magnification | 1-6x | |||||
| Objective Size | 24mm | |||||
| Tube Size | 30mm | |||||

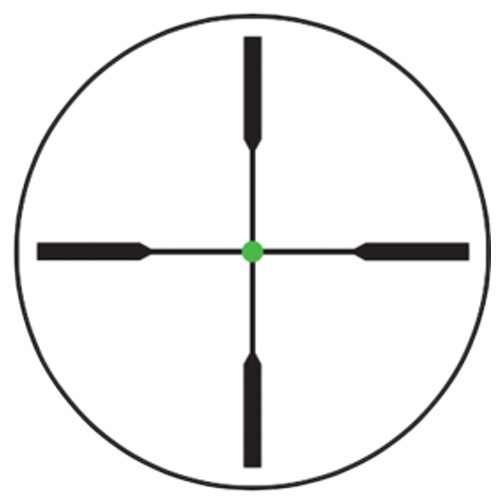

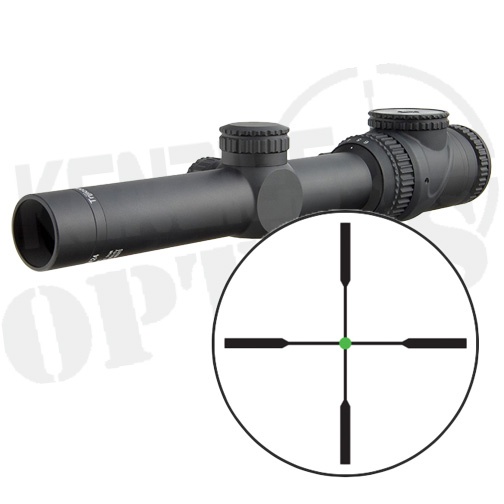

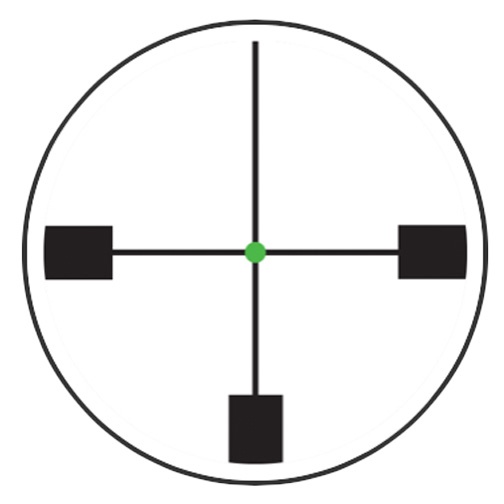

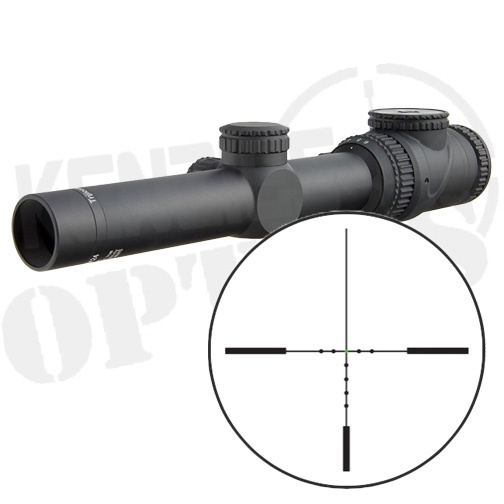

| Reticle Pattern | Standard Duplex Crosshair

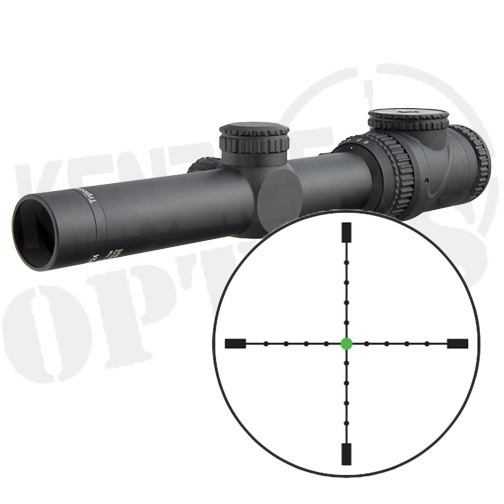

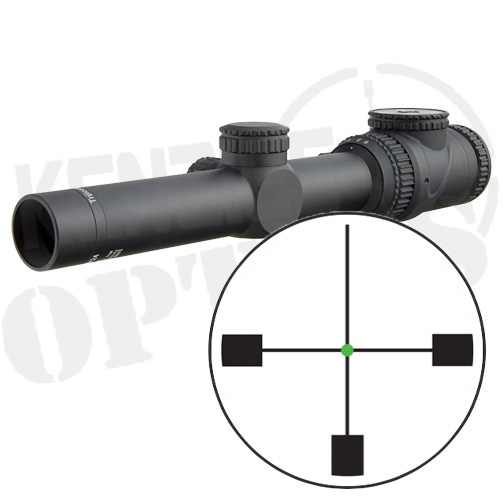

MIL Dot Crosshair MOA Dot Crosshair German #4 Crosshair Circle Cross Triangle Post |
|||||
| Day Reticle Color | Green
Red Amber |
|||||
| Night Reticle Color | Green
Red Amber |
|||||
| Focal Plane | Second | |||||
| Bullet Drop Compensating (BDC) | No | |||||
| Bindon Aiming Concept™ (BAC) | No | |||||
| Illumination Source | Fiber Optics & Tritium | |||||
| Power Source | Fiber Optics & Tritium | |||||
| Adjustment | 1/4 MOA Per Click | |||||
| Adjustment Range | 110 MOA Total Travel | |||||
| Eye Relief | 3.9 in.(99.06mm) | |||||
| Exit Pupil | 0.47 in. – 0.16 in.
(11.94mm – 4.06mm) |
|||||
| Field of View (degrees) | 21.4° – 3.6° | |||||
| Field of View (feet) | 117.5 ft. – 18.8 ft. @ 100 yds.
(39.17 – 6.27m @ 100m) |
|||||
| Mount | Not Included | |||||
| Housing Material | 6061-T6 Aluminum, black hard coat anodized | |||||
| Finish | Matte Black | |||||
| Submersion Depth | 10 ft.
(3m) |
|||||
