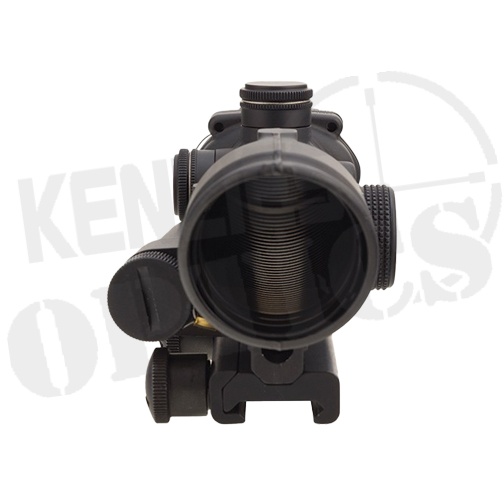

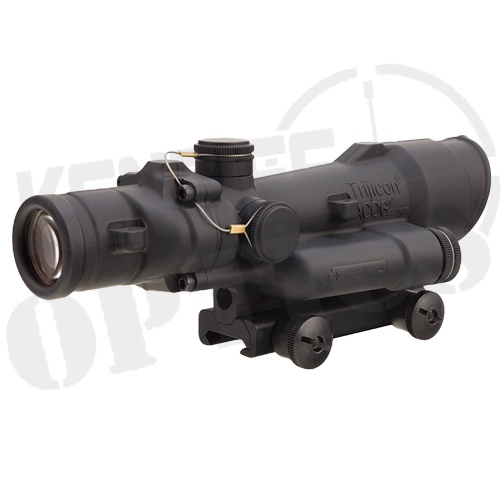

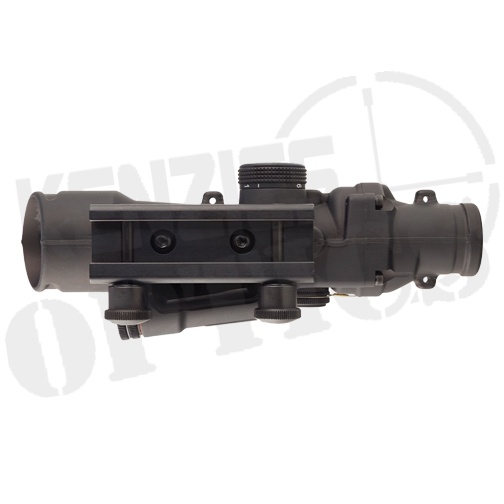

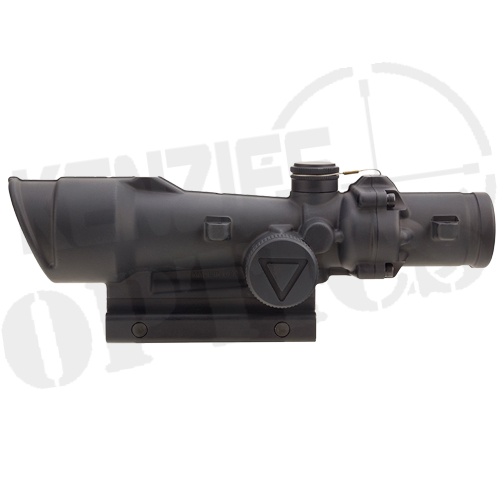

Trijicon ACOG 3.5×35 LED Scope
The Trijicon ACOG 3.5×35 LED Scope allows the users to select from six adjustable brightness levels with an “off” between each setting, allowing the user to determine how much to illuminate the reticle. It is powered by a single AA battery, the LED ACOG can run for over 12,000 continuous hours on setting #4. Like all Trijicon ACOGs the 3.5×35 LED is designed with forged 7075-T6 aircraft grade aluminum alloy housing, that makes it practically indestructible.
Trijicon ACOG 3.5×35 LED Scope Features
Always On, Always Ready
Most ACOG models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.
Take Control
Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5×35 LED and 4×32 LED models both offer six adjustable brightness settings.
Rugged, Reliable Housing Design
Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.
Both Eyes Open Design
“Both eyes open” shooting using Trijicon’s Bindon Aiming Concept (BAC) feature allows for improved situational awareness.
Outstanding Clarity
The quality of the glass and multi coated lenses maximize light gathering capabilities and clear field of view with zero distortion.
Exact Target Distances & Holds
Most ACOG models feature a bullet drop compensating and target ranging reticle for decisive aiming.
Combat Proven
No other magnified optic has been used more in combat than the ACOG.
Shock Resistant
Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.
Waterproof
Exceptional waterproof performance that exceeds military standards. Dry nitrogen filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry nitrogen filled housing that mitigates fogging.
Specifications |
||||||
Length x Width x Height | 8 in x 3 in x 2.6 in
(203.2mm x 76.2mm x 66.04mm) |
|||||
Weight | 16.8 oz.
(476.27g) |
|||||
Magnification | 3.5x | |||||
Objective Size | 35mm | |||||

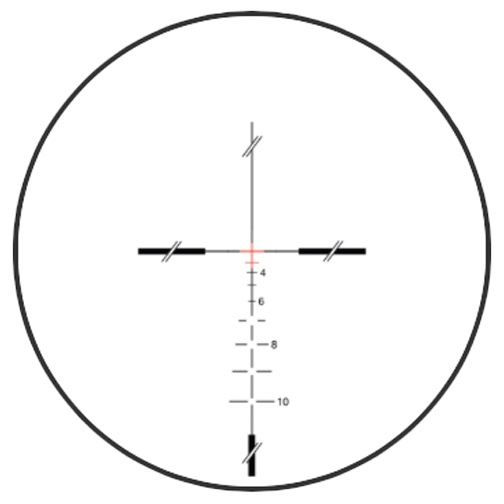

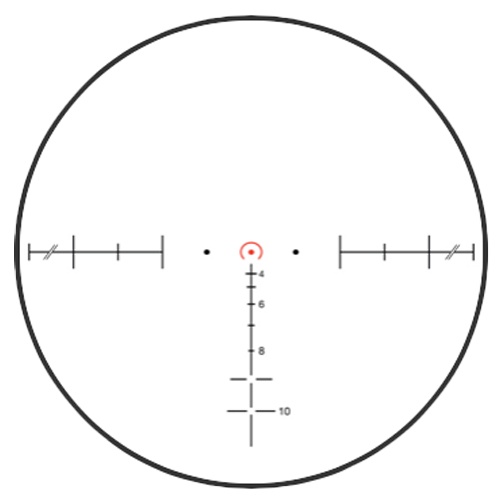

Reticle Pattern | Chevron
Crosshair Horseshoe Dot |
|||||
Day Reticle Color | Red
Green |
|||||
Night Reticle Color | Red
Green |
|||||
Bullet Drop Compensating (BDC) | Yes | |||||
Caliber | .223 / 5.56
.308 / 7.62 |
|||||
Bindon Aiming Concept™ (BAC) | Yes | |||||
Illumination Source | LED | |||||
Illumination Settings | 6 | |||||
Power Source | AA Lithium or Alkaline Battery | |||||
Battery Life | Over 12,000 hours on setting #4 using supplied alkaline battery at 21 deg C (70 deg F) | |||||
Adjustment | 3 clicks per in. @ 100 yds | |||||
Adjustment Range | 40 MOA Total Travel | |||||
Eye Relief | 2.4 in.
(60.96mm) |
|||||
Exit Pupil | 0.39 in.
(9.91mm) |
|||||
Field of View (degrees) | 5.5° | |||||
Field of View (feet) | 28.9 ft. @ 100 yds. (9.63m @ 100m) | |||||
Mount | Flattop Thumbscrew Mount (TA51) | |||||
Housing Material | Forged Aluminum | |||||
Finish | Matte Black |
