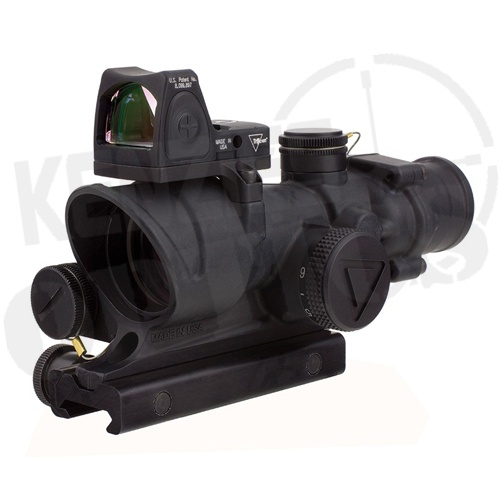

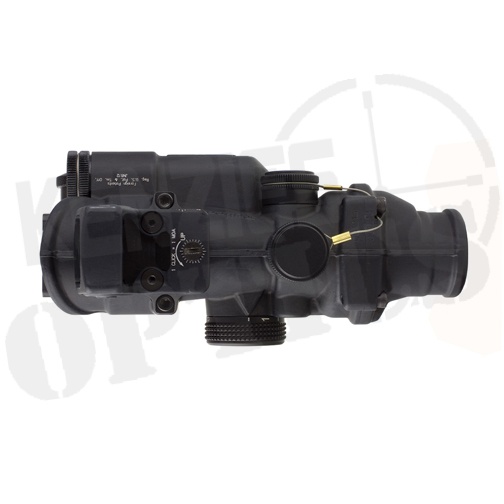

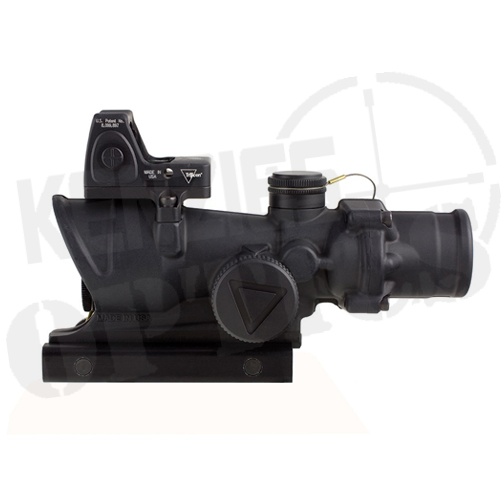

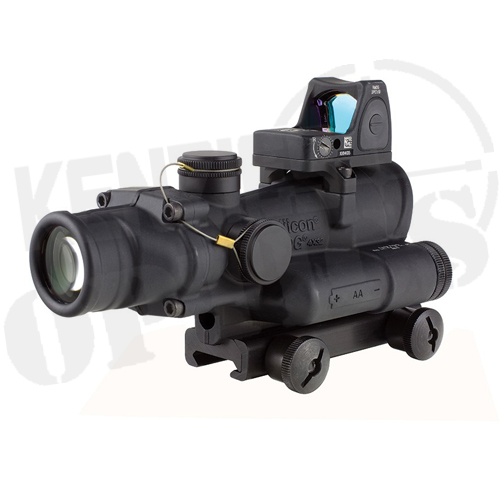

Trijicon ACOG 4×32 LED Scope / 3.25 MOA RMR Type 2 Combo

The Trijicon ACOG 4×32 LED Scope / 3.25 MOA RMR Type 2 Combo is a dual sighting system that gives the user precise aiming capabilities provided by the ACOG and the quick target acquisition of the RMR. The ACOG features six adjustable brightness levels with an “off” between each setting, allowing the operator to determine how much to illuminate the reticle, even in transitional lighting. It is powered by a single AA battery, and can run for over 12,000 continuous hours (on setting #4).

Like all ACOG models, it is forged from rugged 7075-T6 aircraft aluminum, resulting in nearly indestructible sighting system and electronics that offer outstanding reliability. Users can select multiple bullet drop compensating and ranging reticle options. Fully night vision device compatible, the 4×32 LED ACOG is also compatible with most other 4×32 ACOG accessories available. The ACOG is paired with a 3.25 MOA Adjustable RMR Type 2 LED red dot sight (RM06). The 4×32 LED ACOG body has been optimized by moving the RMR Type 2 mount forward to maximize RMR Type 2 performance in conjunction with the ACOG.

Trijicon ACOG 4×32 LED Scope / 3.25 MOA RMR Type 2 Combo Features

Always On, Always Ready

Most ACOG models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.

Take Control

Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5×35 LED and 4×32 LED models both offer six adjustable brightness settings.

Rugged, Reliable Housing Design

Fixed power design allows for minimal moving parts to create a nearly indestructible sighting system.

“Both Eyes Open” Design

“Both eyes open” shooting using Trijicon’s Bindon Aiming Concept™ (BAC) feature allows for improved situational awareness.

Outstanding Clarity

The quality of the glass and multi coated lenses maximize light gathering capabilities and clear field of view with zero distortion.

Exact Target Distances & Holds

Most ACOG models feature a bullet drop compensating and target ranging reticle for decisive aiming.

Combat Proven

No other magnified optic has been used more in combat than the ACOG.

Shock Resistant

Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.

Waterproof

Exceptional waterproof performance that exceeds military standards. Dry nitrogen filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry nitrogen filled housing that mitigates fogging.

Spec Sheet

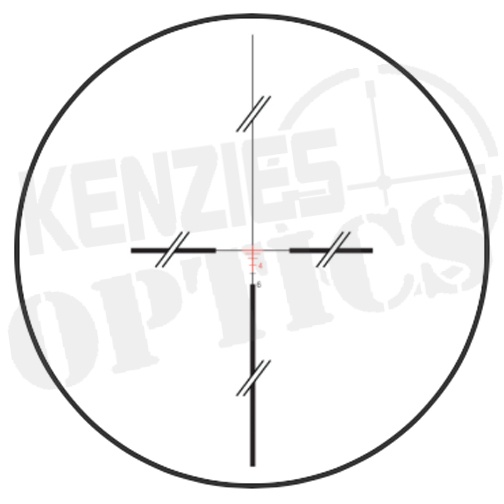

Reticle Dimensions


Specifications

Length x Width x Height 6 in x 2.9 in x 2.5 in (152.4mm x 73.66mm x 63.5mm)
Weight 19.3 oz. (547.15g)
Magnification 4x
Objective Size 32mm
Reticle Pattern Crosshair
Day Reticle Color Red
Night Reticle Color Red
Bullet Drop Compensating (BDC) Yes
Caliber 0.223
Bindon Aiming Concept™ (BAC) Yes
Illumination Source LED
Power Source AA Lithium or Alkaline Battery
Battery Life Over 12,000 hours on setting #4 using supplied alkaline battery at 21 deg C (70 deg F)
Adjustment 2 clicks per inch @100 yards
Eye Relief 1.5 in. (38.1mm)
Exit Pupil 0.32 in. (8.13mm)
Field of View (degrees)
Field of View (feet) 36.8 ft. @ 100 yds. (12.27m @ 100m)
Mount Flattop Thumbscrew Mount (TA51)
Housing Material Forged Aluminum
