Trijicon ACOG TA47 2×20 Scope
The Trijicon ACOG TA47 is a fixed power optic with 2x magnification and a dual illuminated reticle. It is a step up in magnification and is well suited to limited space on a weapon like the UZI, H&K, or MP-5 9 mm sub machine guns. It further increases the ability to detect and identify targets out to 150 to 200 meters.
Trijicon ACOG TA47 2×20 Features
Tritium/fiber optic illuminated reticle
Choice of low or high profile
Fixed power design allows for minimal moving parts to create a nearly indestructible sighting system.
“Both eyes open” shooting using The Bindon Aiming Concept (BAC) allows for improved situational awareness.
The quality of the glass and multi coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.
No other magnified optic has been used more in combat than the ACOG.
Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.
Exceptional waterproof performance that exceeds military standards. Dry nitrogen filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry nitrogen filled housing that mitigates fogging.
|Length x Width x Height||5.3 in x 1.6 in x 2.1 in|
|Objective Size||20 mm|

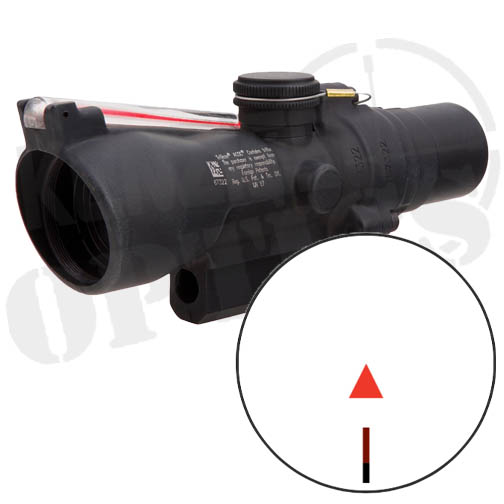

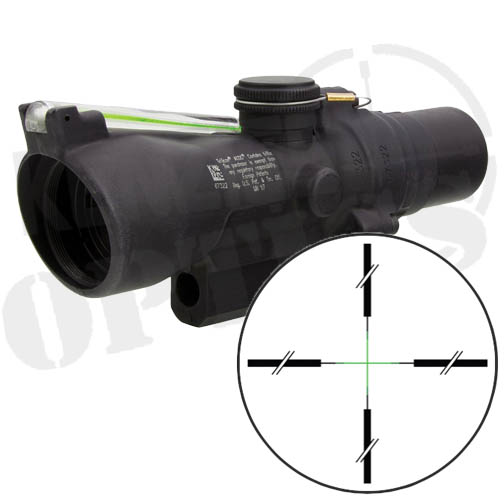

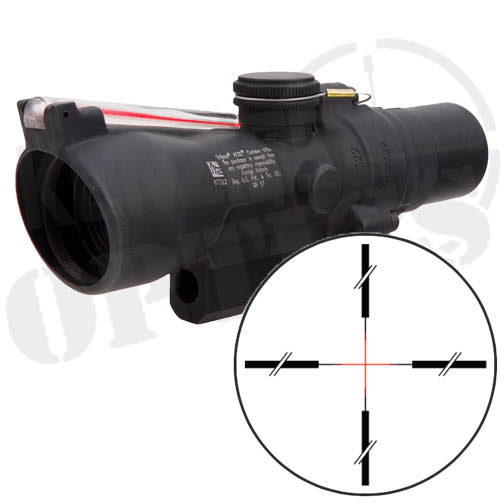

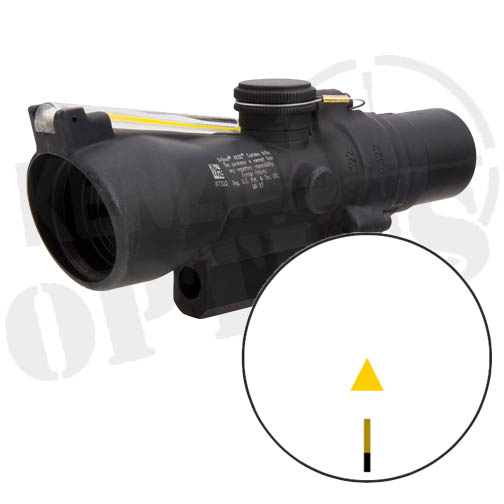

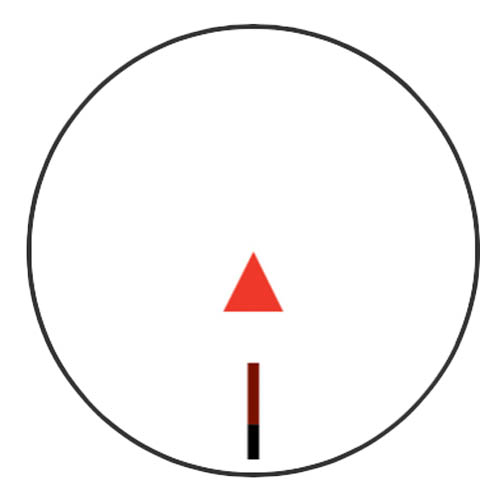

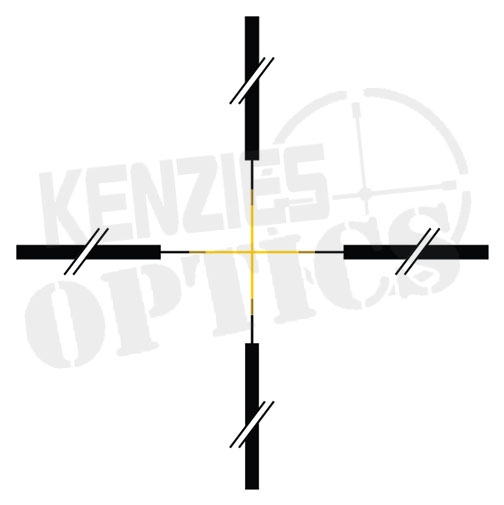

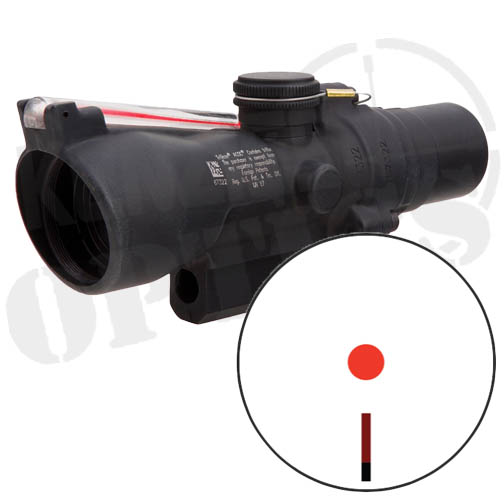

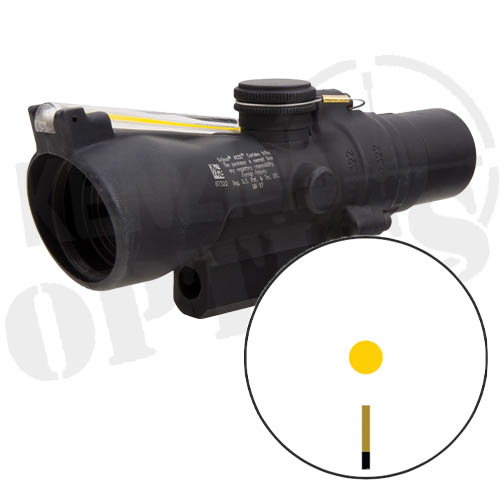

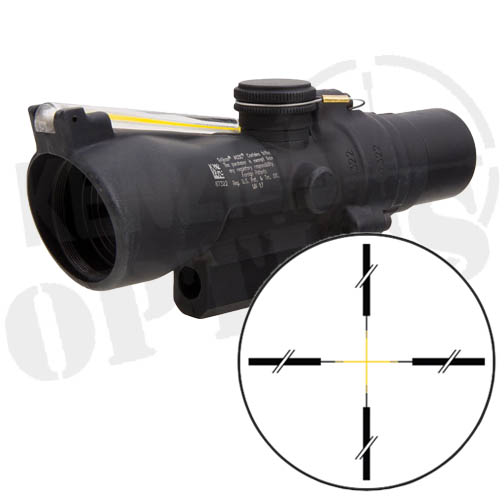

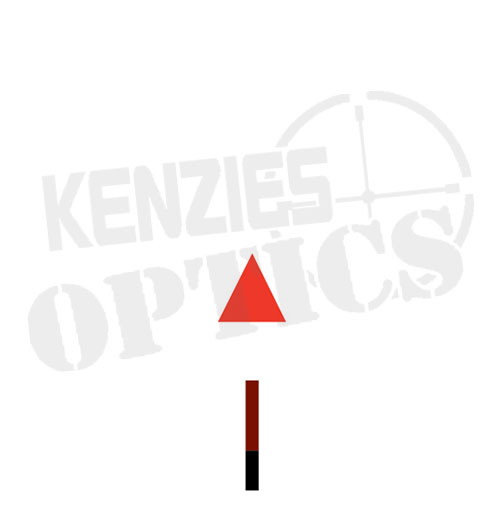

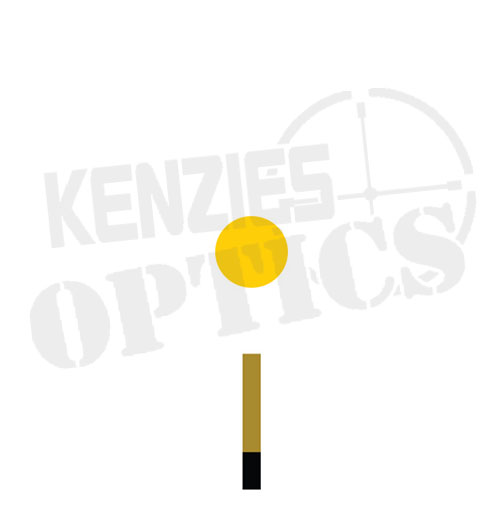

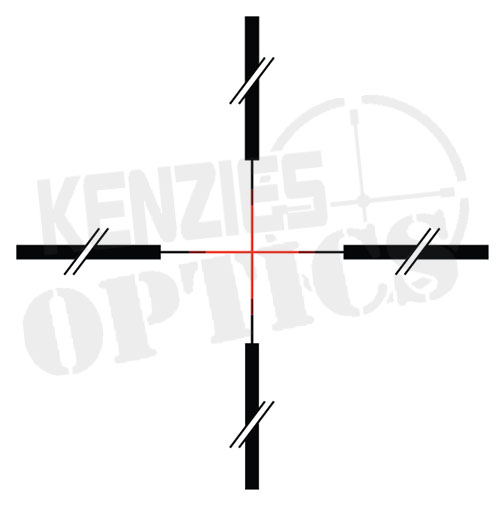

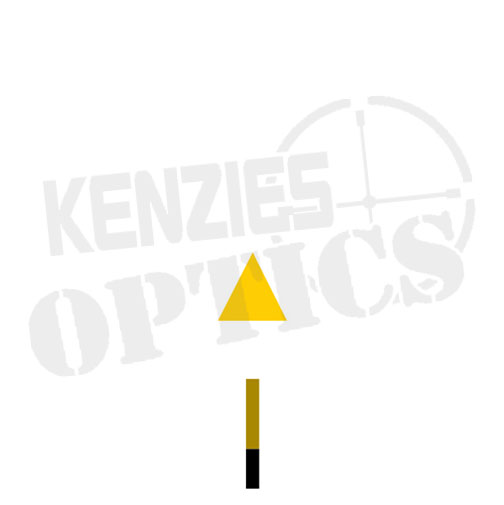

|Reticle Pattern||9.2 MOA Triangle, 6.9MOA Dot or Crosshair,|
|Day Reticle Color||Amber, Green, or Red|
|Night Reticle Color||Amber, Green, or Red|
|Bullet Drop Compensating||No|
|Bindon Aiming Concept||Yes|
|Illumination Source||Fiber Optics and Tritium|
|Power Source||Fiber Optics and Tritium|
|Adjustment||2 clicks per in. @100 yards|
|Eye Relief||2.1 in|
|Exit Pupil||0.39 in|
|Field of View||5.6°|
|Field of View||29.31 ft. @ 100 yds.|
|Mount||M16/AR15 Carry Handle Base|
|Housing Material||Forged Aluminum|
