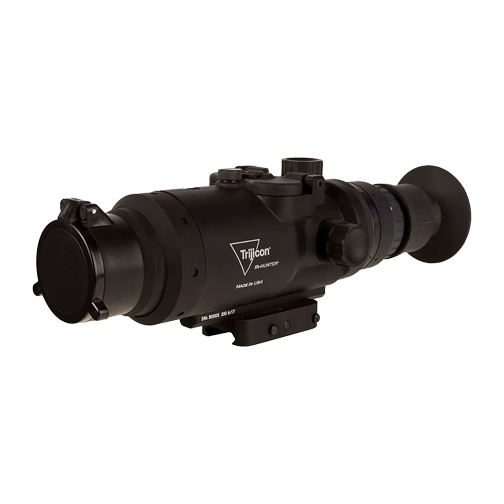

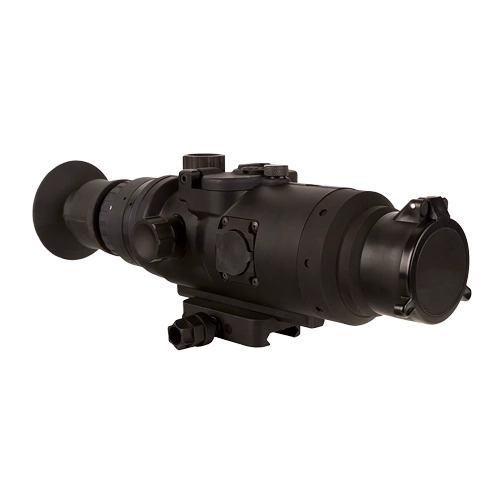

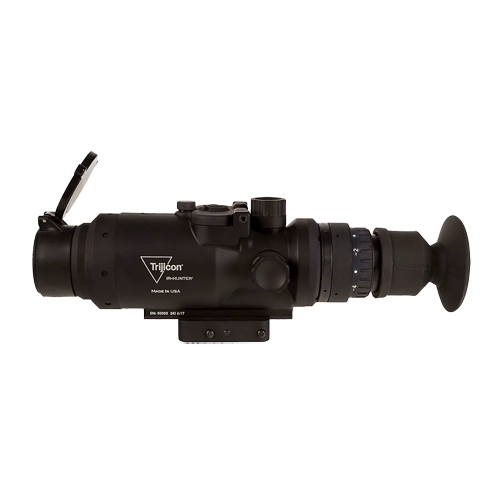

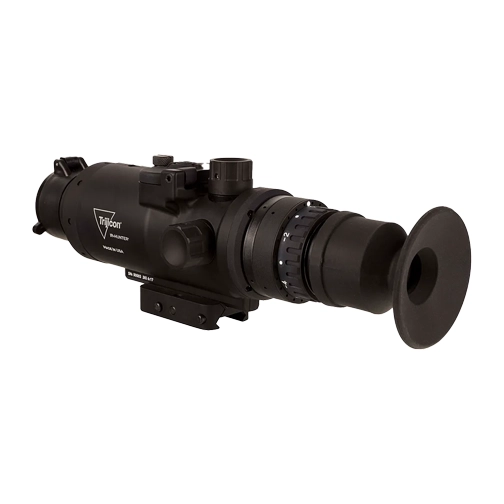

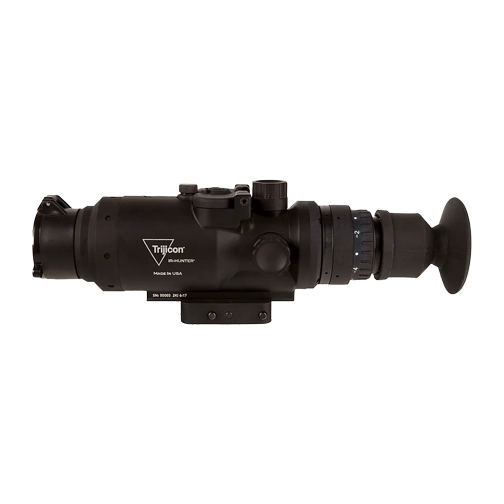

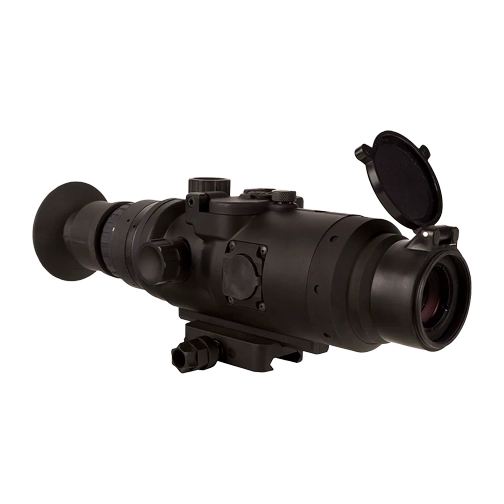

Trijicon IR Hunter 24mm Thermal Scope
The Trijicon IR Hunter 24mm Thermal Scope was designed to be a user friendly, rugged and powerful mini thermal scope. The heart of the system is a state of the art 640×480, 12 micron thermal image sensor that provides superior image quality in any lighting condition. Redesigned electronic hardware and a new digital turret controls improve system response and enable the use of external USB power sources and digital video recorders. It’s engineered to last and built in the USA.
Specifications |
||||||
| Alaska to Africa Temperature Tested | To ensure each family of scopes is ready for whatever the users put them through, Trijicon perform “Alaska to Africa” temperature shock tests with temps from -20°F to 140°F | |||||
| Solid Zero Tested | Their scopes are designed to hold their zero giving you the precision you need. Every model is subjected to 5,000 consecutive rounds, confirming no reticle shift has occurred. | |||||
| Drop Tested | Trijicon doesn’t believe every drop should be followed by a warranty claim. Each scope design is put through a drop to check for durability. | |||||
| Shock & Vibration Tested | All scope models are tested to withstand recoil and vibrational stresses without malfunction, so it can take a beating before, during, and after use. | |||||
| Immersion Tested | All models are immersion tested, and every scope is dry nitrogen filled to eliminate internal fogging. | |||||
Trijicon IR Hunter 24mm Features
Intuitive Turret Controls
Simple,improved rotary knobs for easy manipulation of menu options and faster system response.
Expanded Functionality
New USB-C connector allows the use of external battery packs, and download of analog and digital video with available adapter with compatible DVRs
Top Loading Battery Compartment
Redesigned internal battery compartment for a slimmer look and increased durability
Mounting Versatility
New quick release mount featuring Trijicon Q-LOC Technology provides multiple mounting locations with the ability to affix the scope rapidly and reliably in the dark
Improved Reticle Options
User selectable reticle choices include the classic crosshair, and new MRAD, MOA, .223 REM, .308 WIN, and 300BLK BDC
640×480 Thermal Sensor
Offers clear, crisp, imagery through smoke, dust, and complete darkness.
12 Micron Technology
Smaller image sensors allow for decreased size and weight and increased durability.
Made in the USA
Engineered, designed and manufactured in the USA.
Specifications |
||||||
| Length x Width x Height | 9.6 in x 3.0 in x 3.2 in
(243.84mm x 76.2mm x 81.28mm) |
|||||
| Weight | 28.4 oz.
(805.13g) |
|||||
| Magnification | 1.2x | |||||
| Objective Size | 24mm | |||||
| Power Source | CR 123 or External USB | |||||
| Battery Life | 2 hours per CR 123 | |||||
| Field of View (degrees) | 18 Horizontal° | |||||
| Diopter Range | -6 / +2 | |||||
| Housing Material | Aluminum | |||||
| Submersion Depth | 3.28 ft.
(1m) |
|||||
| Operating Temperature | -25.6F to 122F
(-32c to 50c) |
|||||
| Sensor Type | VOx | |||||
| Digital Zoom | 8X | |||||
| Sensor Resolution | 640×480 | |||||
| Sensor Pixel Pitch | 12 µm | |||||
| Focal Length | 24 mm | |||||
| Frame Rate | 30 Hz / 60 Hz | |||||
| Video Output | RS-170 | |||||
